Telecentric lenses

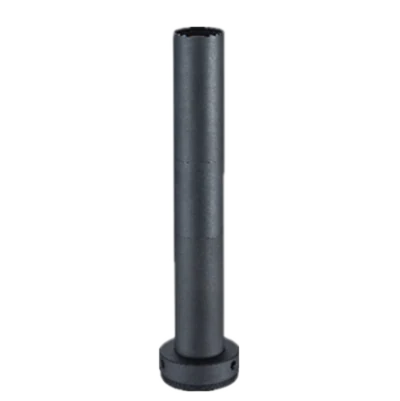

Object-Side Telecentric Lens, 3x, 110 mm WD, 1/2" (LS-HY-3-110)
Model LS-HY-3-110
- Magnification3
- MountC-mount
- Sensor1/2"
- Working distance110 mm
- ApertureF9
$589.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 3x, 110 mm WD, 1/2". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HY-3-110 |
|---|
Optics
| Magnification | 3 |
|---|---|
| Working distance | 110 mm |
| F-number | F9 |
| Image size | 1/2" |
| Depth of field | 0.55 mm |
| Object-side resolution | 20.1 μm |
| Object-side telecentricity | ≤ 0.01° |
| Distortion | ≤ 0.1% |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

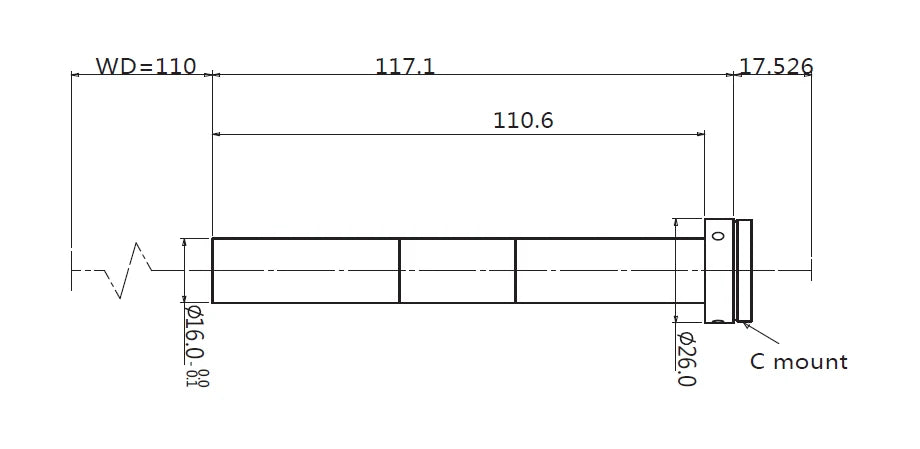

| Dimension | 117.1 mm × Φ16 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the H Series Object-Side Telecentric lenses series
See all 40 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HY-3-110C | 3x, 110 mm WD, 1/2" | $589.00 | 5 in stock | View |
| LS-HY-4-110 | 4x, 110 mm WD, 1/2" | $589.00 | 3 in stock | View |
| LS-HY-4-110C | 4x, 110 mm WD, 1/2" | $589.00 | 2 in stock | View |
| LS-HY-6-45C | 6x, 45 mm WD, 1/2" | $589.00 | 2 in stock | View |
| LS-HY-4-200C | 4x, 200 mm WD, 1/2" | $589.00 | 3 in stock | View |
| LS-HY-2-250 | 2x, 250 mm WD, 1/3" | $609.00 | 3 in stock | View |
| LS-HY-2-110 | 2x, 110 mm WD, 1/2" | $609.00 | 4 in stock | View |
| LS-HY-2-110C | 2x, 110 mm WD, 1/2" | $609.00 | 3 in stock | View |
| LS-HY-2-150 | 2x, 150 mm WD, 1/2" | $619.00 | 2 in stock | View |
| LS-HY-15-110 | 1.5x, 110 mm WD, 1/2" | $629.00 | 3 in stock | View |
| LS-HY-15-110C | 1.5x, 110 mm WD, 1/2" | $629.00 | 3 in stock | View |
| LS-HY-2-65C | 2x, 65 mm WD, 1/2" | $629.00 | 4 in stock | View |
| LS-HY-15-65 | 1.5x, 65 mm WD, 1/2" | $649.00 | 5 in stock | View |
| LS-HY-15-65C | 1.5x, 65 mm WD, 1/2" | $649.00 | 2 in stock | View |
| LS-HY-1-180C | 1x, 180 mm WD, 1/2" | $689.00 | 5 in stock | View |
| LS-HY-1-110 | 1x, 113 mm WD, 1/2" | $689.00 | 5 in stock | View |
| LS-HY-1-150 | 1x, 150 mm WD, 1/2" | $689.00 | 2 in stock | View |
| LS-HY-1-113C | 1x, 113 mm WD, 1/2" | $689.00 | 4 in stock | View |
| LS-HY-1-65CN | 1x, 65 mm WD, 1/2" | $709.00 | 3 in stock | View |
| LS-HY-1-65N | 1x, 65 mm WD, 1/2" | $709.00 | 5 in stock | View |
| LS-HY-08-150C | 0.8x, 150 mm WD, 1/2" | $729.00 | 3 in stock | View |
| LS-HY-08-150 | 0.8x, 150 mm WD, 1/2" | $729.00 | 2 in stock | View |
| LS-HY-08-130 | 0.8x, 130 mm WD, 1/2" | $739.00 | 2 in stock | View |
| LS-HY-08-130C | 0.8x, 130 mm WD, 1/2" | $739.00 | 2 in stock | View |
