Ring lights
60 mm OD LED Ring Light (LS-HLR-60-60)
Model LS-HLR-60-60
- ColourRed, Green, Blue, White
- Voltage24 V
- Angle60°
- TypeStandard
$109.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
60 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HLR-60-60 |
|---|---|
| Angle (°) | 60 |
| OD x ID x H (mm) | 60x33.5x19.5 |
| Model code | LS-HLR-<outer diameter>-<angle>-<color>, e.g. LS-HLR-32-70-W |
Light
| LED rows | 2 |
|---|---|
| Colours | Red, Green, Blue, White |
| Illumination chart | LS-HLR-50-75: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 2.1 |
| Power G/B/W (W) | 2.5 |
Mechanical
| Mounting (all drawn models) | 4-M3 tapped holes, depth 4, on a P.C.D. (value per model) |
|---|---|
| Shipping weight (estimated) | 0.20 kg |

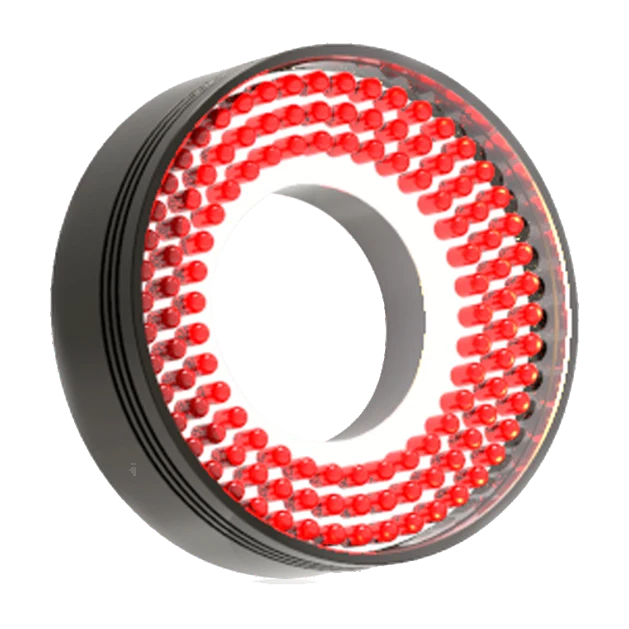

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
no dimension drawing for this model in the
Other models in the Ring light (HLR) series
See all 47 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HLR-32-70 | 32 mm OD | $69.00 | 14 in stock | View |
| LS-HLR-35-90 | 35 mm OD | $69.00 | 13 in stock | View |
| LS-HLR-42-65 | 42 mm OD | $79.00 | 16 in stock | View |
| LS-HLR-50-45 | 50 mm OD | $89.00 | 11 in stock | View |
| LS-HLR-50-60 | 50 mm OD | $89.00 | 13 in stock | View |
| LS-HLR-50-75 | 50 mm OD | $89.00 | 9 in stock | View |
| LS-HLR-50-90 | 50 mm OD | $89.00 | 13 in stock | View |
| LS-HLR-48-30 | 48 mm OD | $89.00 | 12 in stock | View |
| LS-HLR-50-30 | 50 mm OD | $89.00 | 15 in stock | View |
| LS-HLR-66-60 | 60 mm OD | $109.00 | 13 in stock | View |
| LS-HLR-70-45 | 70 mm OD | $119.00 | 16 in stock | View |
| LS-HLR-70-60 | 70 mm OD | $119.00 | 13 in stock | View |
| LS-HLR-70-90 | 70 mm OD | $119.00 | 13 in stock | View |
| LS-HLR-72-75 | 72 mm OD | $119.00 | 16 in stock | View |
| LS-HLR-66-30 | 66 mm OD | $119.00 | 17 in stock | View |
| LS-HLR-74-60 | 74 mm OD | $129.00 | 10 in stock | View |
| LS-HLR-74-30 | 74 mm OD | $129.00 | 13 in stock | View |
| LS-HLR-75-00 | 75 mm OD | $129.00 | 14 in stock | View |
| LS-HLR-90-45 | 90 mm OD | $149.00 | 14 in stock | View |
| LS-HLR-90-70 | 90 mm OD | $149.00 | 10 in stock | View |
| LS-HLR-90-80 | 90 mm OD | $149.00 | 12 in stock | View |
| LS-HLR-90-15 | 90 mm OD | $149.00 | 11 in stock | View |
| LS-HLR-100-75 | 100 mm OD | $159.00 | 16 in stock | View |
| LS-HLR-100-90 | 100 mm OD | $159.00 | 11 in stock | View |
