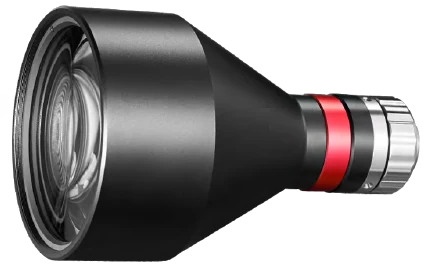

Bi-Telecentric Lens, 0.141x, 158 mm WD, 1/1.8" (LS-HBT-0141-158)
Model LS-HBT-0141-158
- Magnification0.141
- MountC-mount
- Sensor1/1.8"
- Working distance158 ± 3 mm
- ApertureF4.6
$1,649.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.22 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-Telecentric Lens, 0.141x, 158 mm WD, 1/1.8". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HBT-0141-158 |
|---|
Optics
| Magnification | 0.141 |
|---|---|
| Working distance | 158 ± 3 mm |
| F-number | F4.6 |
| Image size | 1/1.8" |
| Depth of field | ±22.3 mm @F11 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 18.2 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Not supported |
| Optical distortion | ≤ 0.1% |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |

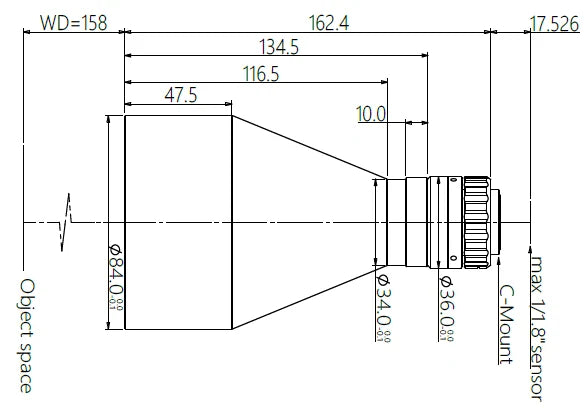

Mechanical
| Dimension | 162.4 mm × Φ84 mm |
|---|---|
| Weight | 800 g |
| Shipping weight (estimated) | 1.22 kg |
