Telecentric lenses

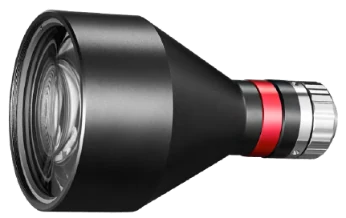

Bi-Telecentric Lens, 0.1x, 178 mm WD, 1/2.5" (LS-HBT-0100-178)
Model LS-HBT-0100-178
- Magnification0.1
- MountC-mount
- Sensor1/2.5"
- Working distance178 ± 3 mm
- ApertureF4.2
$1,789.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-Telecentric Lens, 0.1x, 178 mm WD, 1/2.5". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HBT-0100-178 |
|---|
Optics
| Magnification | 0.1 |
|---|---|
| Working distance | 178 ± 3 mm |
| F-number | F4.2 |
| Image size | 1/2.5" |
| Depth of field | ±44 mm @F11 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 25.7 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |

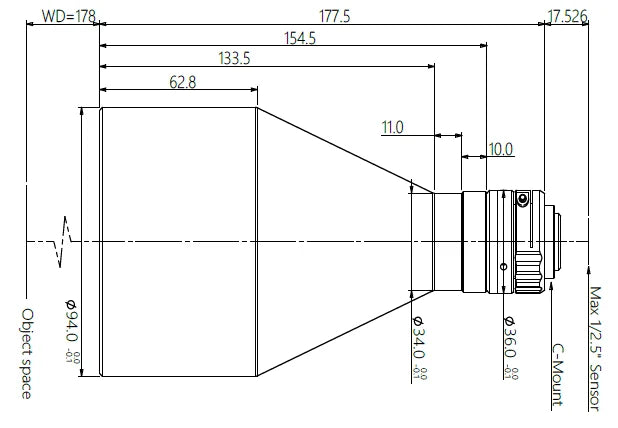

Mechanical
| Dimension | 177.5 mm × Φ94 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the H Series Bi-Telecentric lenses series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HBT-0381-40 | 0.381x, 40 mm WD, 1/1.8" | $1,029.00 | 2 in stock | View |
| LS-HBT-0214-118 | 0.214x, 118 mm WD, 1/1.8" | $1,259.00 | 5 in stock | View |
| LS-HBT-0171-118 | 0.171x, 118 mm WD, 1/2.5" | $1,279.00 | 2 in stock | View |
| LS-HBT-019-118 | 0.19x, 118 mm WD, 1/2" | $1,379.00 | 2 in stock | View |
| LS-HBT-0141-158 | 0.141x, 158 mm WD, 1/1.8" | $1,649.00 | 3 in stock | View |
| LS-HBT-0113-158 | 0.113x, 158 mm WD, 1/2.5" | $1,649.00 | 4 in stock | View |
| LS-HBT-0125-158 | 0.125x, 158 mm WD, 1/2" | $1,649.00 | 2 in stock | View |
| LS-HBT-009-238 | 0.09x, 238 mm WD, 1/1.8" | $2,269.00 | 5 in stock | View |
