Representative photo of this series
Shadowless lights
Shadowless light source, 0.8 W red / 1.2 W white (LS-SDL-0043)
Model LS-SDL-0043-R
- ColourRed, Green, Blue, White
- Wavelength red620-630 nm
- Wavelength green520-530 nm
- Wavelength blue465-475 nm
- Lowest power R of the 5 models in its series: 0.8 W
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-SDL-0043: overall OD 48 mm, overall H 18.5 mm, power R 0.8 W.
Small-size shadowless ring light; diffuse reflective material conducts the light for uniform illumination.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0043 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Overall OD (mm) | 48 |
| Overall ID (mm) | 10 |
| Overall H (mm) | 18.5 |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-10000 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 0.8 |
| Power G/B/W (W) | 1.2 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Shipping weight | 0.20 kg |
|---|
Engineering data
Drive and fit the LS-SDL-0043
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
20 W per channel at 24 V for this 1.2 W light
4-channel 24 V analog LED light controller
LS-CTL-0461
- Channels 4
- Output 24 V
$150.00
Ships in 3-4 weeks
15 W per channel at 24 V for this 1.2 W light
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
$165.00
Ships in 3-4 weeks
10 W per channel at 24 V for this 1.2 W light
24 W per channel at 24 V for this 1.2 W light
Multi-channel sequencing light controller, 8 ch, 120 W
LS-CTL-0579
- Channels 8
- Output DC 24 V
$399.00
Ships in 2-3 weeks
15 W per channel at 24 V for this 1.2 W light

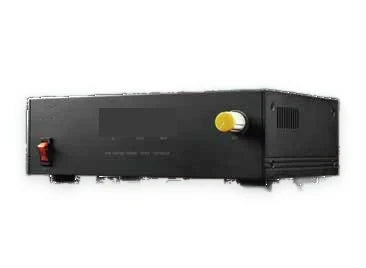

16 channel digital LED light controller, 16 ch, 200 W
LS-CTL-0554
- Channels 16
- Output 24 V
$789.00
Ships in 2-3 weeks
12.5 W per channel at 24 V for this 1.2 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-SDL-0046, a model of this series
Textiles, film and web
Interlocking zipper-tooth appearance
Inspect the tooth pattern against real fabric variation before testing a defect rule.Light in sourceLS-SDL-0046 · whiteExplore the study
Set up with the LS-SDL-0045, a model of this series
Metal parts and machining
Cutting-bit end-face appearance
Prove the local end-face signal before assigning a wear or damage threshold.Light in sourceLS-SDL-0045 · blueExplore the study
Set up with the LS-SDL-0017, the same type of part
Glass, displays and optics
Screen-film creases and local deformation
Inspect the change in reflection, not just the film colour.Test lightLS-SDL-0017, whiteExplore the study
Other models in the Shadowless light source (LS-SDL-S08) series
See all 5 models- Lowest power R of the 5 models in its series: 0.8 W
- Lowest power G/B/W of the 5 models in its series: 1.2 W
- Smallest overall OD of the 5 models in its series: 48 mm
| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0043This model | Red, Green, Blue, White · 620-630 nm | $179.00 | Ships in 2-3 weeks | |
| LS-SDL-0044 | Red, Green, Blue, White · 620-630 nm | $219.00 | Ships in 2-3 weeks | View |
| LS-SDL-0045 | Red, Green, Blue, White · 620-630 nm | $259.00 | Ships in 2-3 weeks | View |
| LS-SDL-0046 | Red, Green, Blue, White · 620-630 nm | $429.00 | Ships in 2-3 weeks | View |
| LS-SDL-0047 | Red, Green, Blue, White · 620-630 nm | $629.00 | Ships in 2-3 weeks | View |
