Machine vision lenses

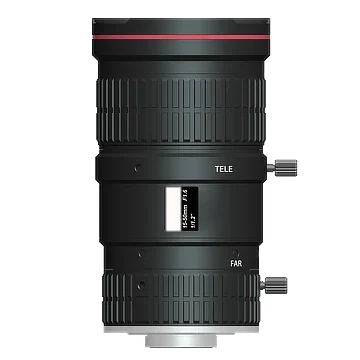

15-50mm, F1.6, 1/1.2", 12 MP, CS-mount lens (LS-FFL-1713)

Model LS-FFL-1713

Focal length15(W) ~ 50(T) mm
MountCS-mount
Sensor1/1.2"
ApertureF1.6

$329.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

15-50mm, F1.6, 1/1.2", 12 MP, CS-mount lens. Large aperture F1.6 Zoom range 15–50 mm

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1713
Minimum object distance	W:1 m; T:5 m
Zoom control	Manual

Optics

Focal length	15(W) ~ 50(T) mm
F-number	F1.6
Image size	Φ13 mm(1/1.2'')
Distortion	W:-11%; T:-2.2%
Field of view	W:D(12.78 mm):49.7°, H(11.14 mm):42.75°, V(6.26 mm):23.36°; T:D(12.78 mm):15.8°, H(11.14 mm):13.7°, V(6.26mm):7.7°
Iris control	Fixed
Focus control	Manual

Interfaces and I/O

Connector type	CS-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

Mechanical

Flange back length	12.5 mm
Dimension	Φ63 × 111.8 mm
Shipping weight (estimated)	0.31 kg

Other models in the Zoom Lens Series (LS-FFL-S171) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1711	12(W)~ 36(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1710	10(W)~ 50(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1712	12(W)~ 36(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1714	5.7(W)~ 21(T)mm · CS-mount	$329.00 Quote	Ships in 2-3 weeks	View
LS-FFL-1709	5-28 mm · C-mount	$329.00	Ships in 2-3 weeks	View
