Machine vision lenses

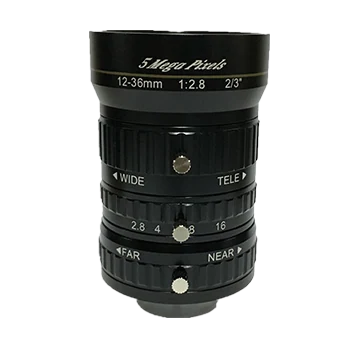

12-36mm, F2.8, 2/3", 5 MP, C-mount lens (LS-FFL-1711)

Model LS-FFL-1711

Focal length12(W)~ 36(T)mm
MountC-mount
Sensor2/3"
ApertureF2.8 ~ F16

$329.00

Ships in 2-3 weeks

0.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

12-36mm, F2.8, 2/3", 5 MP, C-mount lens. High resolution, high contrast Low distortion for improved measurement accuracy

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1711
Minimum object distance	W:0.15 m; T:0.45 m
Zoom control	Manual

Optics

Focal length	12(W)~ 36(T)mm
F-number	F2.8 ~ F16
Image size	Φ11 mm(2/3'')
Distortion	W:-3.4%; T:-1.4%
Field of view	W:D(11 mm):50.8°, H(8.8 mm):41.3°, V(6.6 mm):31.3°; T:D(11 mm):17.2°, H(8.8 mm):13.8°, V(6.6 mm):10.5°
Iris control	Manual
Focus control	Manual
Filter thread	M40.5×0.5

Interfaces and I/O

Connector type	C-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

Mechanical

Flange back length	17.526 mm
Dimension	Φ45×63.9 mm
Weight	188 g
Shipping weight (estimated)	0.36 kg

Other models in the Zoom Lens Series (LS-FFL-S171) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1713	15(W) ~ 50(T) mm · CS-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1710	10(W)~ 50(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1712	12(W)~ 36(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1714	5.7(W)~ 21(T)mm · CS-mount	$329.00 Quote	Ships in 2-3 weeks	View
LS-FFL-1709	5-28 mm · C-mount	$329.00	Ships in 2-3 weeks	View
