Machine vision lenses

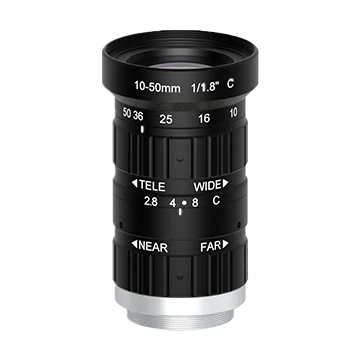

10-50mm, F2.8, 1/1.8", 6 MP, C-mount lens (LS-FFL-1710)

Model LS-FFL-1710

Focal length10(W)~ 50(T)mm
MountC-mount
Sensor1/1.8"
ApertureF2.8~C

$329.00

Ships in 2-3 weeks

0.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

10-50mm, F2.8, 1/1.8", 6 MP, C-mount lens. High resolution with high overall image sharpness Wide focus range covering 10 to 50 mm

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1710
Minimum object distance	W:0.1 m; T:0.3 m
Zoom control	Manual

Optics

Focal length	10(W)~ 50(T)mm
F-number	F2.8~C
Image size	Φ9 mm(1/1.8'')
Distortion	W:-1.3%; T:-0.09%
Field of view	W:D(8.96 mm):44.2°, H(7.37 mm):36.8°, V(4.92 mm):24.8°; T:D(8.96 mm):11.1°, H(7.37 mm):9.3°, V(4.92 mm):6.2°
Iris control	Manual
Focus control	Manual
Filter thread	M35.5×0.5

Interfaces and I/O

Connector type	C-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

Mechanical

Flange back length	17.526 mm
Dimension	Φ37×65 mm
Weight	125 g
Shipping weight (estimated)	0.28 kg

Other models in the Zoom Lens Series (LS-FFL-S171) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1713	15(W) ~ 50(T) mm · CS-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1711	12(W)~ 36(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1712	12(W)~ 36(T)mm · C-mount	$329.00	Ships in 2-3 weeks	View
LS-FFL-1714	5.7(W)~ 21(T)mm · CS-mount	$329.00 Quote	Ships in 2-3 weeks	View
LS-FFL-1709	5-28 mm · C-mount	$329.00	Ships in 2-3 weeks	View
