Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
10-60 mm zoom lens, 2/3", 2 MP, C-mount (LS-FFL-1701)
Model LS-FFL-1701
- Focal length10-60 mm
- MountC-mount
- Sensor2/3"
- ApertureManual
- Resolution2MP
- Field of view51° ~ 11°
$280.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
10-60 mm zoom lens for machine-vision cameras. Focal length 10-60 mm; covers sensors up to 2/3"; resolves 2 MP; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1701 |
|---|
Optics
| Focal length | 10-60 mm |
|---|---|
| Back focal length | 10.51 mm |
| Field of view | 51° ~ 11° |
| Distortion | <12~1% |
| Aperture | Manual |
| Focus | Manual |
| Filter thread | M49×0.75 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution | 2MP |
Light
| Wavelength range | 400-950 nm |
|---|
Environment and compliance
| Operating temperature | -10~+50° C |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Flange back length | 17.526 mm |

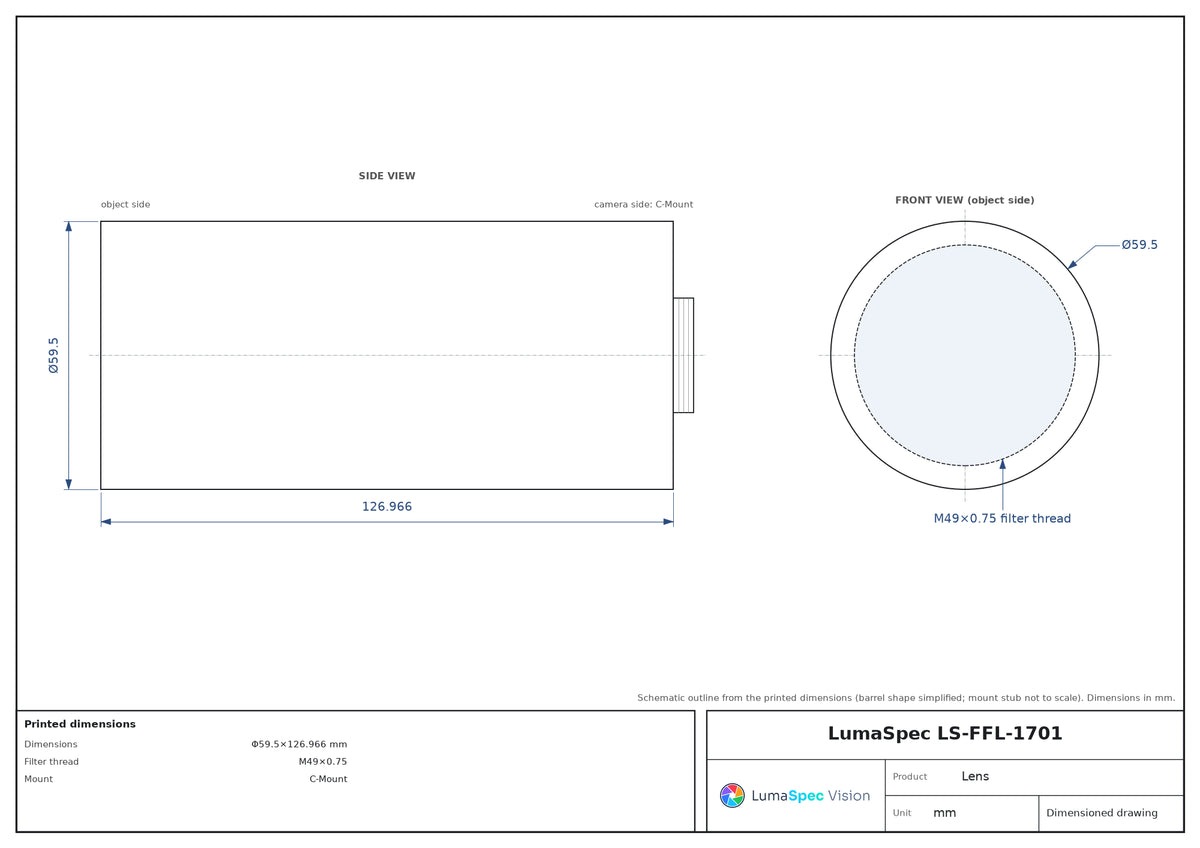

| Dimensions | Φ59.5×126.966 |
| Shipping weight | 1.00 kg |
Other models in the 2/3" zoom lenses (LS-FFL-S169) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1703 | 12 mm, 2/3", C-mount | $160.00 | Ships in 3-4 weeks | View |
| LS-FFL-1704 | 16 mm, 2/3", C-mount | $160.00 | Ships in 3-4 weeks | View |
| LS-FFL-1700 | 10 mm, 2/3" | $280.00 | Ships in 3-4 weeks | View |
| LS-FFL-1699 | 10 mm, 2/3", C-mount | $300.00 | Ships in 3-4 weeks | View |
| LS-FFL-1702 | 12 mm, 2/3", C-mount | $1,280.00 | Ships in 3-4 weeks | View |
