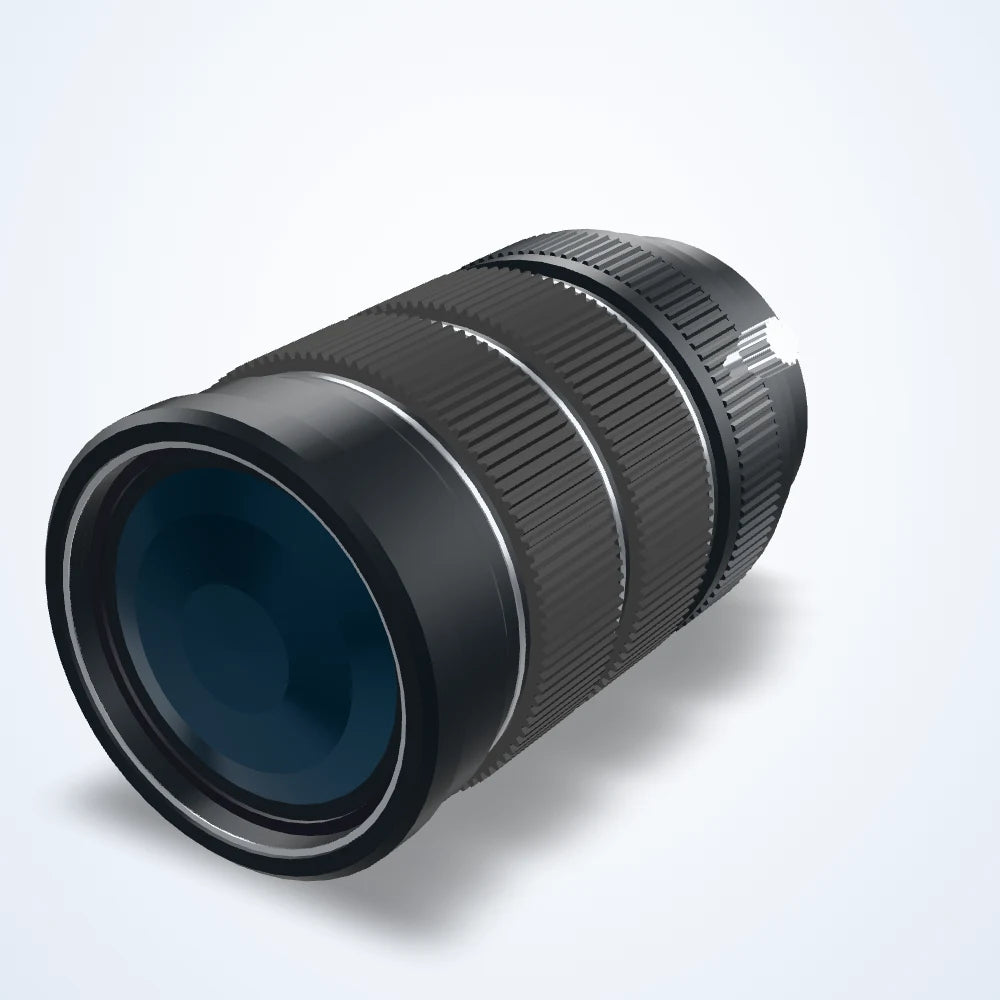

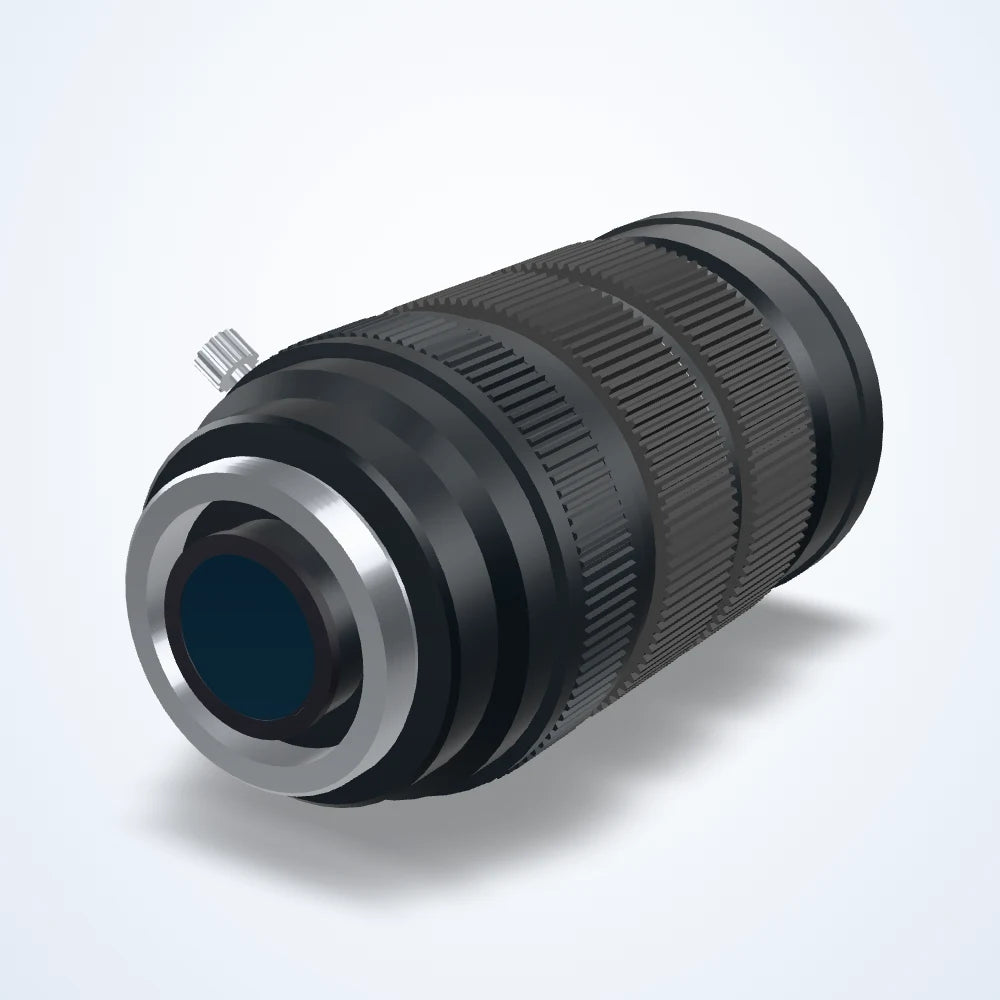

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
10-40 mm zoom lens, 2/3", 3 MP, C-mount (LS-FFL-1699)
Model LS-FFL-1699
- Focal length10-40 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.0
- Resolution3MP
$300.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
10-40 mm zoom lens for machine-vision cameras. Focal length 10-40 mm; covers sensors up to 2/3"; resolves 3 MP; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1699 |
|---|---|
| Min. object distance | 0.3m |
| Zoom | Manual |
Optics
| Focal length | 10-40 mm |
|---|---|
| Aperture | F2.0 |
| Back focal length | 10.39-11.50 mm |
| Field of view | W:47.5° /40.3° /30.8° T:16.7° /13.4° /10.1° |
| Distortion | -3.8% ~ 3.3% |
| Focus | Manual |
| Filter thread | M40.5×0.5 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution | 3MP |
Environment and compliance
| Operating temperature | -20 °C~ +60 °C |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Flange back length | 17.526 mm |
| Length | 87 |
| Dimensions | Φ44.5×71.07 mm |
| Shipping weight | 1.00 kg |
Other models in the 2/3" zoom lenses (LS-FFL-S169) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1703 | 12 mm, 2/3", C-mount | $160.00 | Ships in 3-4 weeks | View |
| LS-FFL-1704 | 16 mm, 2/3", C-mount | $160.00 | Ships in 3-4 weeks | View |
| LS-FFL-1700 | 10 mm, 2/3" | $280.00 | Ships in 3-4 weeks | View |
| LS-FFL-1701 | 10 mm, 2/3", C-mount | $280.00 | Ships in 3-4 weeks | View |
| LS-FFL-1702 | 12 mm, 2/3", C-mount | $1,280.00 | Ships in 3-4 weeks | View |
