2.8-10 mm zoom lens, 1/2.8" (LS-FFL-1694)

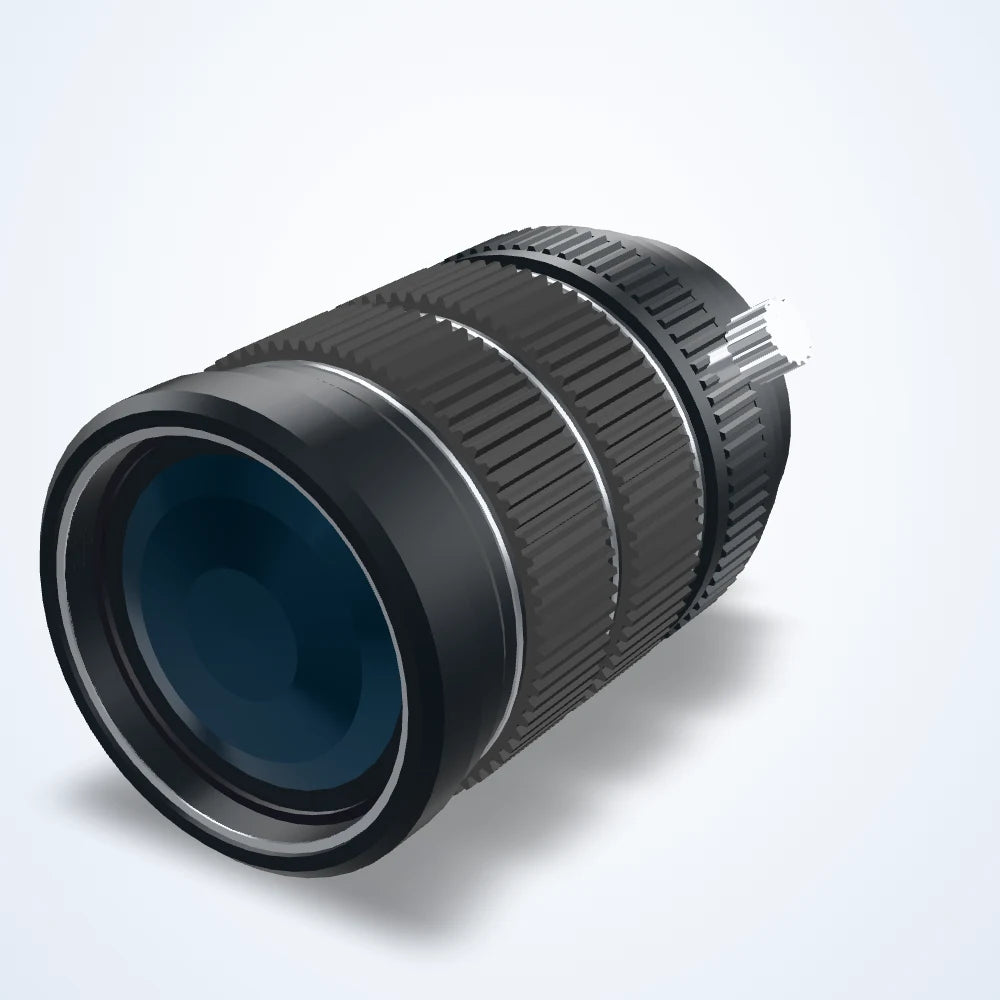

Rendered illustration

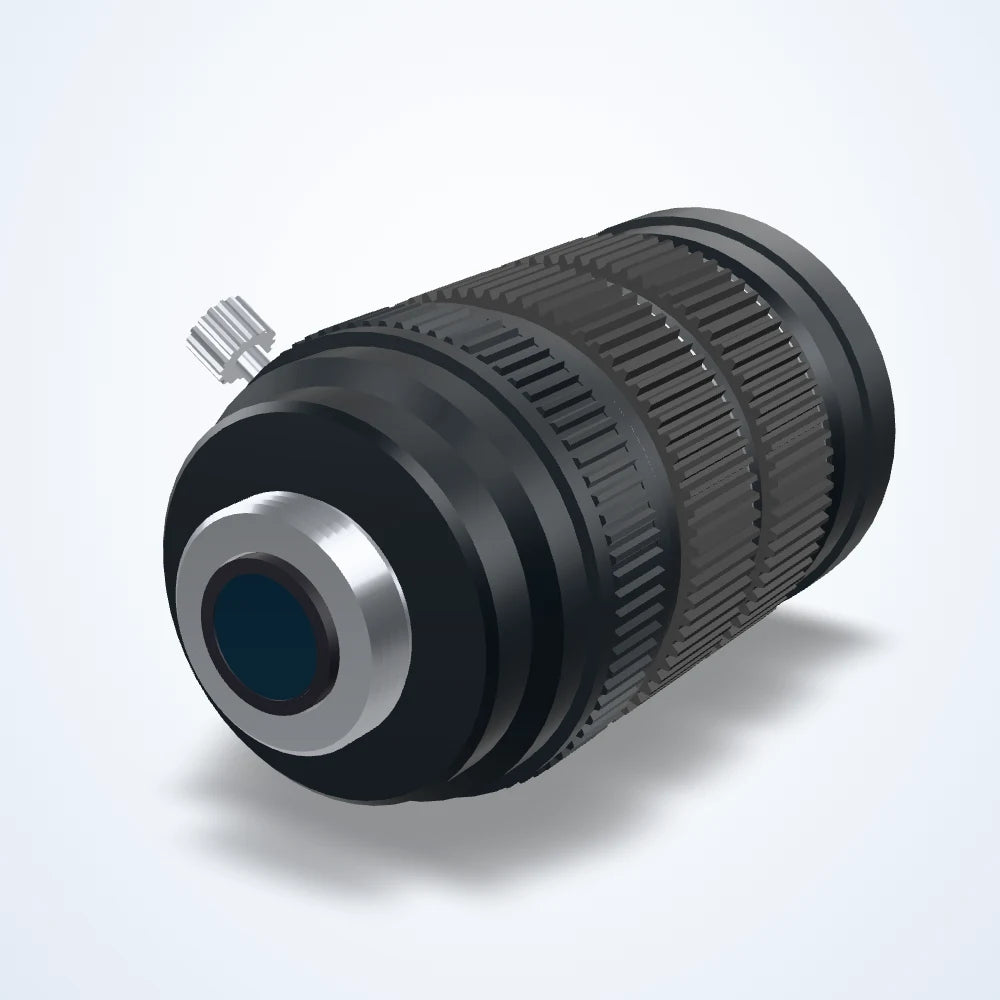

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

2.8-10 mm zoom lens, 1/2.8" (LS-FFL-1694)

Model LS-FFL-1694

Focal length2.8-10 mm
MountD14
Sensor1/2.8"
ApertureF1.6
Resolution1 MP

$120.00

Ships in 3-4 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-ffl-1694

With a D14 (dia. 14 mm) mount, LS-FFL-1694 differs from the CS-Mount versions of this lens.

LS-FFL-1694: focal length 2.8-10 mm, resolution 1 MP, mount D14 (dia. 14 mm).

2.8-10 mm zoom lens for machine-vision cameras. Focal length 2.8-10 mm; covers sensors up to 1/2.8".

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

Model	LS-FFL-1694

Optics

Focal length	2.8-10 mm
Aperture	F1.6

Sensor and imaging

Sensor format	1/2.8"
Resolution	1 MP

Mechanical

Mount	D14 (dia. 14 mm)
Shipping weight	0.31 kg

Engineering data

Field of view with the LS-FFL-1694

Focal length2.8–10 mm

Image circleØ 6.4 mmCovers sensors up to 1/2.8"

Application studies

Applications for this type of part

Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.

All application studies

Set up with the LS-FFL-1454, the same type of part

Source blue-bar capture: repeated bright circular contact features stand out against the dark mat and surrounding pattern.

Electronics and devices Input-device assembly · Contact-feature appearance Repeated contacts on a keyboard mat Use the visible contact pattern to test orientation; verify switch function independently.Light in sourceLS-BAR-0227 · blueExplore the study

Set up with the LS-FFL-1456, the same type of part

Manufacturer test image: alternating bands and repeated pattern edges are visible.

Glass, displays and optics Display and optical glass · Pattern-spacing inspection Grid spacing on a glass cover plate Clear stripes support measurement only after the edge rule and scale are proven.Proposed light housing (spec)74 × 50 × 50 mmExplore the study

Set up with the LS-FFL-0420, the same type of part

The source capture shows bright scratches on the dark metal cover; the red rectangle is the original test annotation. This crop excludes unrelated printed markings on the cover.

Metal parts and machining Metal surfaces · Line-scan system concept A line-scan station for metal surface scratches The lighting reveals the feature; synchronized material travel turns the line into a useful image.Proposed camera2048 pixels · monoExplore the study

Learn

Guides for this part

Engineering guides picked for the LS-FFL-1694: how to choose it, set it up and get a better image.

All guides

How to choose a machine vision lens focal lengthDivide the sensor width by the field of view to get the magnification m, then multiply the working distance by m / (1 + m). Lens sensor format: 1/1.8 inch, 2/3 inch and 1 inch lenses explainedA lens sensor format is the largest sensor the lens covers, expressed in old tube-camera inches: 1/1.8 inch is about 8.9 mm diagonal, 2/3 inch 11 mm, 1 inch 16 mm and 1.1 inch 17.5 mm. Machine vision lens calculator: focal length and field of viewDivide the sensor width by the field of view to get the magnification, then multiply the working distance by m / (1 + m) for the focal length.

Other models in the 1/2.8" zoom lens (LS-FFL-S167) series

See the category

Model	Mount	Resolution	Price	Availability	Link
LS-FFL-1694This model	D14	1 MP	$120.00	Ships in 3-4 weeks	Compare
LS-FFL-1693	CS-mount	0.3 @ 200 lp/mm	$120.00	Ships in 3-4 weeks	CompareView
