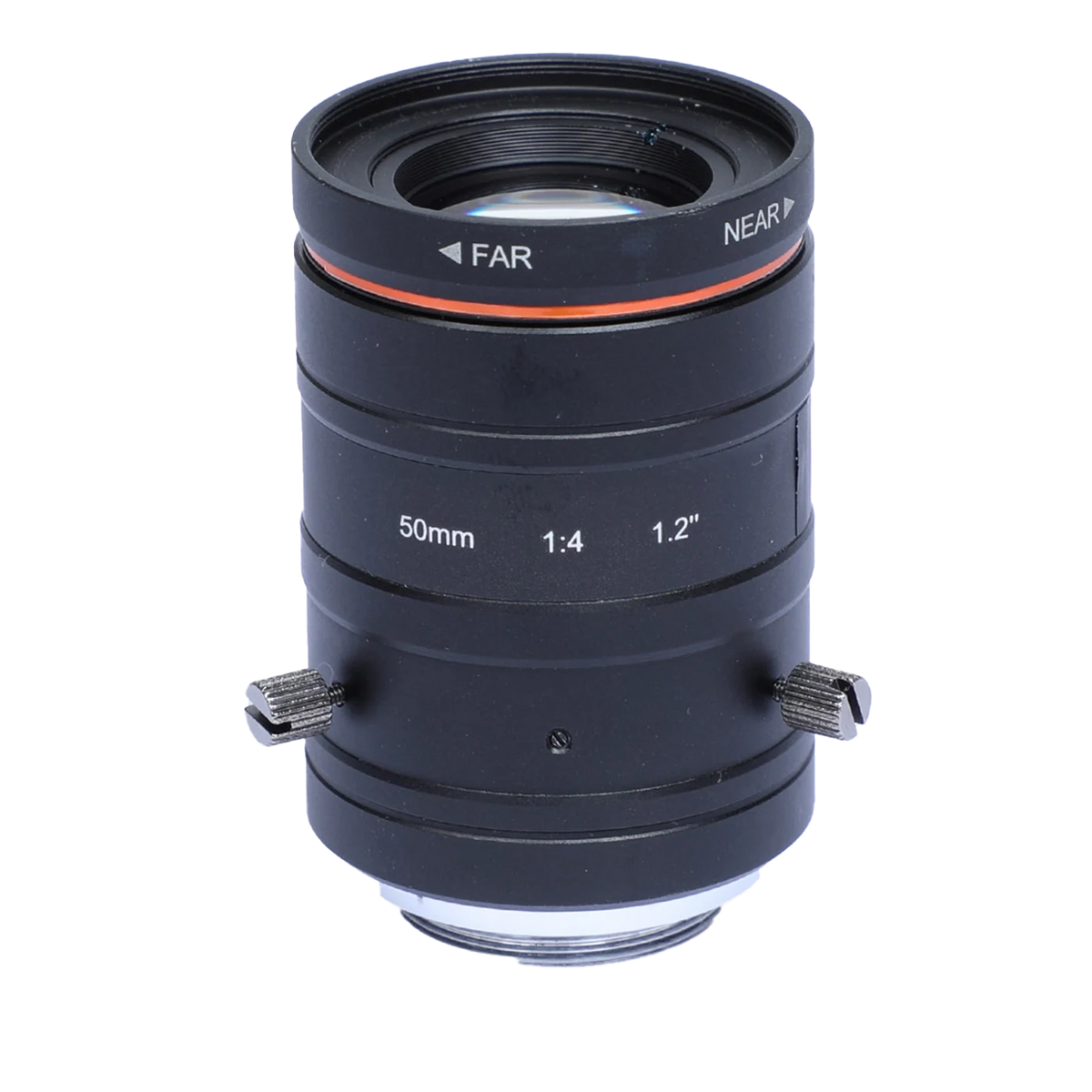

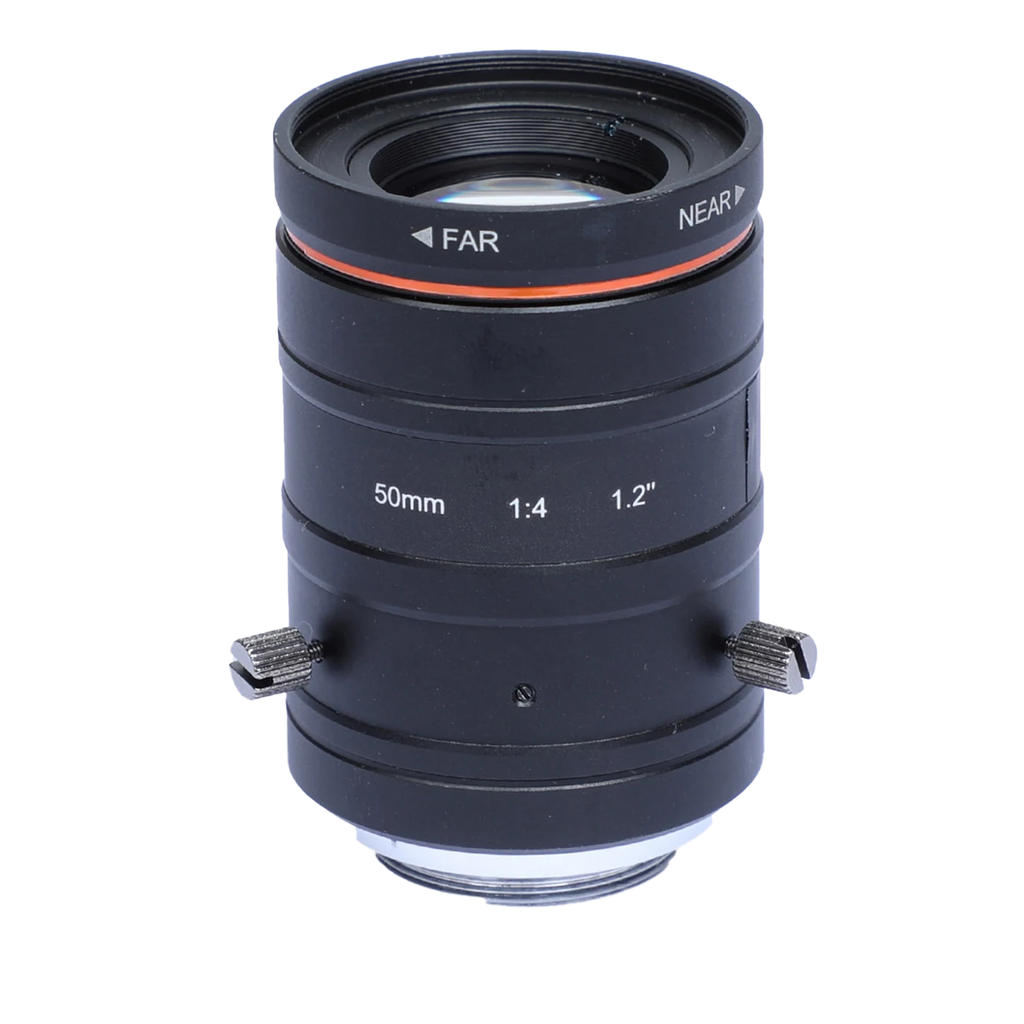

50mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount (LS-FFL-1414)
Model LS-FFL-1414
- Focal length50 mm
- MountC-mount
- Sensor1.2"
- ApertureF4.0
$779.00
Ships in 2-3 weeks
0.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount. Ultra high resolution, high consistency in image center and edge clarity 1.2" image size, F4 fixed iris, structurally stable
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1414 |
|---|---|
| Minimum object distance | 0.15 m |
| Close-up with extension tube | 15 mm tube, near focus: WD 86 mm, magnification -0.656; 15 mm tube, far focus: WD 170 mm, magnification -0.305; 10 mm tube, near focus: WD 99 mm, magnification -0.556; 10 mm tube, far focus: WD 250 mm, magnification -0.204; 5 mm tube, near focus: WD 119 mm, magnification -0.456; 5 mm tube, far focus: WD 491 mm, magnification -0.102; 2 mm tube, near focus: WD 136 mm, magnification -0.397; 2 mm tube, far focus: WD 1213 mm, magnification -0.041; 1 mm tube, near focus: WD 143 mm, magnification -0.377; 1 mm tube, far focus: WD 2417 mm, magnification -0.020 |
Optics
| Focal length | 50 mm |
|---|---|
| F-number | F4.0 |
| Image size | Ø19.3 mm (1.2") |
| Distortion | 0.05% |
| Field of view | D (19.3 mm): 20.6°; H (14.6 mm): 15.7°; V (12.63 mm): 13.6° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M35.5 × P0.5 |
| Magnification at working distance (mm) | 150: -0.357; 200: -0.262; 250: -0.207; 300: -0.171; 350: -0.146; 400: -0.127; 450: -0.112; 500: -0.101; 550: -0.091; 600: -0.084; 650: -0.077; 700: -0.072; 800: -0.062; 900: -0.055; 1000: -0.050 |
| Field of view H x V (mm) at working distance (mm), 1.2" sensor (14.6 x 12.63 mm) | 150: 40.1 x 34.8; 200: 54.9 x 47.6; 250: 69.8 x 60.5; 300: 84.6 x 73.3; 350: 99.4 x 86.1; 400: 114.3 x 99.0; 450: 129.1 x 111.8; 500: 143.9 x 124.7; 550: 158.8 x 137.5; 600: 173.6 x 150.3; 650: 188.4 x 163.2; 700: 203.3 x 176.0; 800: 232.9 x 201.7; 900: 262.6 x 227.3; 1000: 292.2 x 253.0 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm) | 150: 38.9 x 28.6; 200: 53.2 x 39.1; 250: 67.6 x 49.7; 300: 82.0 x 60.2; 350: 96.3 x 70.7; 400: 110.7 x 81.3; 450: 125.1 x 91.8; 500: 139.4 x 102.3; 550: 153.8 x 112.9; 600: 168.2 x 123.4; 650: 182.5 x 133.9; 700: 196.9 x 144.4; 800: 225.6 x 165.4; 900: 254.3 x 186.5; 1000: 283.0 x 207.5 |
| Field of view H x V (mm) at working distance (mm), 1" sensor (13.31 x 8.76 mm) | 150: 34.3 x 27.2; 200: 47.0 x 37.2; 250: 59.6 x 47.2; 300: 72.3 x 57.2; 350: 84.9 x 67.2; 400: 97.6 x 77.2; 450: 110.2 x 87.2; 500: 122.9 x 97.2; 550: 135.5 x 107.2; 600: 148.2 x 117.2; 650: 160.8 x 127.2; 700: 173.5 x 137.2; 800: 198.8 x 157.2; 900: 224.1 x 177.2; 1000: 249.4 x 197.1 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø38 mm × 56.53 mm to 67.95 mm (Ø1.5" × 2.2" to 2.7") |
| Weight | 187 g (0.4 lb.) |
| Shipping weight (estimated) | 0.36 kg |
