Machine vision lenses

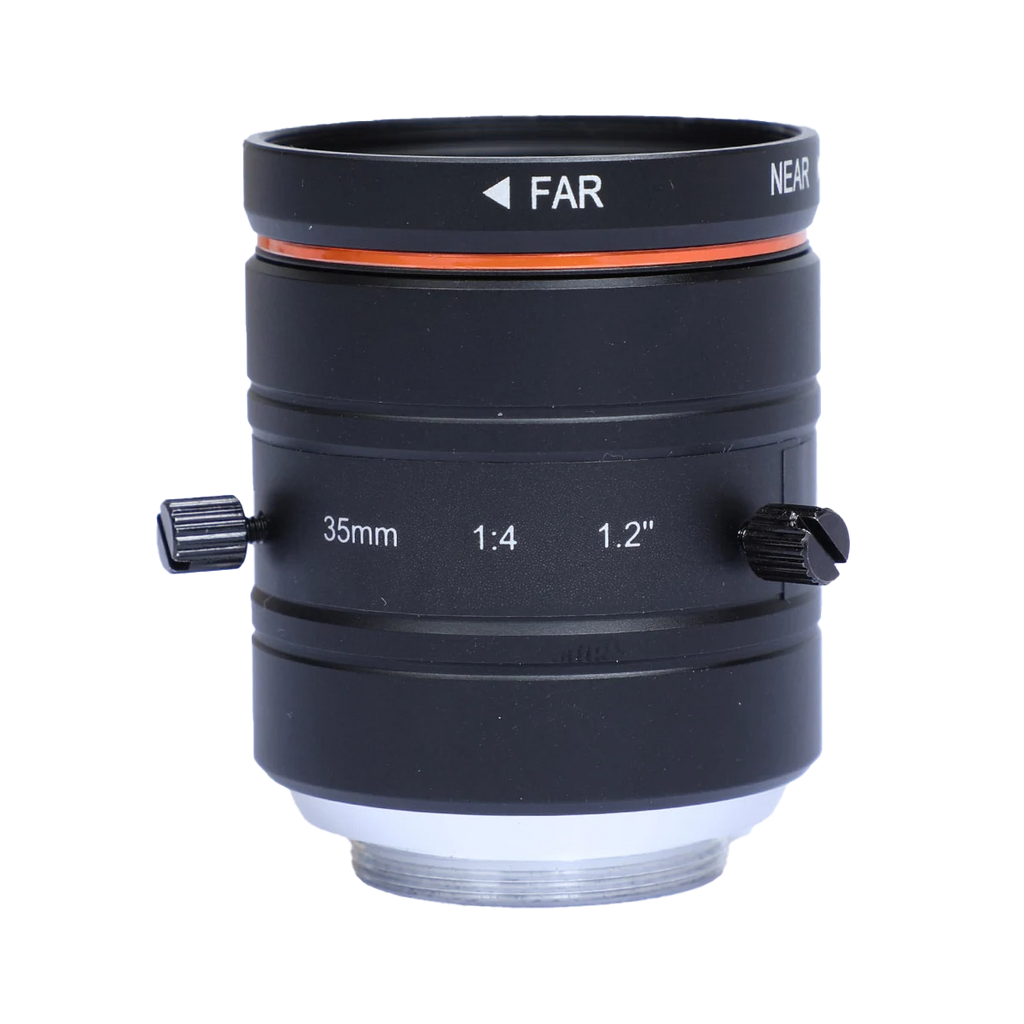

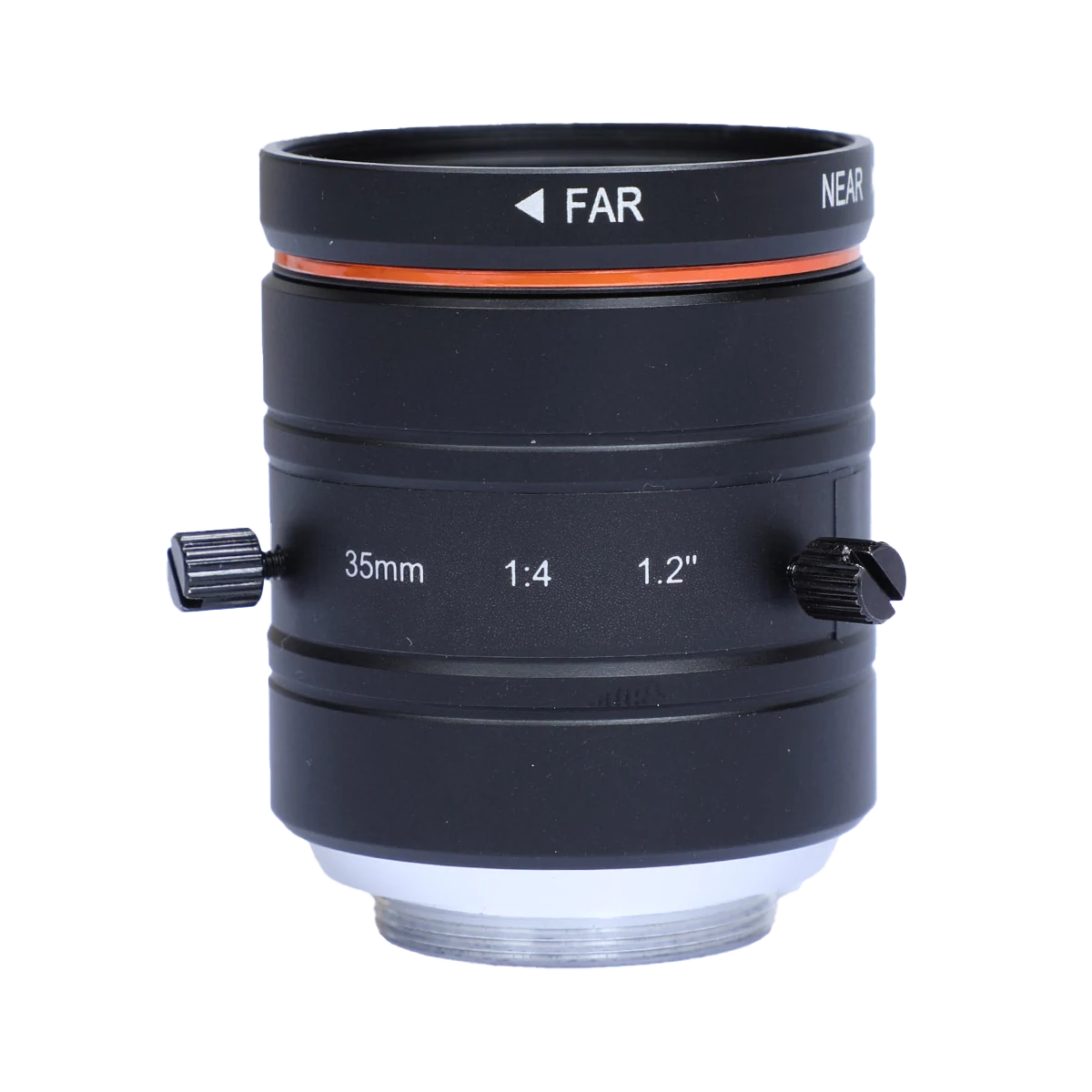

35mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount (LS-FFL-1413)
Model LS-FFL-1413
- Focal length35 mm
- MountC-mount
- Sensor1.2"
- ApertureF4.0
$659.00
Ships in 2-3 weeks
0.29 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount. Ultra high resolution, high consistency in image center and edge clarity 1.2" image size, F4 fixed iris, structurally stable
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1413 |
|---|---|
| Minimum object distance | 0.12 m |
Optics
| Focal length | 35 mm |
|---|---|
| F-number | F4.0 |
| Image size | Ø19.3 mm (1.2'') |
| Distortion | –0.03% |
| Field of view | D (19.3 mm): 29.3°; H (14.6 mm): 22.4°; V (12.63 mm): 19.5° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M35.5 × P0.5 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø38mm × 45.06 mm to 58.05 mm (Ø1.5" × 1.8" to 2.3") |
| Weight | 135.5 g (0.3 lb.) |
| Shipping weight (estimated) | 0.29 kg |
