Machine vision lenses

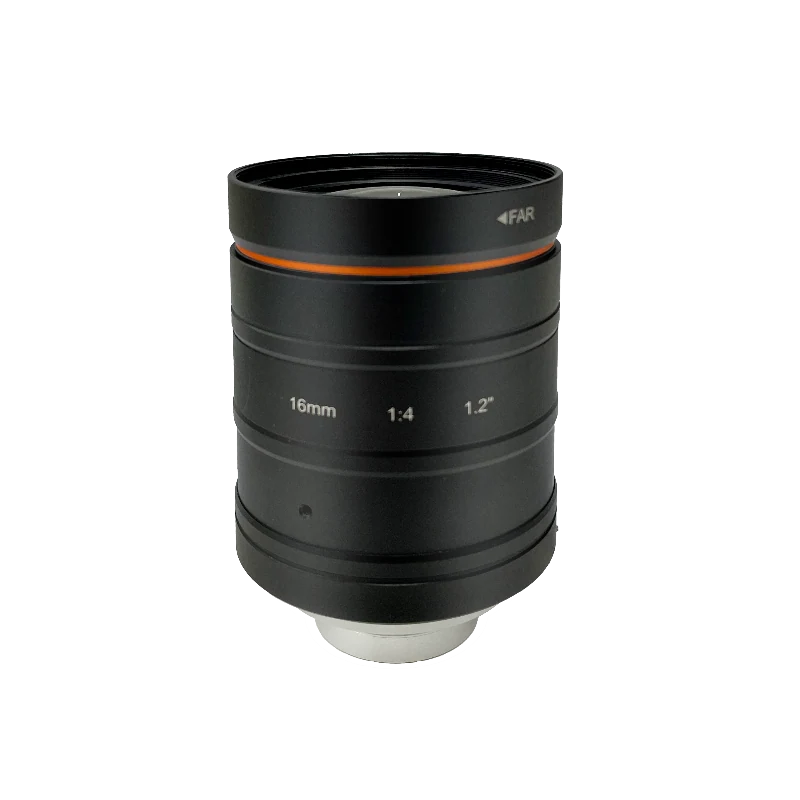

16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount (LS-FFL-1411)
Model LS-FFL-1411
- Focal length16 mm
- MountC-mount
- Sensor1.2"
- ApertureF4.0
$459.00
Ships in 2-3 weeks
0.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount. Ultra high resolution, high consistency in image center and edge clarity 1.2" image size, F4 fixed iris, structurally stable
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1411 |
|---|---|
| Minimum object distance | 0.08 m |
Optics
| Focal length | 16 mm |
|---|---|
| F-number | F4.0 |
| Image size | Ø19.3 mm (1.2") |
| Distortion | 0.04% |
| Field of view | D (17.52 mm): 61.7°; H (14.14 mm): 48.77°; V (10.35 mm): 42.83° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M40.5 × P0.5 |
Environment and compliance
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø42.1 mm × 57.22 mm to 64.19 mm (Ø1.7" x 2.3" to 2.5") |
| Weight | 185 g (0.4 lb.) |
| Shipping weight (estimated) | 0.36 kg |
Other models in the KF-P Anti-Vibration series lenses (LS-FFL-S125) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1412 | 25 mm · C-mount | $469.00 | Ships in 2-3 weeks | View |
| LS-FFL-1413 | 35 mm · C-mount | $659.00 | Ships in 2-3 weeks | View |
| LS-FFL-1414 | 50 mm · C-mount | $779.00 | Ships in 2-3 weeks | View |
