Machine vision lenses

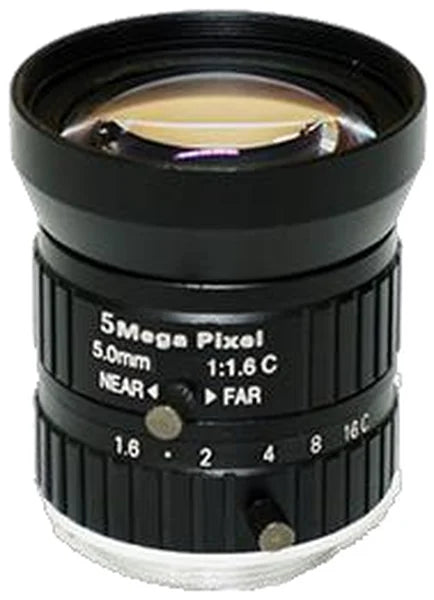

5 mm, 1/1.7", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0520)
Model LS-FFL-0520
- Focal length5.0 mm
- MountC-mount
- Sensor1/1.7"
- ApertureF1.6 Manual iris
- Resolution5.0 Megapixel
$159.00
Ships in 2-3 weeks
0.23 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5 mm, 1/1.7", 5 MP, C-mount Machine Vision Lens. Economy 5 mm 1/1.7" 5 MP C-mount FA lens with F1.6 manual iris. At a glance: focal length 5.0 mm; format 1/1.7"; resolution 5.0 Megapixel; aperture F1.6 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0520 |
|---|---|
| Format | 1/1.7" |
| Angle of view (1/1.7") | 72.6 x 60.63 x 47 deg |
Optics
| Focal length | 5.0 mm |
|---|---|
| Aperture | F1.6 Manual iris |
| M.O.D. | 0.15 m |
| Distortion | 0.35% |
| Filter thread | M37 x 0.5 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|
Mechanical

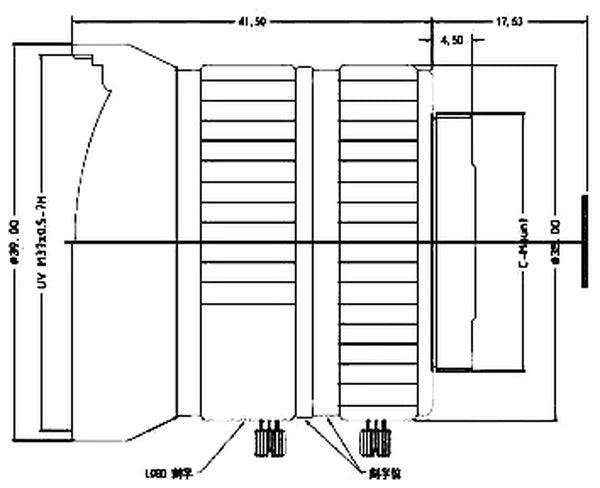

| Size | dia. 39 x 41.5 mm |
|---|---|
| Mount | C |
| Weight | 96 g |
| Shipping weight (estimated) | 0.23 kg |
Other models in the 1/1.7" machine vision lenses (LS-FFL-S82) series
See all 17 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0519 | 5 mm, 1/1.7", 5 MP, C-mount | $159.00 | Ships in 2-3 weeks | View |
| LS-FFL-0504 | 6 mm, 1/1.7", 12 MP, C-mount | $299.00 | Ships in 2-3 weeks | View |
| LS-FFL-0505 | 6 mm, 1/1.7", 12 MP, C-mount | $299.00 | Ships in 2-3 weeks | View |
| LS-FFL-0506 | 8 mm, 1/1.7", 12 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0507 | 8 mm, 1/1.7", 12 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0508 | 12 mm, 1/1.7", 12 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0509 | 12 mm, 1/1.7", 12 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0510 | 16 mm, 1/1.7", 12 MP, C-mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-0511 | 16 mm, 1/1.7", 12 MP, C-mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-0512 | 25 mm, 1/1.7", 12 MP, C-mount | $339.00 | Ships in 2-3 weeks | View |
| LS-FFL-0513 | 25 mm, 1/1.7", 12 MP, C-mount | $339.00 | Ships in 2-3 weeks | View |
| LS-FFL-0514 | 30 mm, 1/1.7", 12 MP, C-mount | $349.00 | Ships in 2-3 weeks | View |
| LS-FFL-0515 | 35 mm, 1/1.7", 12 MP, C-mount | $359.00 | Ships in 2-3 weeks | View |
| LS-FFL-0516 | 40 mm, 1/1.7", 12 MP, C-mount | $369.00 | Ships in 2-3 weeks | View |
| LS-FFL-0517 | 50 mm, 1/1.7", 12 MP, C-mount | $389.00 | Ships in 2-3 weeks | View |
| LS-FFL-0518 | 50 mm, 1/1.7", 12 MP, C-mount | $389.00 | Ships in 2-3 weeks | View |
