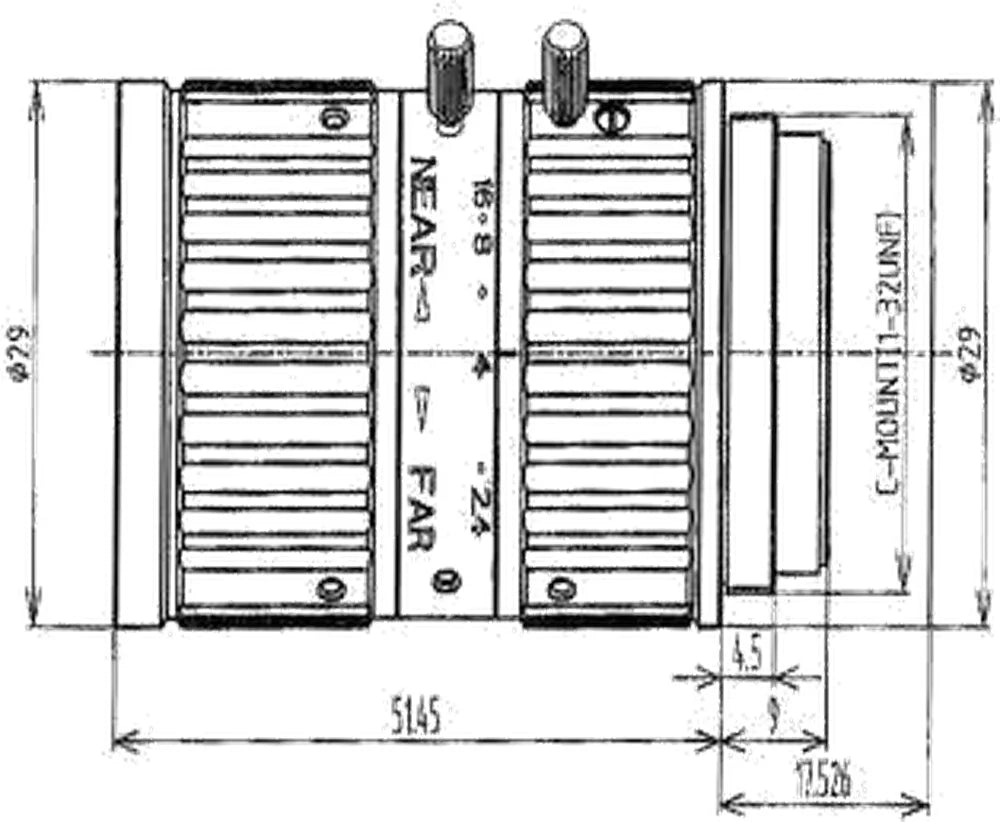

  • LS-FFL-0515 dimensions (mm)

Machine vision lenses

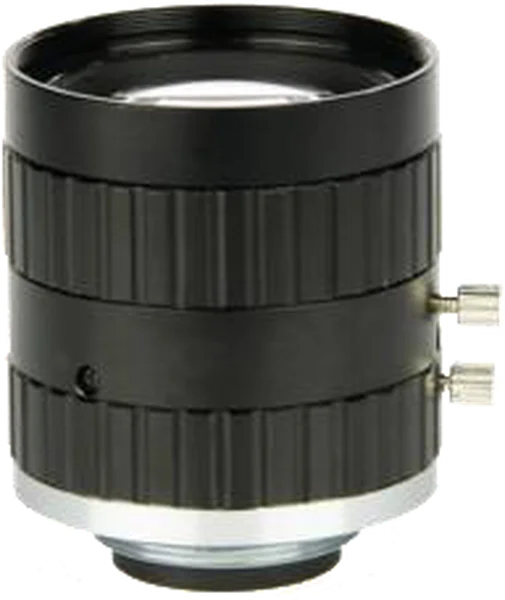

35 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens (LS-FFL-0515)

Model LS-FFL-0515

  • Focal length35 mm
  • Magnification0.279X~∞
  • MountC-mount
  • Sensor1/1.7"
  • ApertureF2.4
  • Resolution12.0 Megapixel
$359.00

Ships in 2-3 weeks

0.24 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens (LS-FFL-0515)LS-FFL-0515

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. 35 mm F2.4 machine vision (FA) lens for 1/1.7" sensors, rated 12 megapixel (4K and 1080P), with low distortion (<0.04%) for measurement and vision. The large 1/1.7" format also covers 1/1.8", 1/2" and 1/3" cameras in a compact body. At a glance: magnification 0.279X~∞; focal length 35 mm; format 1/1.7"(744mmX5.62 mm); resolution 12.0 Megapixel; aperture F2.4.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0515
Format1/1.7"(744mmX5.62 mm)
Angle of view (1/1.7")14.1 x 11.5 x 7.7 ( 47 x 38 x 29 mm@0.2 m)
Angle of view (1/2")12 x 9.6 x 6.37 ( 41 x 33 x 24.2 mm@0.2 m)
CRA<8.6°
Elements8G
B.F.L.10.47 mm
Angle of view (1/1.7", DxHxV)14.1 x 11.5 x 7.7 deg
Angle of view (1/2", DxHxV)12 x 9.6 x 6.37 deg
Notes8G

Optics

Focal length35 mm
ApertureF2.4
M.O.D.0.15 m
Distortion (TV)<0.04% @1/1.7" ; <0.03% @1/2"
Relative illumination>87.7%
Magnification0.279X~∞
Field of view (1/1.7", DxHxV, at 0.2 m)47 x 38 x 29 mm
Field of view (1/2", DxHxV, at 0.2 m)41 x 33 x 24.2 mm
Filter threadM27 x P0.5

Sensor and imaging

Resolution12.0 Megapixel

Environment and compliance

Operating temperature-10°~+50°

Mechanical

Filter sizeM27 x P0.5
Sizedia. 29 x 41.25 mm
MountC
Weight102 g
Optical total length58.9 mm
Shipping weight (estimated)0.24 kg
