Machine vision lenses
50 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens, 50mm (LS-FFL-0518)
Model LS-FFL-0518
- Focal length50mm
- MountC-mount
- Sensor1/1.7"
- ApertureF2.8 Manual iris
- Resolution12 Megapixel
$389.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. A 50 mm F2.8 manual-iris C-mount machine vision lens for 1/1.7" 12-megapixel cameras, with distortion down to 0.003% for measurement and vision. At a glance: focal length 50mm; format 1/1.7"(dia. 9.5mm); resolution 12 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0518 |
|---|---|
| Format | 1/1.7"(dia. 9.5mm) |
| Angle of view (1/1.7") | 10.5 x 8.4 x 6.3 deg |
| Transmission | AT486~656nm T≥85% |
| CRA | 3.67° |
| Notes | 7G Element; BWD (reference working distance)=500mm |
| Angle of view (1/1.8") | 10 x 8 x 5.3 deg |
| Angle of view (1/1.8", DxHxV) | 10 x 8 x 5.3 deg |
Optics
| Focal length | 50mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.25m |
| Distortion (TV) | Max 0.1% / Min 0.003% (WD=500mm) |
| Relative illumination | 86% (H=4.5mm WD=INF) |
| Total track length (TTL) | 65mm |
| Back focal length | 28.38mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

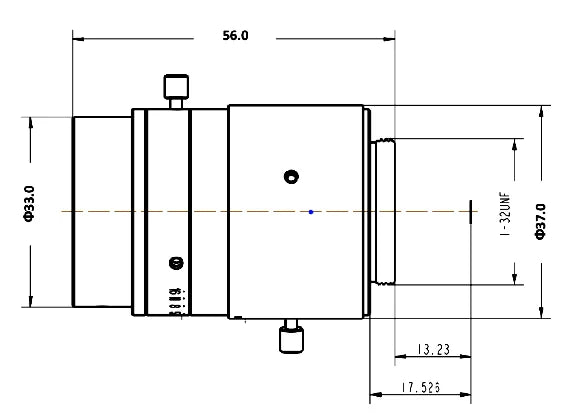

Mechanical
| Size | dia. 37 x 51.7mm |
|---|---|
| Mount | C |
| Weight | 68g |
| Shipping weight (estimated) | 0.20 kg |
