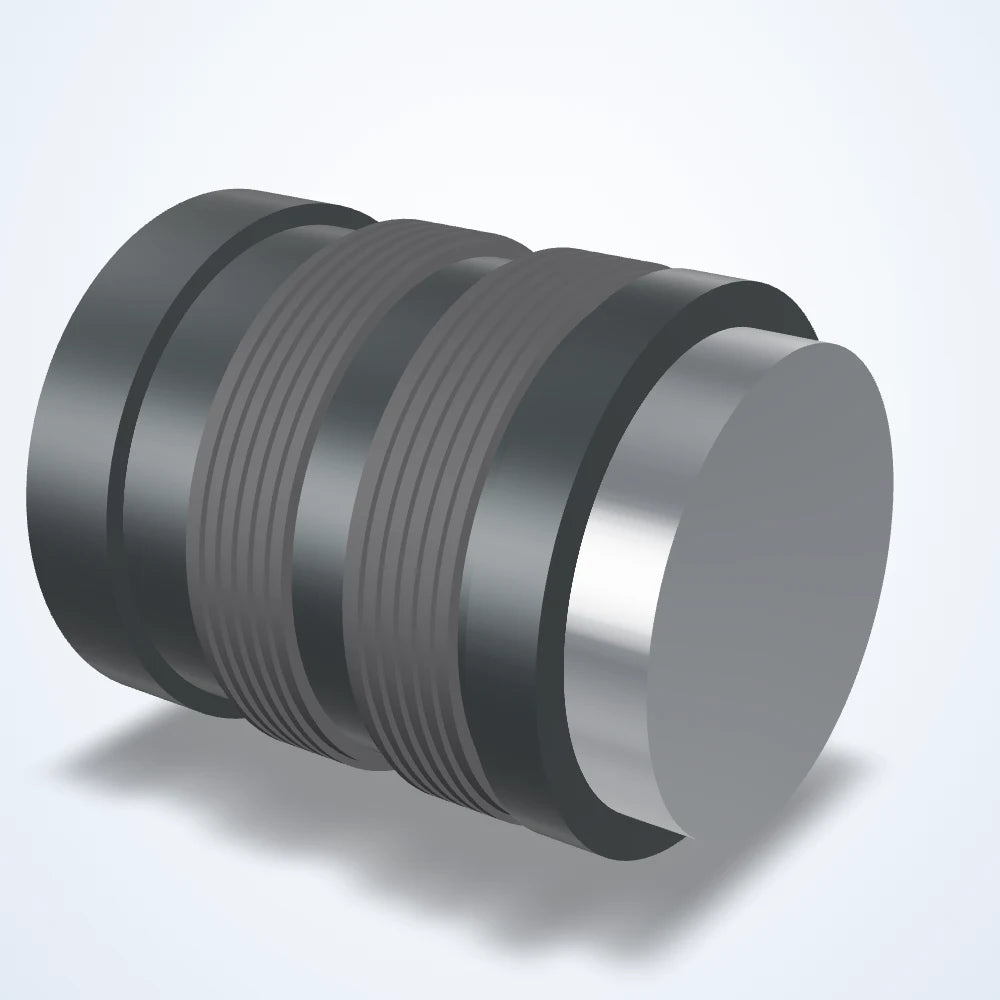

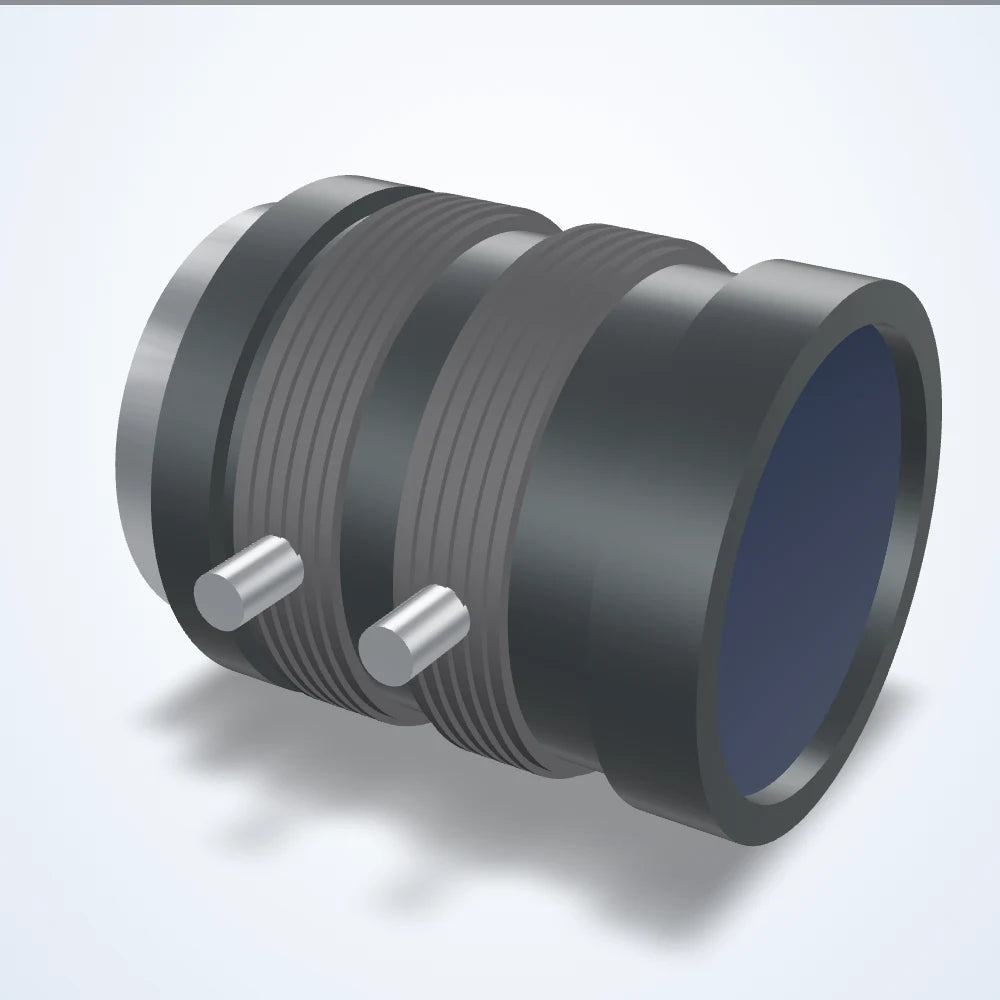

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 2/3", C-mount, F1.4-16 (LS-FFL-0216)
Model LS-FFL-0216
- Focal length6 mm
- MountC-mount
- Sensor2/3"
- Aperture1.4-16
- ResolutionCenter 100lp/mm, corner 40lp/mm
$219.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0216 |
|---|---|
| Angle of view | H 81.9 x V 61.2 deg (D 103.1 deg) |
| Angle of view @ 1/1.8″ | 66.9° × 50.1° |
| Angle of view @ 1/2″ | 59.4° × 44.5° |
| Angle of view @ 2/3″ | 81.9° × 61.2° |
| Entrance pupil position | 11.3 (ENP) |
| Exit pupil | -30.4mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 21.5mm / Rear 11.0mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Shooting range at mod | 190.6(H)×130.3(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 6 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -10.7% (TV) |
| Back focus | 11.3mm in air |
| Filter screw size | ----- (none) |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 100lp/mm, corner 40lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

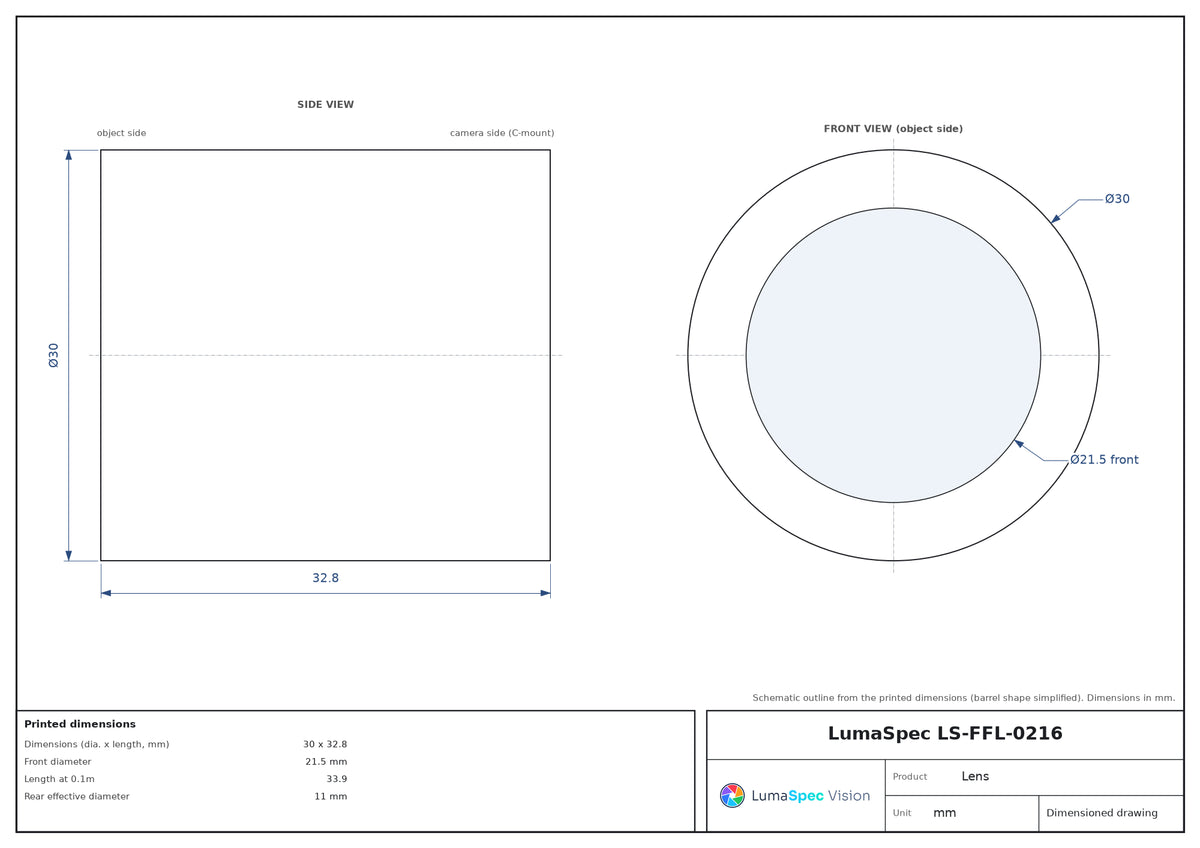

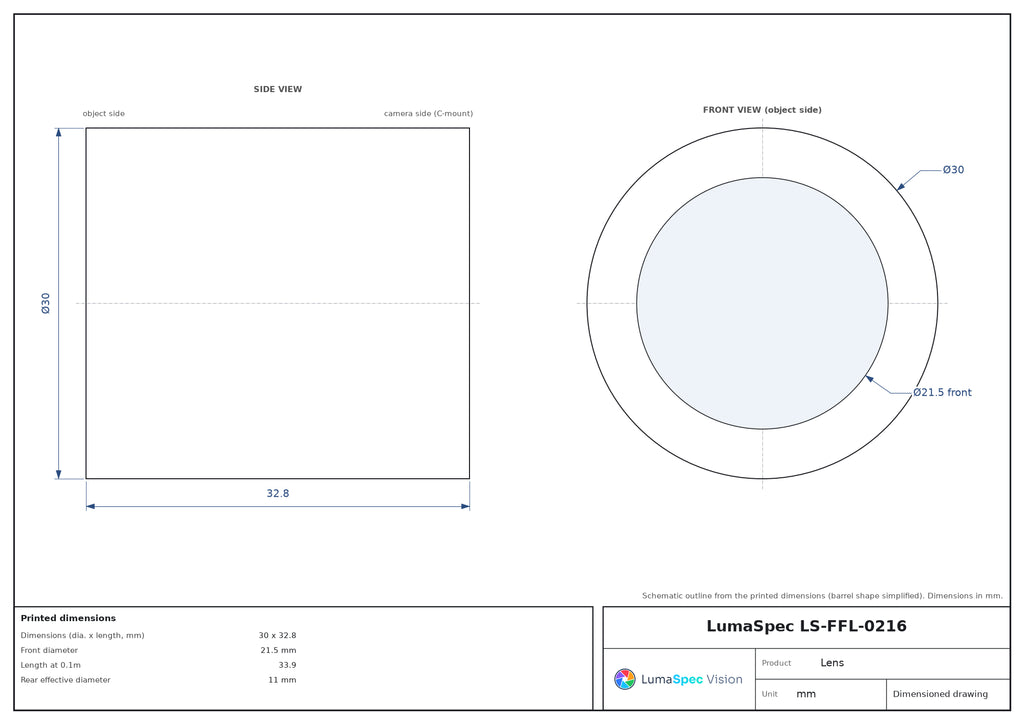

| Dimensions (dia. x length, mm) | 30 x 32.8 |
| Front diameter | 21.5 mm |
| Length at 0.1m | 33.9 |
| Picture size (largest format) | 6.6x8.8mm |
| Weight (g) | 65 |
