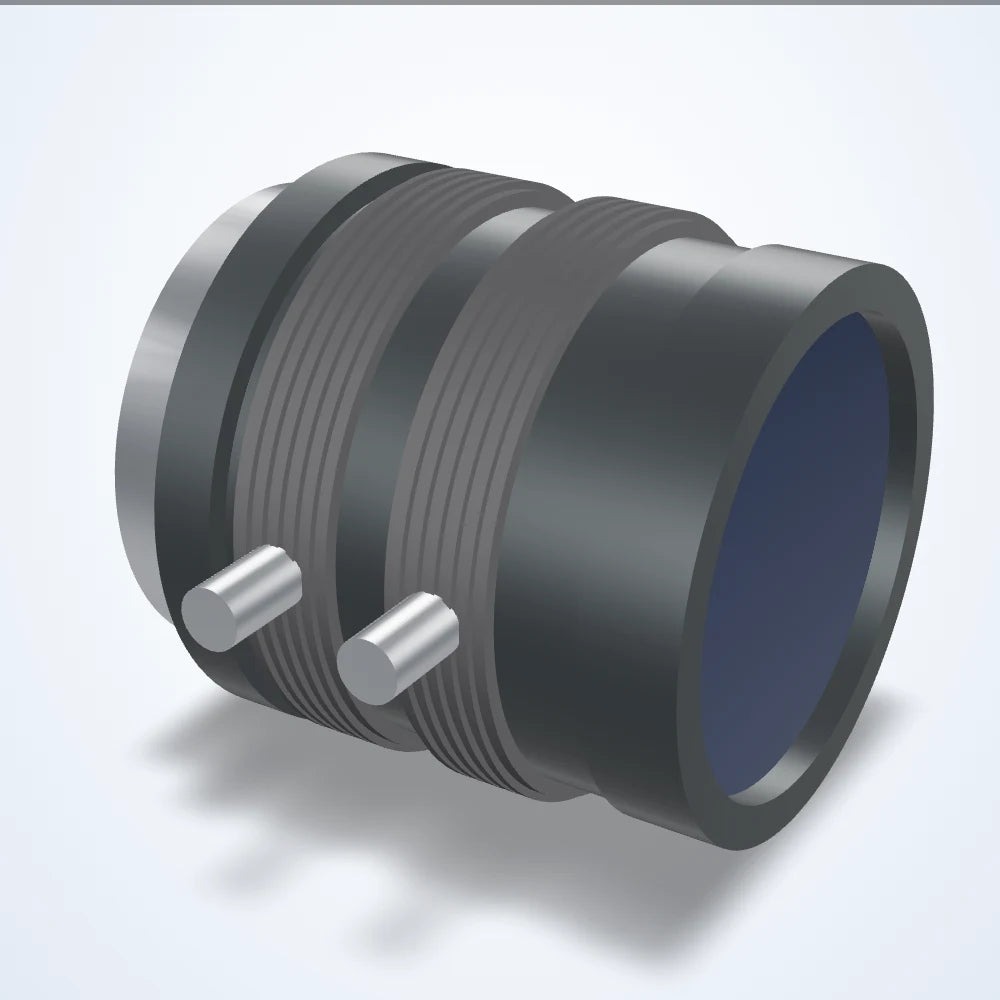

  • 25 mm lens, 2/3", C-mount, Visible (LS-FFL-0163)

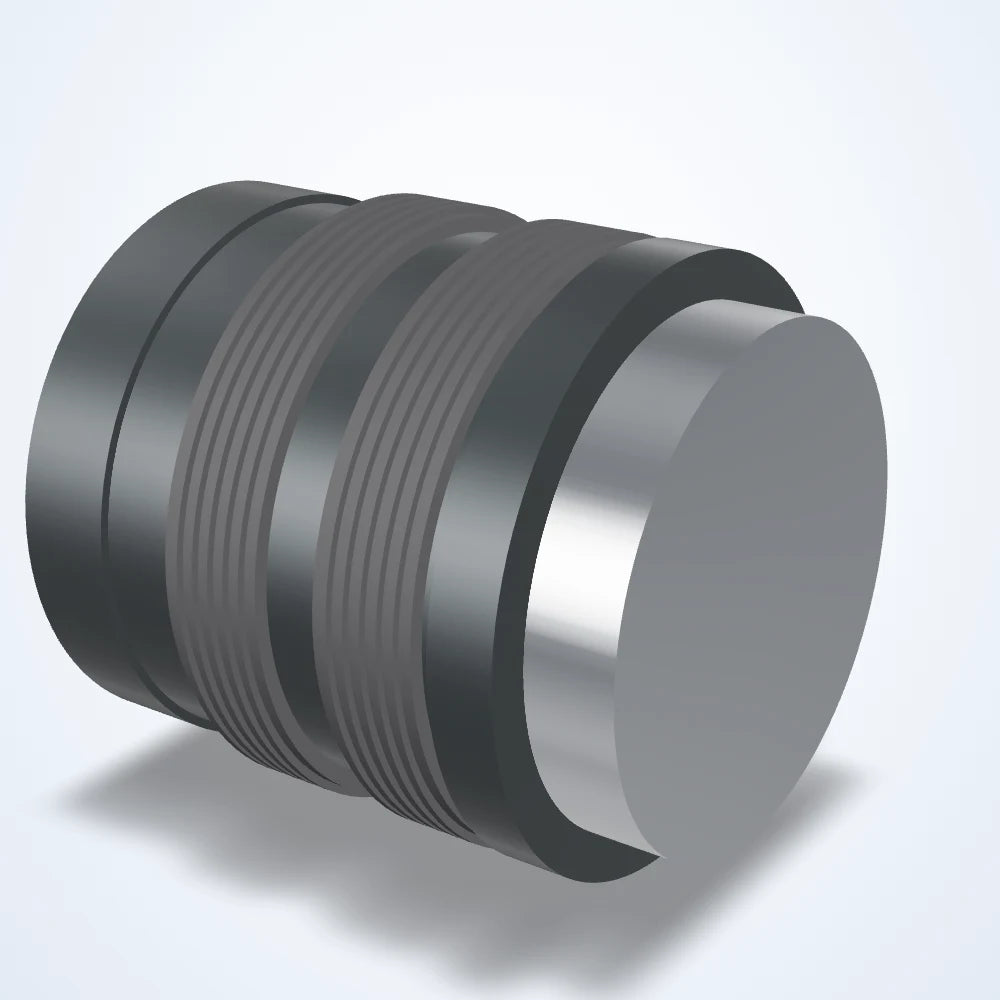

  • 25 mm lens, 2/3", C-mount, Visible (LS-FFL-0163) - view 2

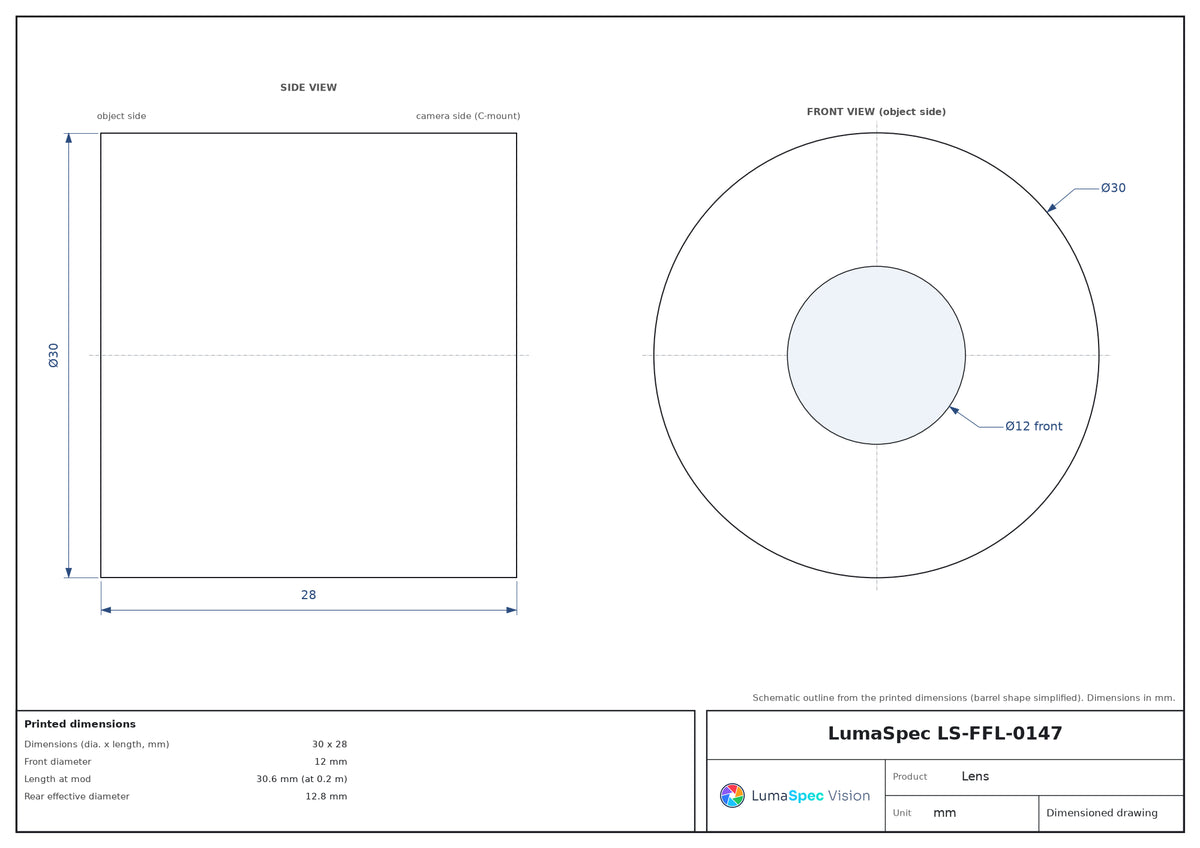

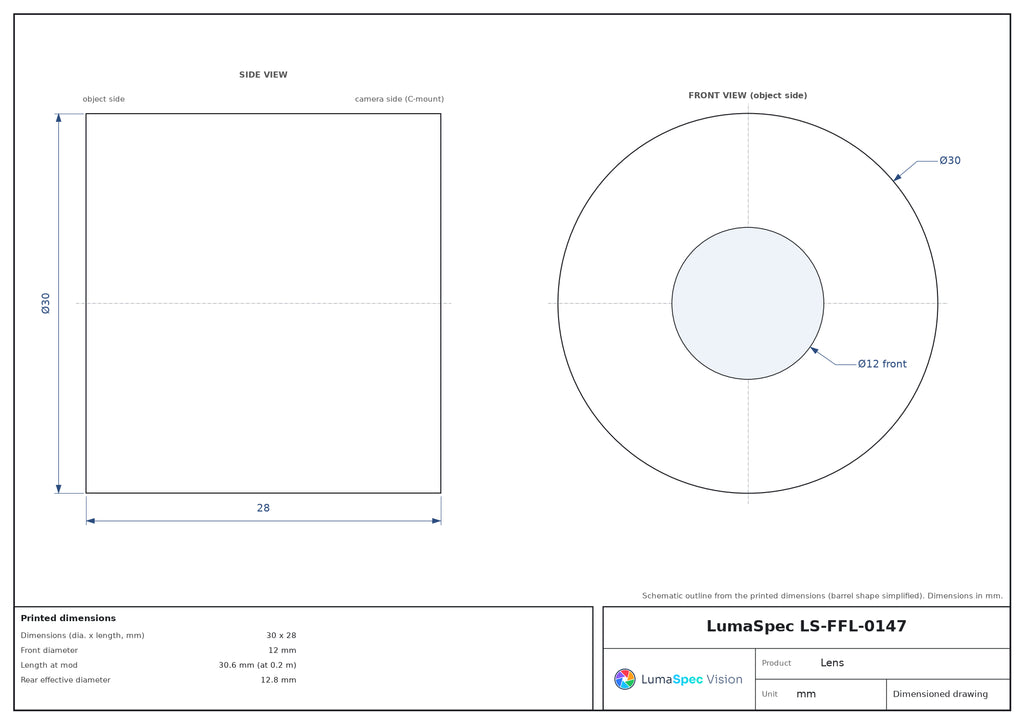

  • LS-FFL-0147 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

16 mm lens, 2/3", C-mount (LS-FFL-0147)

Model LS-FFL-0147

  • Focal length16 mm
  • Magnification0.14×
  • MountC-mount
  • Sensor2/3"
  • Aperture1.4-16
  • ResolutionCenter 100 lp/mm / Corner 40 lp/mm
$219.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0147
Angle of view30.5 x 22.8 deg (H x V), 38.3 deg diagonal
Angle of view @ 1/1.8″17.2° × 12.9°
Angle of view @ 1/2″15.3° × 11.4°
Angle of view @ 2/3″21.0° × 15.7°
Entrance pupil position20.3 mm from front
Exit pupil-48.9mm
Flange back17.526mm in air
Front / rear effective dia.Front 12.0mm / Rear 12.8mm
Lens typeFixed Focal Length
Minimum object distance (m)0.2
Minimum object distance with 1mm ring110 mm
Shooting range at mod (2/3")V 82.6mm, H 111.8mm, D 142.7mm
SpectrumVisible
Thumb screwM2

Optics

Focal length16 mm
Aperture (F)1.4-16
Distortion-1.5% (TV)
Back focus12.1mm in air
Filter threadM27x0.5
Focus controlManual
Focus range0.2 m - ∞
Image circle11 mm
Image size dimensions8.8 mm x 6.6 mm
Iris controlManual
Magnification with 1mm ring0.14×

Sensor and imaging

Max. sensor format2/3"
Resolution center/cornerCenter 100 lp/mm / Corner 40 lp/mm

Environment and compliance

Operating temperature range-10 to +50 °C
Storage temperature range-20~+60 C

Mechanical

MountC-mount
Dimensions (dia. x length, mm)30 x 28
Front diameter12 mm
Length at mod30.6 mm (at 0.2 m)
Mount thread1-32UNF
Weight (g)55
