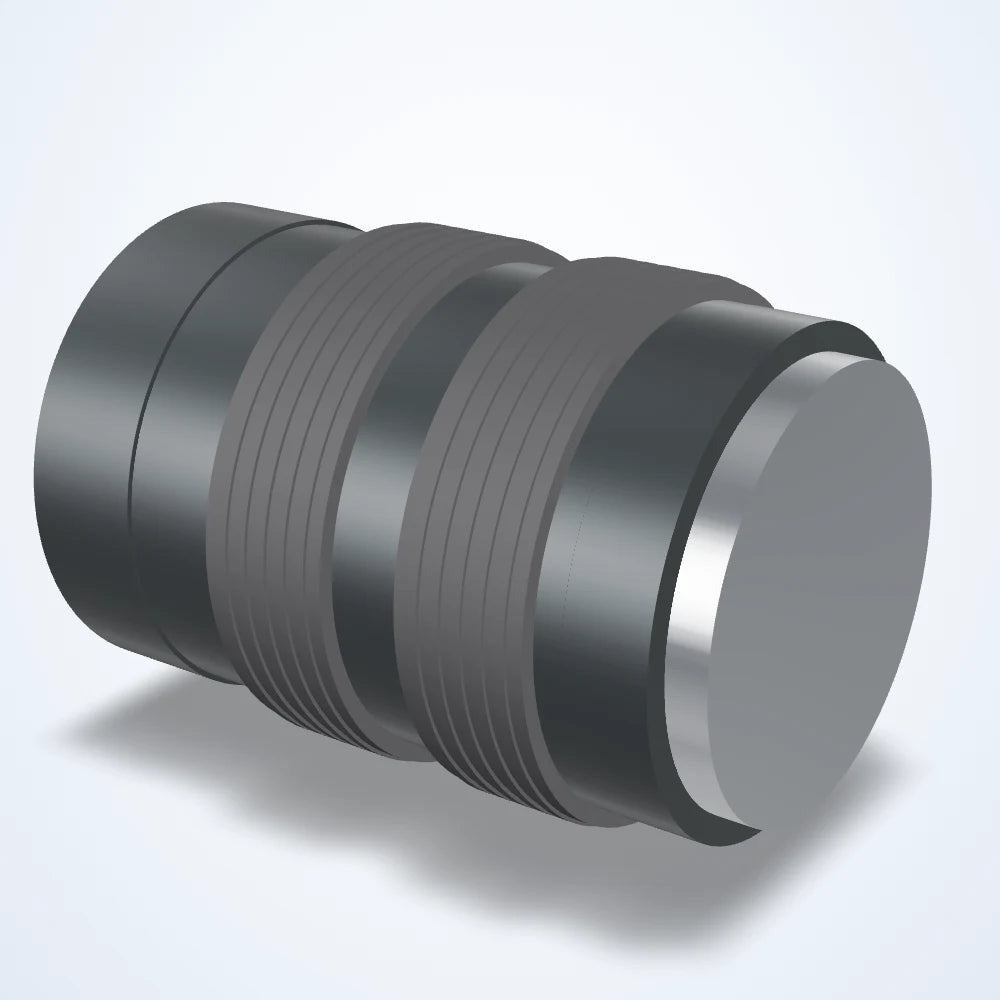

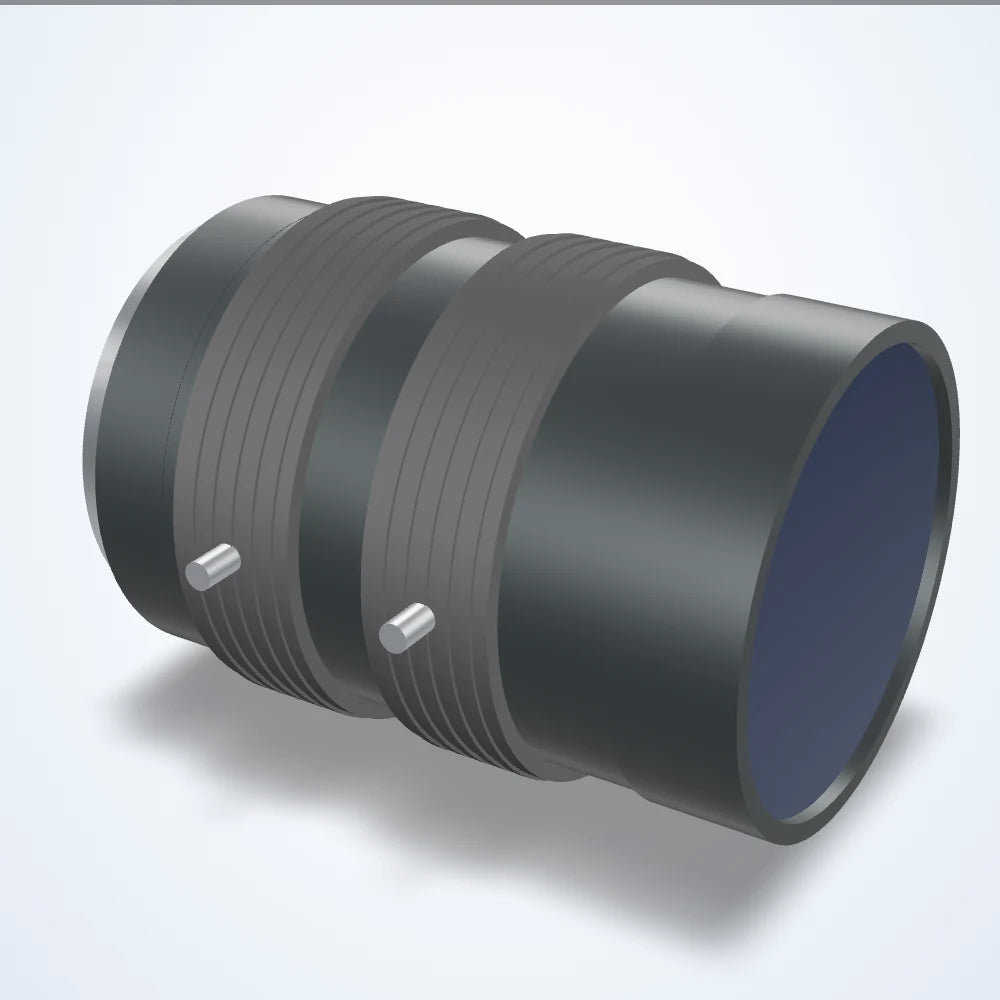

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, Full size (24x36mm), F-mount (LS-FFL-0208)
Model LS-FFL-0208
- Focal length50 mm
- MountF-mount
- SensorFull frame
- Aperture2.8-22
- ResolutionCenter 160lp/mm, corner 63lp/mm
$919.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0208 |
|---|---|
| Angle of view | H 39.7 x V 27.1 deg (D 47.0 deg) |
| Angle of view @ 1″ | 14.6° × 11.0° |
| Angle of view @ 4/3″ | 20.9° × 15.7° |
| Element | 9 groups 10 elements |
| Entrance pupil position | 33.2 (E.P.) |
| Exit pupil | -59.3mm |
| Flange back | 46.5mm in air |
| Front / rear effective dia. | Front 38.8 / Rear 32.0 |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.4 |
| Shooting range at mod | 162.9×108.9 |
| Spectrum | Visible |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (F) | 2.8-22 |
| Distortion | -0.04% (TV) |
| Back focus | 37.7mm in air |
| Filter thread | M52x0.75 |
| Focus control | Manual |
| Focus range | 0.4 m - ∞ |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | Full size (24x36mm) |
|---|---|
| Resolution center/corner | Center 160lp/mm, corner 63lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | F-mount |
|---|---|
| Angle of view @ full size | 39.7° × 27.1° |

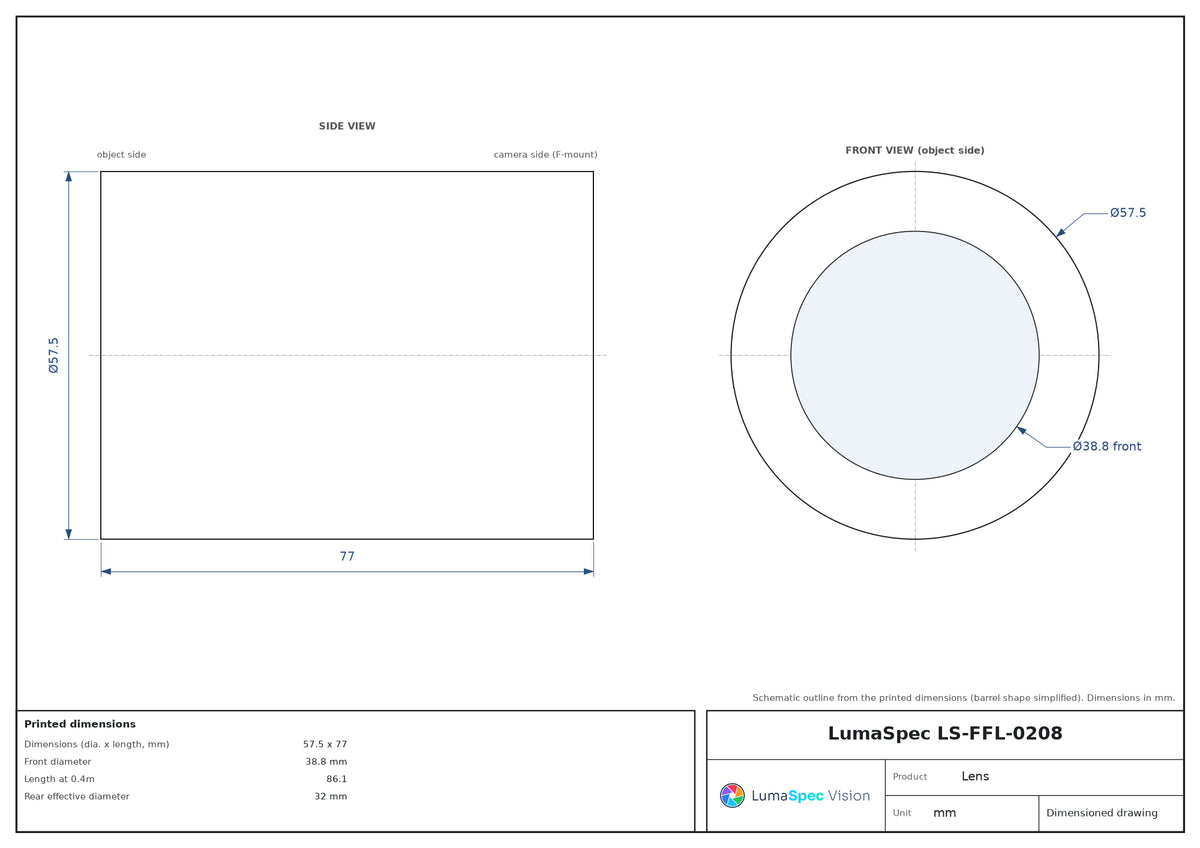

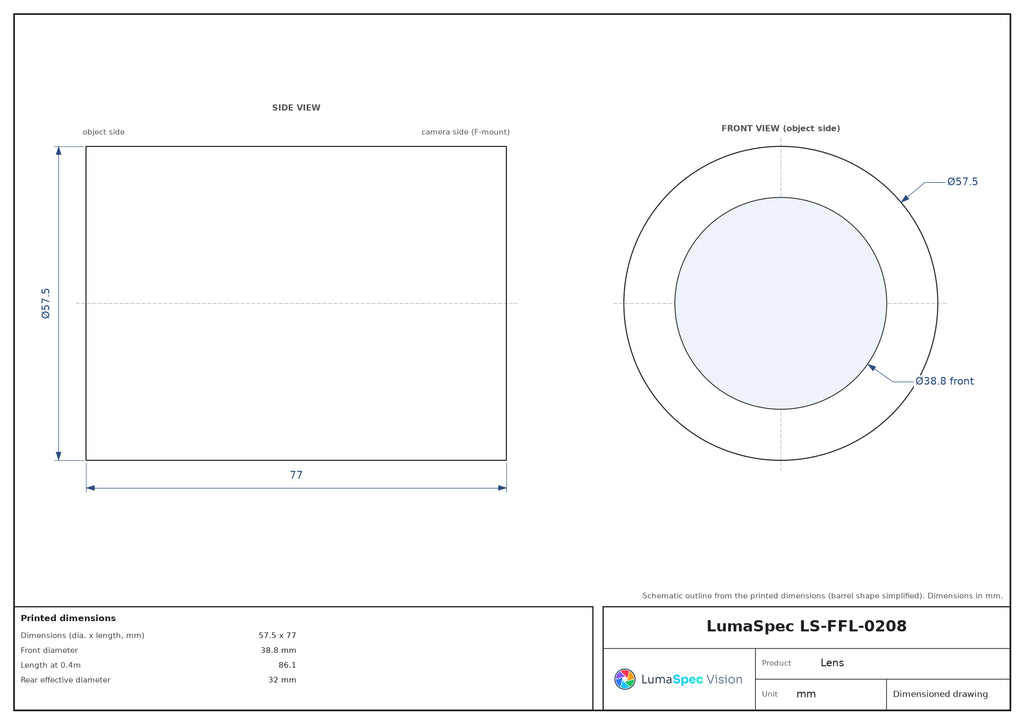

| Dimensions (dia. x length, mm) | 57.5 x 77 |
| Front diameter | 38.8 mm |
| Length at 0.4m | 86.1 |
| Picture size (largest format) | 24x36mm |
| Weight (g) | 470 |
