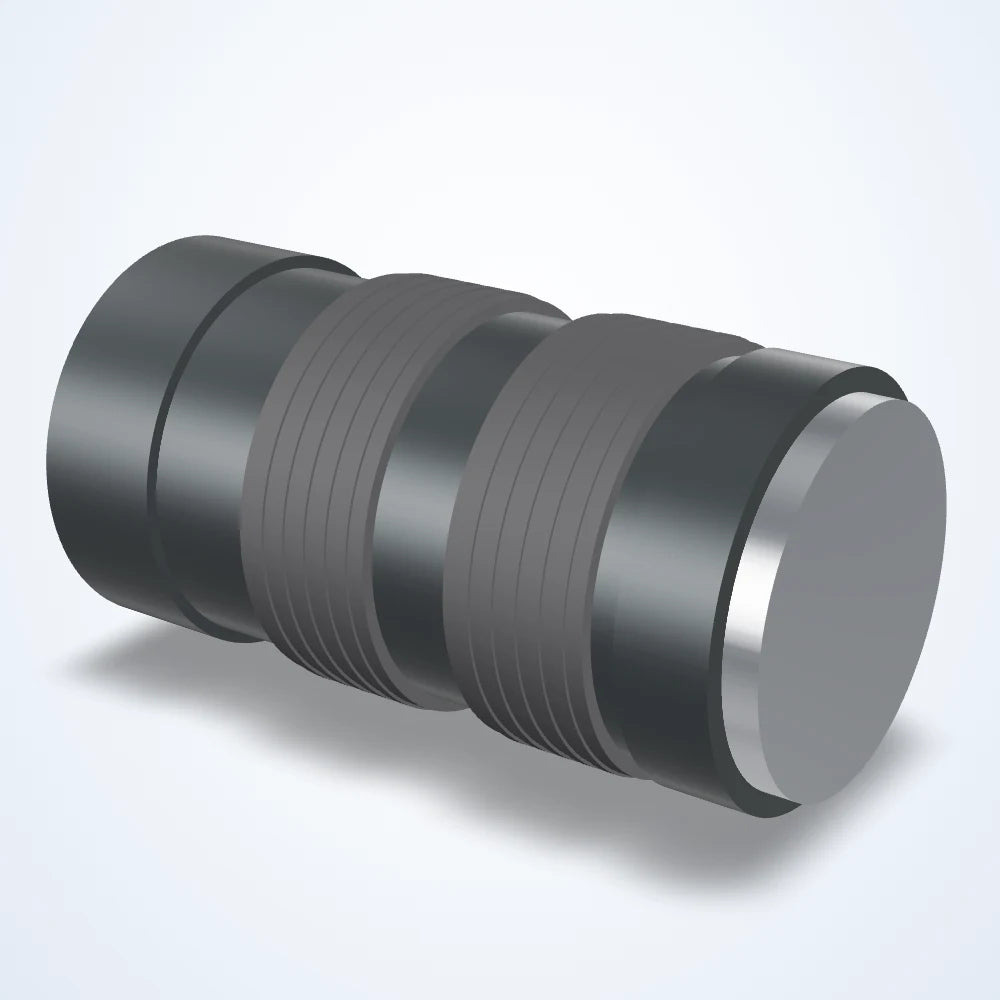

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses

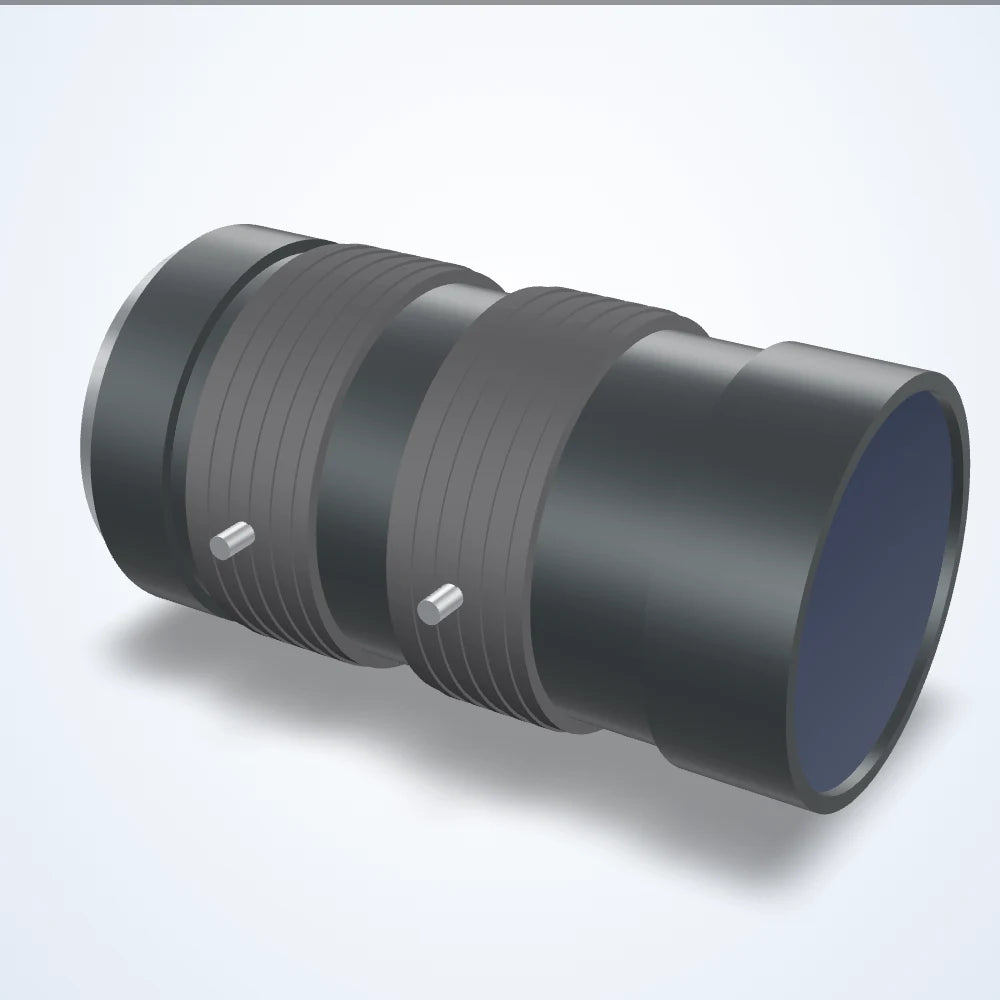

35 mm lens, Full size (24x36mm), TFL-II Mount (LS-FFL-0189)
Model LS-FFL-0189
- Focal length35 mm
- MountM48x0.75
- SensorFull frame
- Aperture2.8-22
- ResolutionCenter 160lp/mm, corner 63lp/mm
$1,039.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0189 |
|---|---|
| Angle of view | H 53.7 x V 37.2 deg (D 62.6 deg) |
| Angle of view @ 1″ | 20.3° × 15.3° |
| Angle of view @ 4/3″ | 28.9° × 21.8° |
| Element | 10 groups 11 elements |
| Entrance pupil position | 30.8 (E.P.) |
| Exit pupil | -45.5mm |
| Flange back | 46.5mm in air |
| Front / rear effective dia. | Front 37.7 / Rear 24.6 |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.4 |
| Shooting range at mod | 239.9×160.3 |
| Spectrum | Visible |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.8-22 |
| Distortion | -0.15% (TV) |
| Back focus | 34.6mm in air |
| Filter thread | M52x0.75 |
| Focus control | Manual |
| Focus range | 0.4 m - ∞ |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | Full size (24x36mm) |
|---|---|
| Resolution center/corner | Center 160lp/mm, corner 63lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | M48x0.75 (TFL-II) |
|---|---|
| Angle of view @ full size | 53.7° × 37.2° |

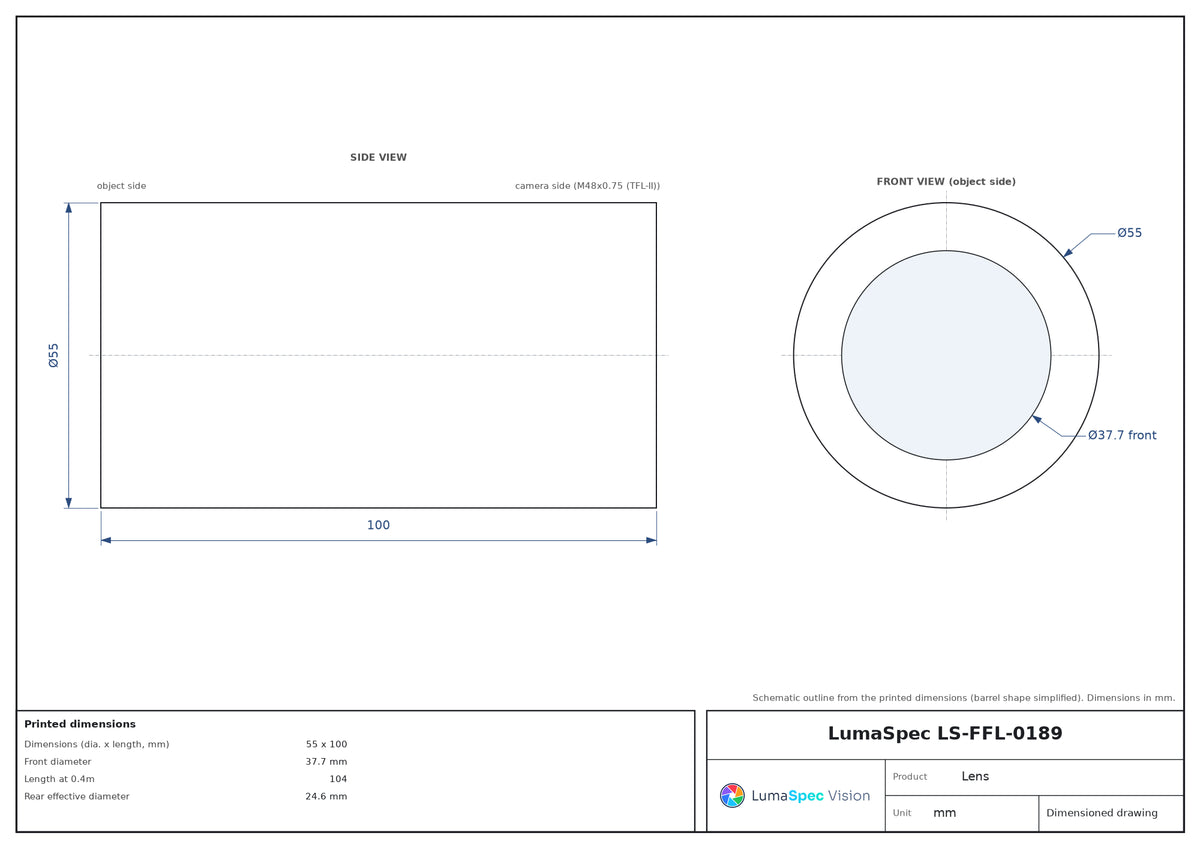

| Dimensions (dia. x length, mm) | 55 x 100 |
| Front diameter | 37.7 mm |
| Length at 0.4m | 104 |
| Picture size (largest format) | 24x36mm |
| Weight (g) | 430 |
