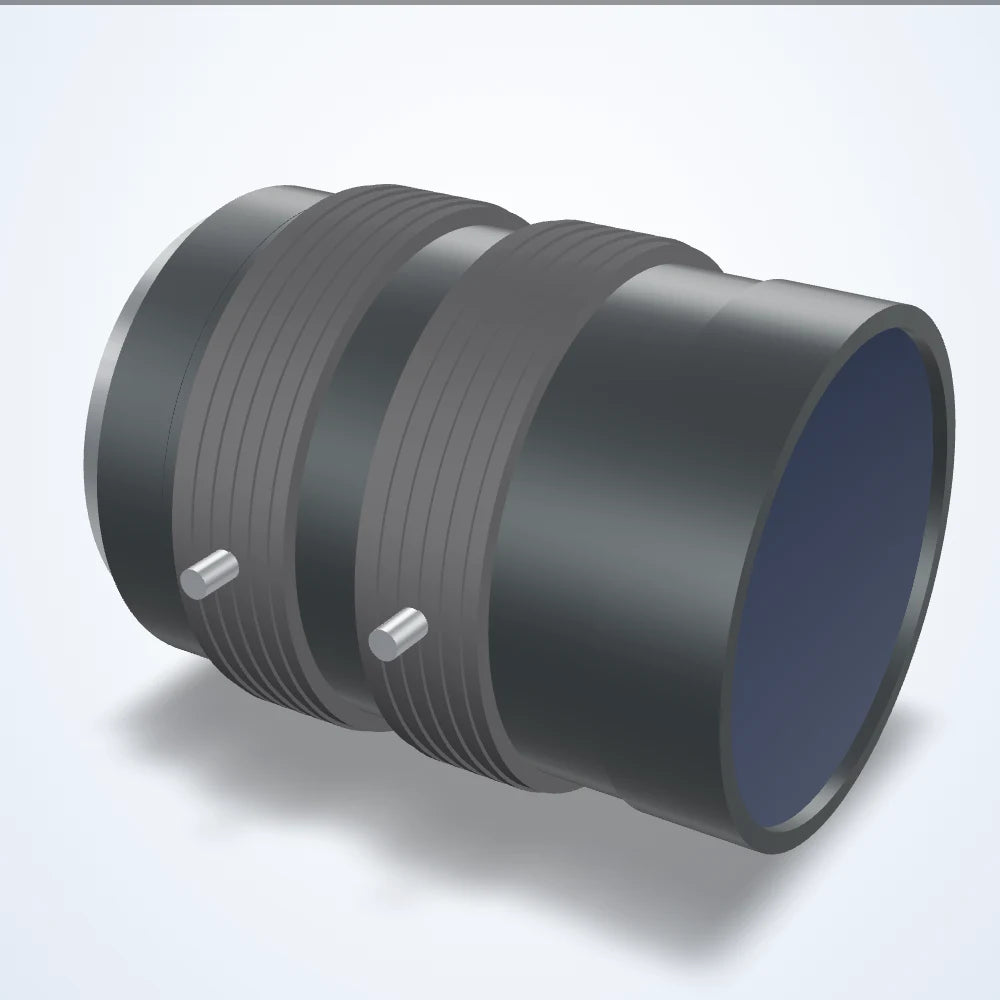

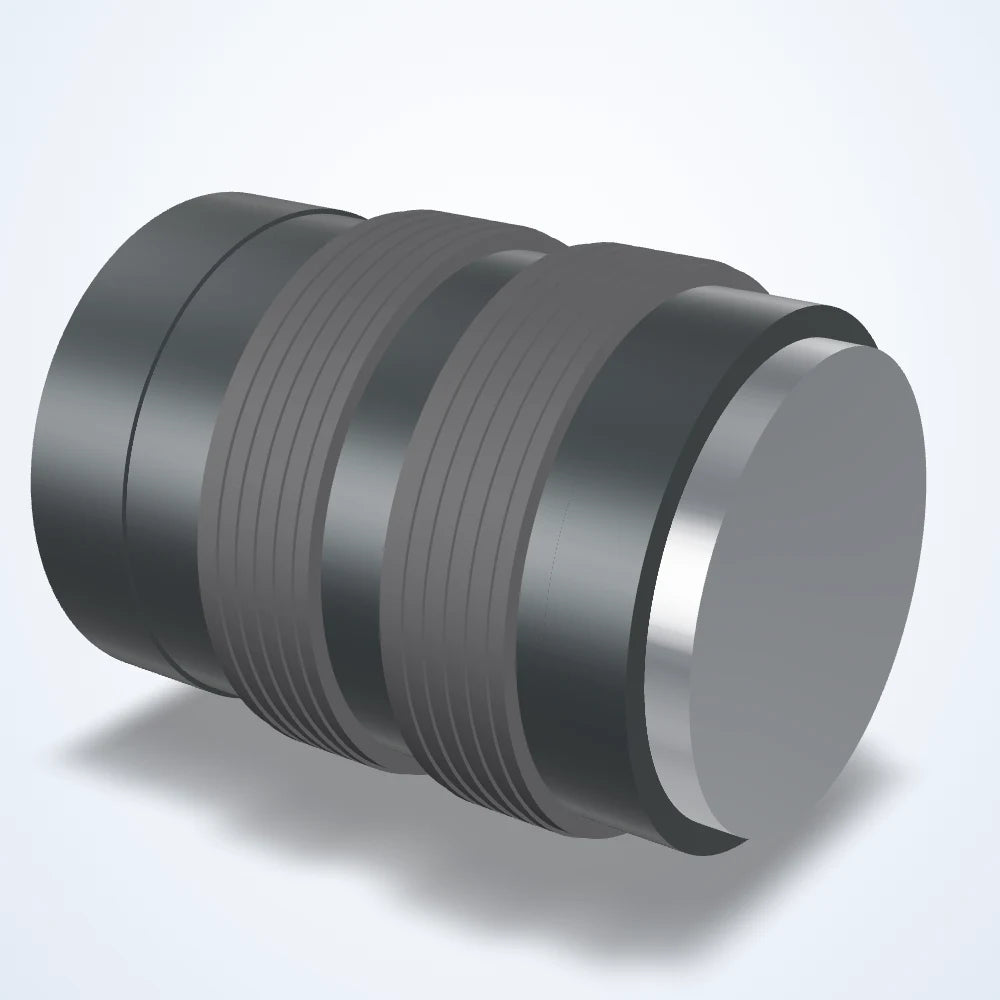

35 mm lens, Full size (24x36mm), F-mount (LS-FFL-0188)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm lens, Full size (24x36mm), F-mount (LS-FFL-0188)

Model LS-FFL-0188

Focal length35 mm
MountF-mount
SensorFull frame
Aperture2.8-22
ResolutionCenter 160lp/mm, corner 63lp/mm

$919.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Machine vision lens for industrial cameras.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0188
Angle of view	H 53.7 x V 37.2 deg (D 62.6 deg)
Angle of view @ 1″	20.3° × 15.3°
Angle of view @ 4/3″	28.9° × 21.8°
Element	10 groups 11 elements
Entrance pupil position	30.8 (E.P.)
Exit pupil	-45.5mm
Flange back	46.5mm in air
Front / rear effective dia.	Front 37.7 / Rear 24.6
Lens type	Fixed Focal Length
Minimum object distance (m)	0.4
Shooting range at mod	239.9×160.3
Spectrum	Visible

Optics

Focal length	35 mm
Aperture (F)	2.8-22
Distortion	-0.15% (TV)
Back focus	34.6mm in air
Filter thread	M52x0.75
Focus control	Manual
Focus range	0.4 m - ∞
Image circle	23 mm
Image size dimensions	18.4 mm x 13.8 mm
Iris control	Manual

Sensor and imaging

Max. sensor format	Full size (24x36mm)
Resolution center/corner	Center 160lp/mm, corner 63lp/mm

Environment and compliance

Operating temperature range	-10 to +50 °C
Storage temperature range	-20~+60 C

Mechanical

Mount	F-mount
Angle of view @ full size	53.7° × 37.2°
Dimensions (dia. x length, mm)	57.5 x 71
Front diameter	37.7 mm
Length at 0.4m	75
Picture size (largest format)	24x36mm
Weight (g)	430
