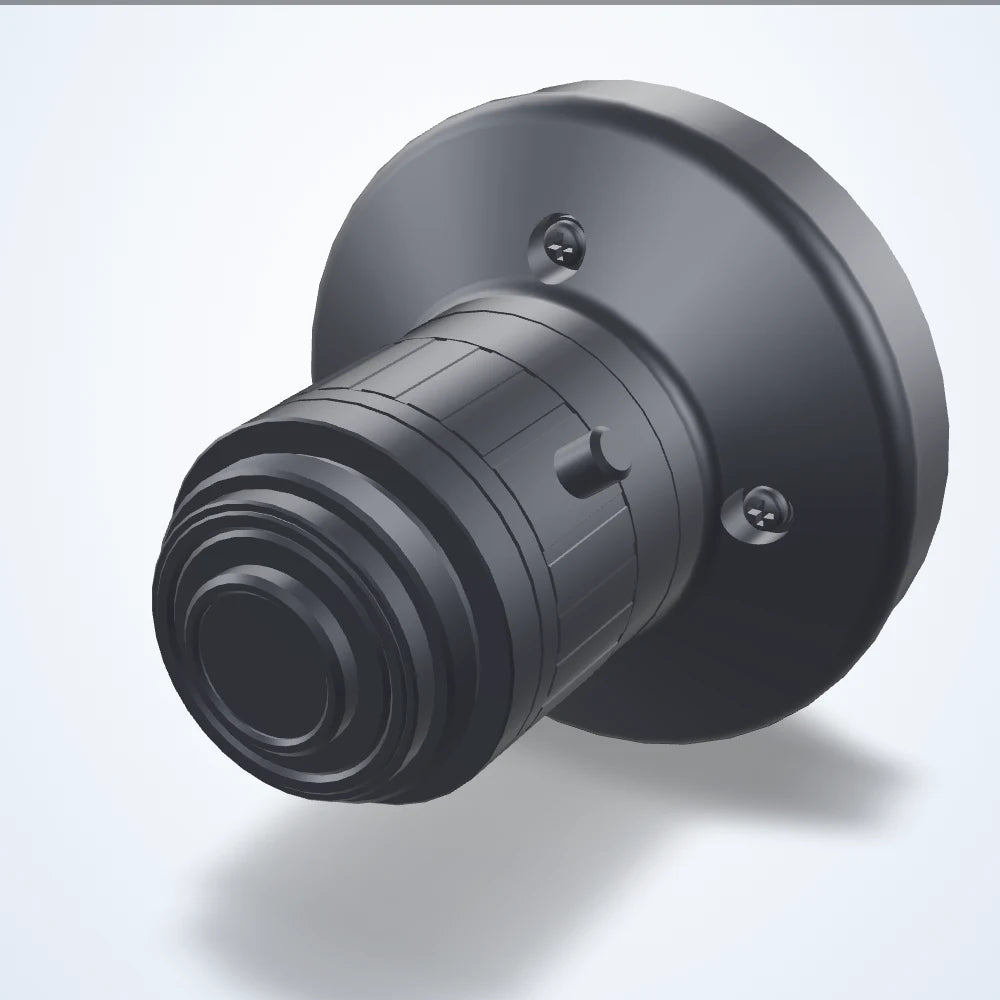

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
2.7 mm lens, 1", C-mount (LS-FFL-0095)
Model LS-FFL-0095
- Focal length2.7 mm
- MountC-mount
- Sensor1"
- Aperturef/1.8
- Resolution5
$569.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0095 |
|---|---|
| Minimum object distance | 200 mm |
| 1" | Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 1/3" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view @ 2/3″ | 185° x 185° |
| Distance between principle points | 49.85 mm |
| Exit pupil position | -49 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -35.00 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 14.85 mm |
| Spectrum | Visible |
Optics
| Focal length | 2.7 mm |
|---|---|
| Aperture (max) | f/1.8 |
| Back focal length | 9.75 mm |
| Filter thread | No Filter Threads |
| Focus control | Fixed |
| Iris control | Manual |
| TV distortion (%) | -0.53 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

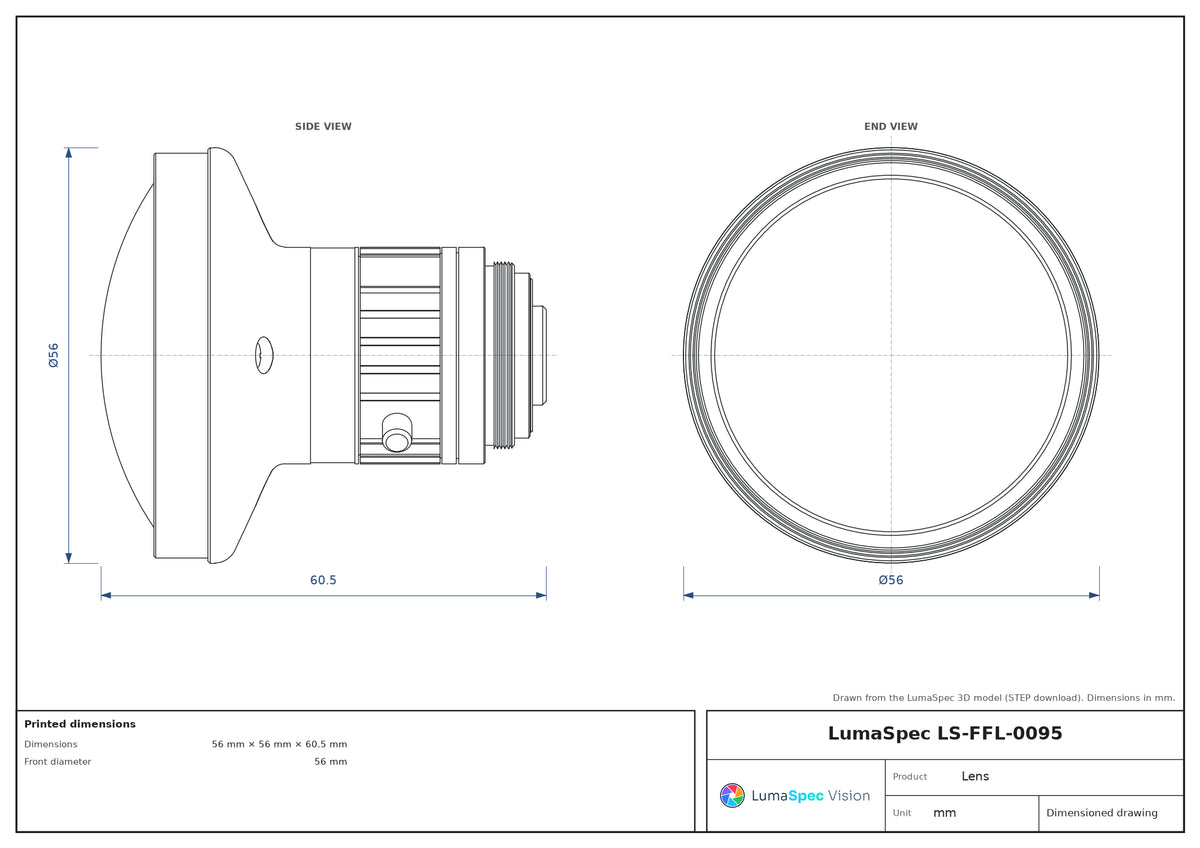

| Dimensions | 56 mm × 56 mm × 60.5 mm |
| Front diameter | 56 mm |
| Weight | 160 Grams |
LS-FFL-0095

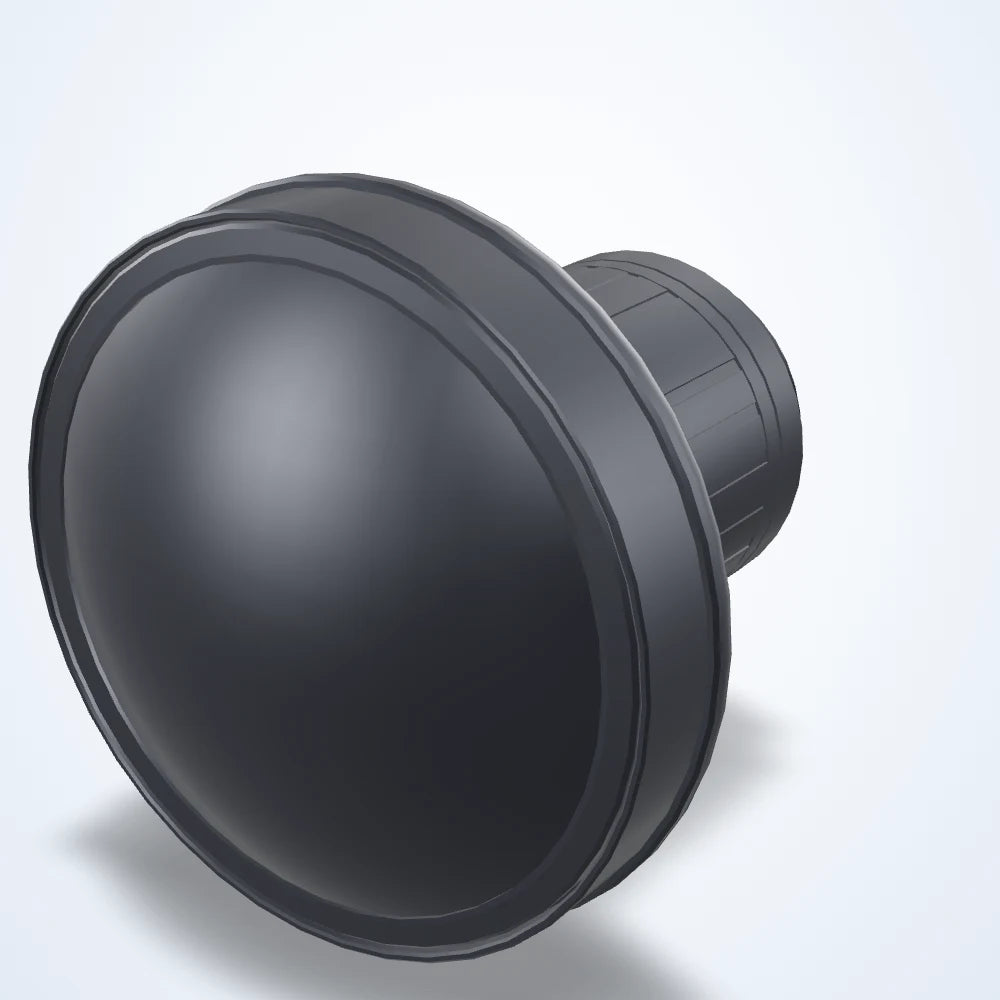

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 2.7 mm
- Sensor format
- 1"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Lens series, C-mount (S12) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0094 | 1.8 mm | $659.00 Quote | Lead time confirmed with your quote | View |
