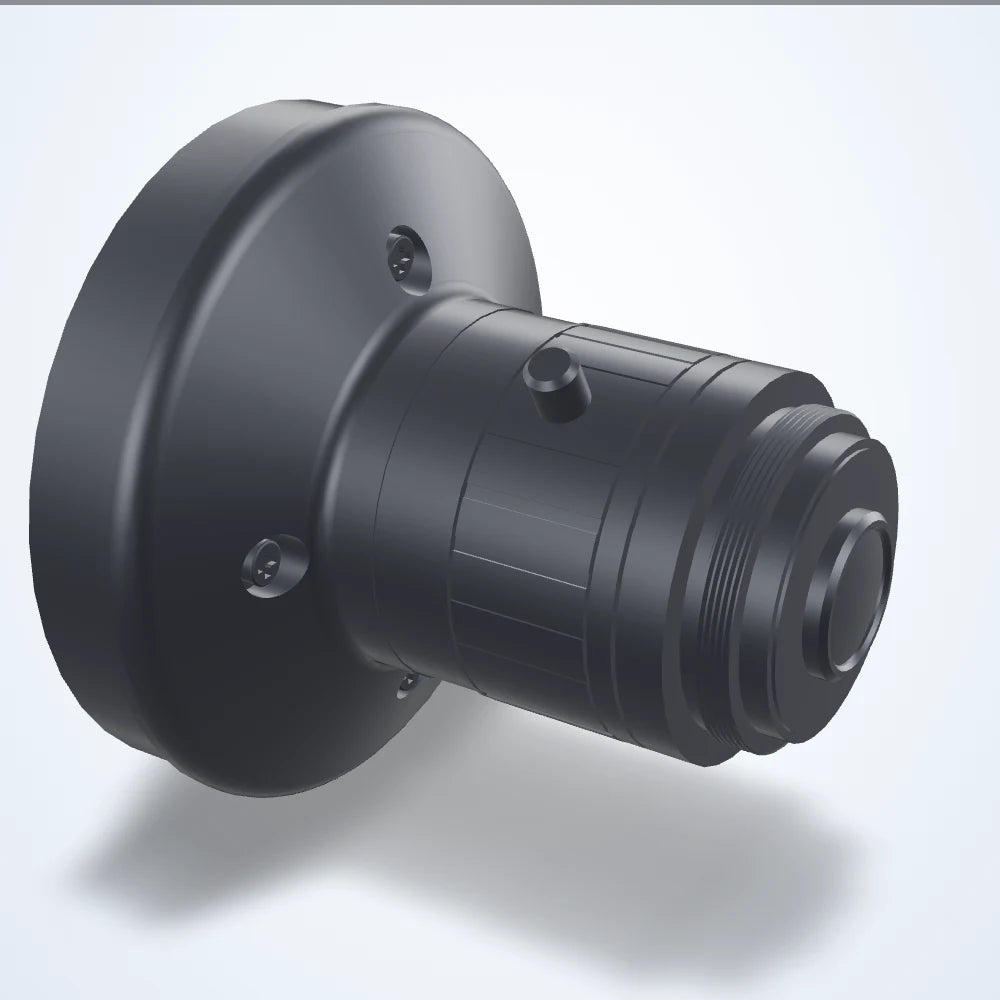

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
1.8 mm lens, 2/3", C-mount (LS-FFL-0094)
Model LS-FFL-0094
- Focal length1.8 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.4
- Resolution5
$659.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0094 |
|---|---|
| Minimum object distance | 100 mm |
| 1" | Not Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Not Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 1/3" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view @ 2/3″ | 185° x 185° |
| Distance between principle points | 53.30 mm |
| Exit pupil position | -61 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -37.55 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 15.75 mm |
| Spectrum | Visible |
Optics
| Focal length | 1.8 mm |
|---|---|
| Aperture (max) | f/1.4 |
| Back focal length | 9.70 mm |
| Filter thread | No Filter Threads |
| Focus control | Fixed |
| Iris control | Manual |
| TV distortion (%) | -0.8 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

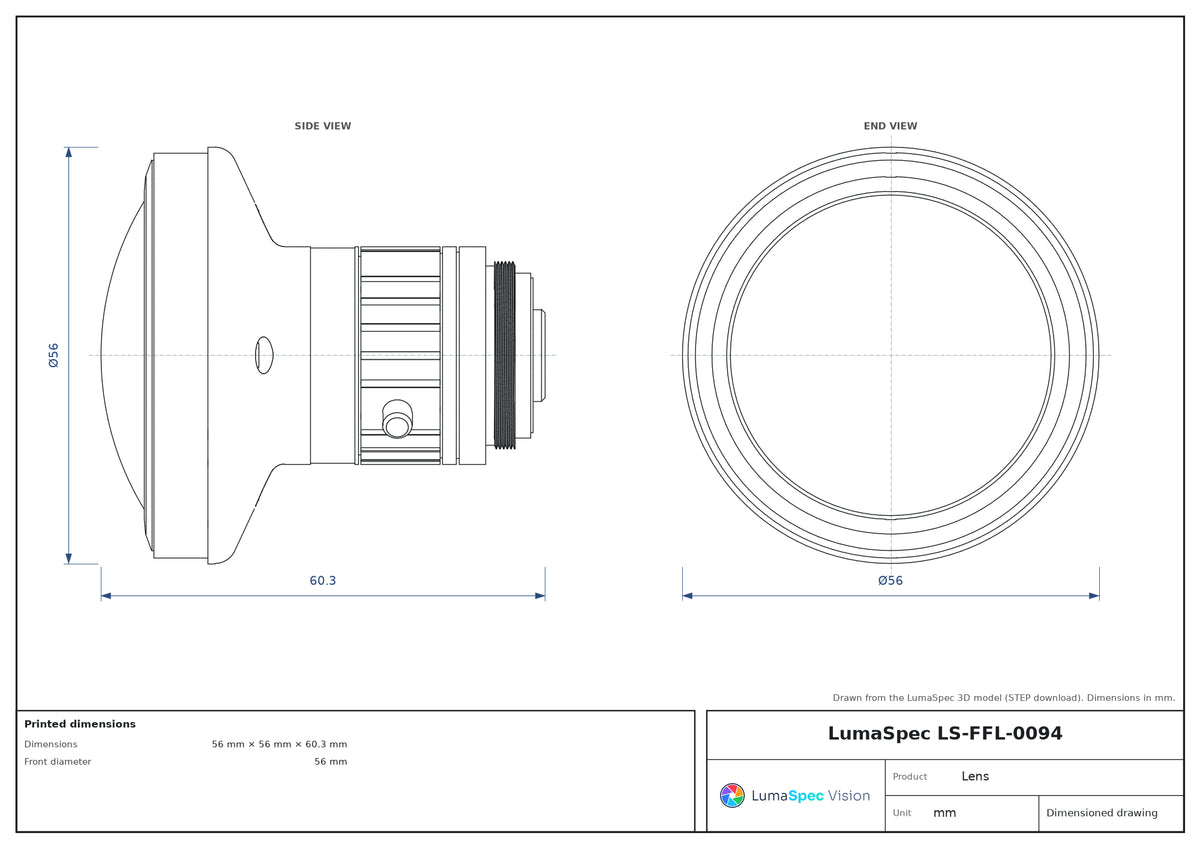

| Dimensions | 56 mm × 56 mm × 60.3 mm |
| Front diameter | 56 mm |
| Weight | 135 Grams |
LS-FFL-0094

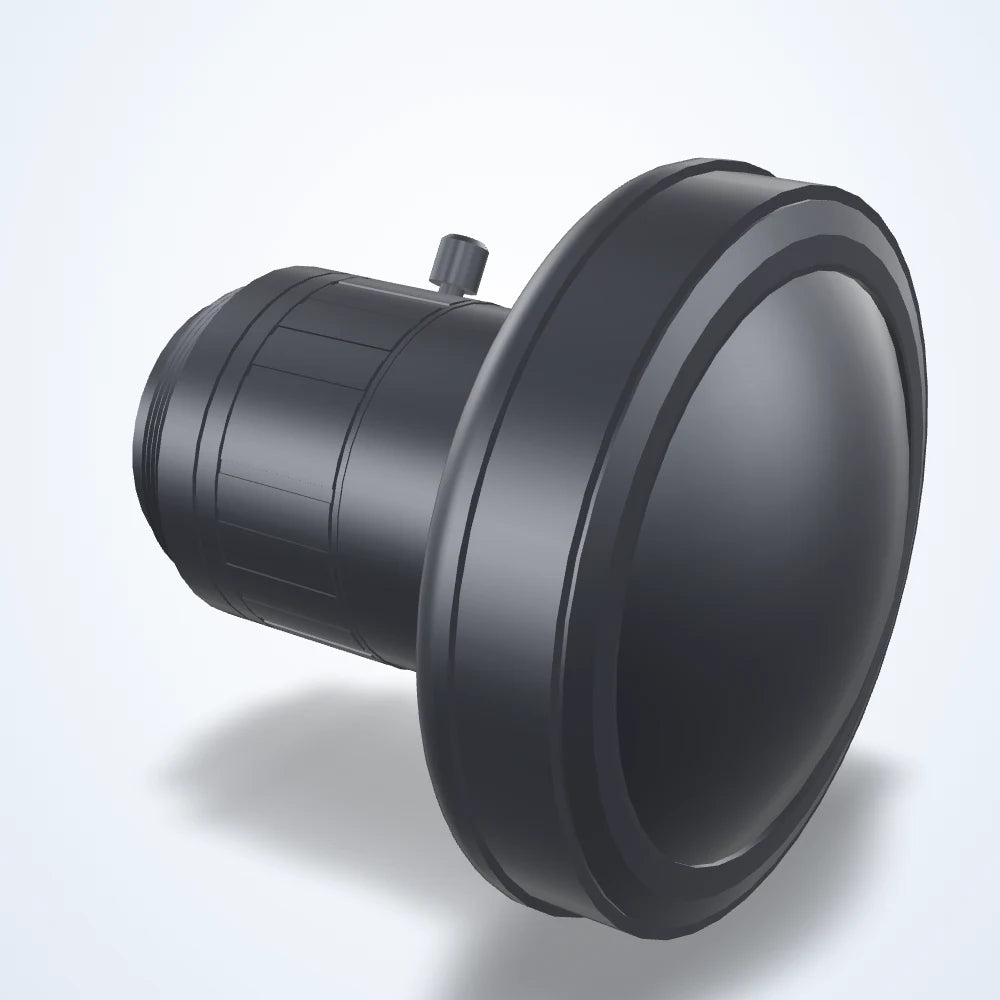

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 1.8 mm
- Sensor format
- 2/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
