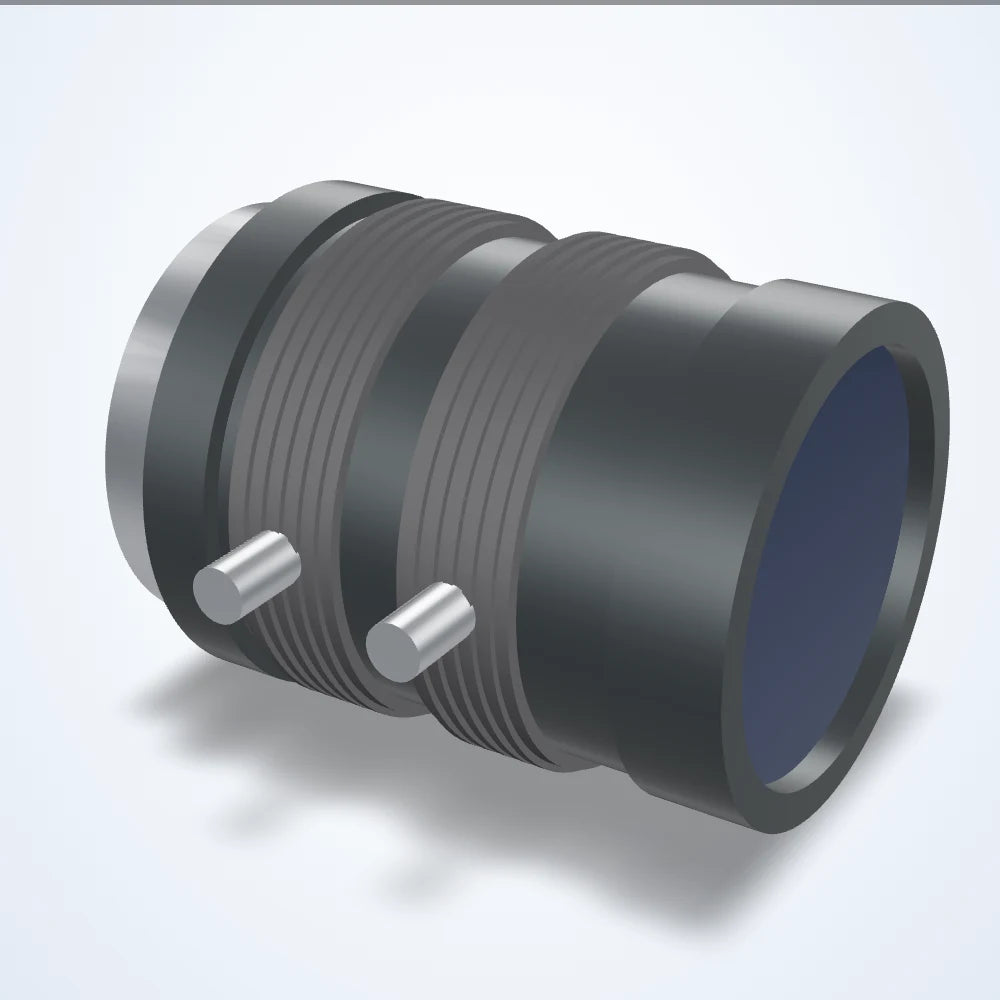

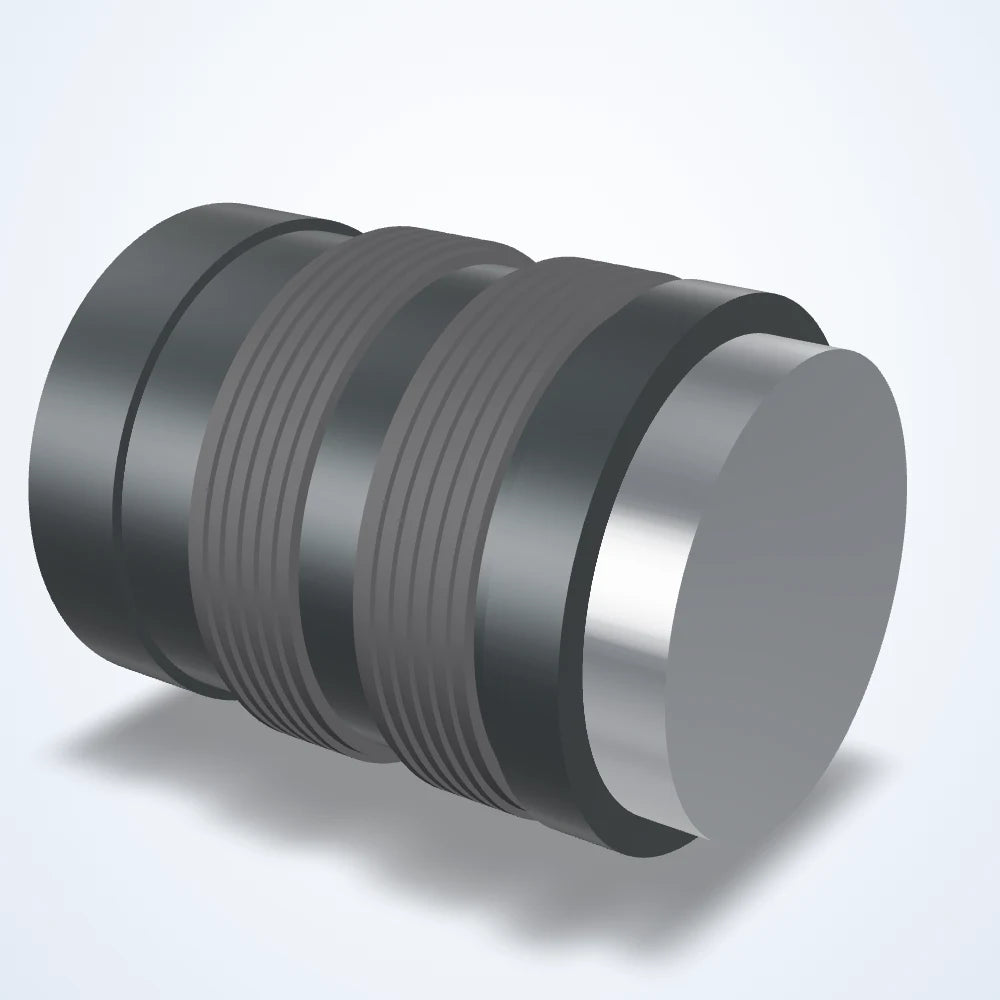

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
9 mm lens, 2/3", C-mount, filter thread M27.0x0.5 (LS-FFL-0080)
Model LS-FFL-0080
- Focal length9 (9.23)
- MountC-mount
- Sensor2/3"
- Working distance∞-100
- Aperturef/1.4
- Resolution1.5
$159.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0080 |
|---|---|
| 1" | Not Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Not Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view [deg] | 53.3 x 40.5 (2/3") |
| Distance between principal points | 21.21 |
| Exit pupil position (from image plane) [mm] | -28.33 |
| Flange back (mm) | 17.5 |
| Flange to thumb screw | 3.8 mm |
| Lens type | Fixed Focal Length |
| Rear protrusion behind flange | 5.2 mm at infinity |
| Spectrum | Visible |
| Thumb screw reach from axis | 17.80 mm each side |
Optics
| Aperture (max) | f/1.4 |
|---|---|
| Back focal distance | 13.48 mm (in air) |
| Filter thread | M27.0x0.5 |
| Flange focal distance | 17.526 mm (in air) |
| Focal length [mm] | 9 (9.23) |
| Iris range (f-number) | F1.4-F16 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Relative illumination (fully open aperture) | 32 |
| Tv distortion [%] | -2.00 |
| Working distance [mm] (from front of lens barrel) | ∞-100 |
Sensor and imaging
| Resolution (MP) | 1.5 |
|---|---|
| Sensor size (max) | 2/3" |
Environment and compliance
| Operating temperature | -10 to +50 C |
|---|

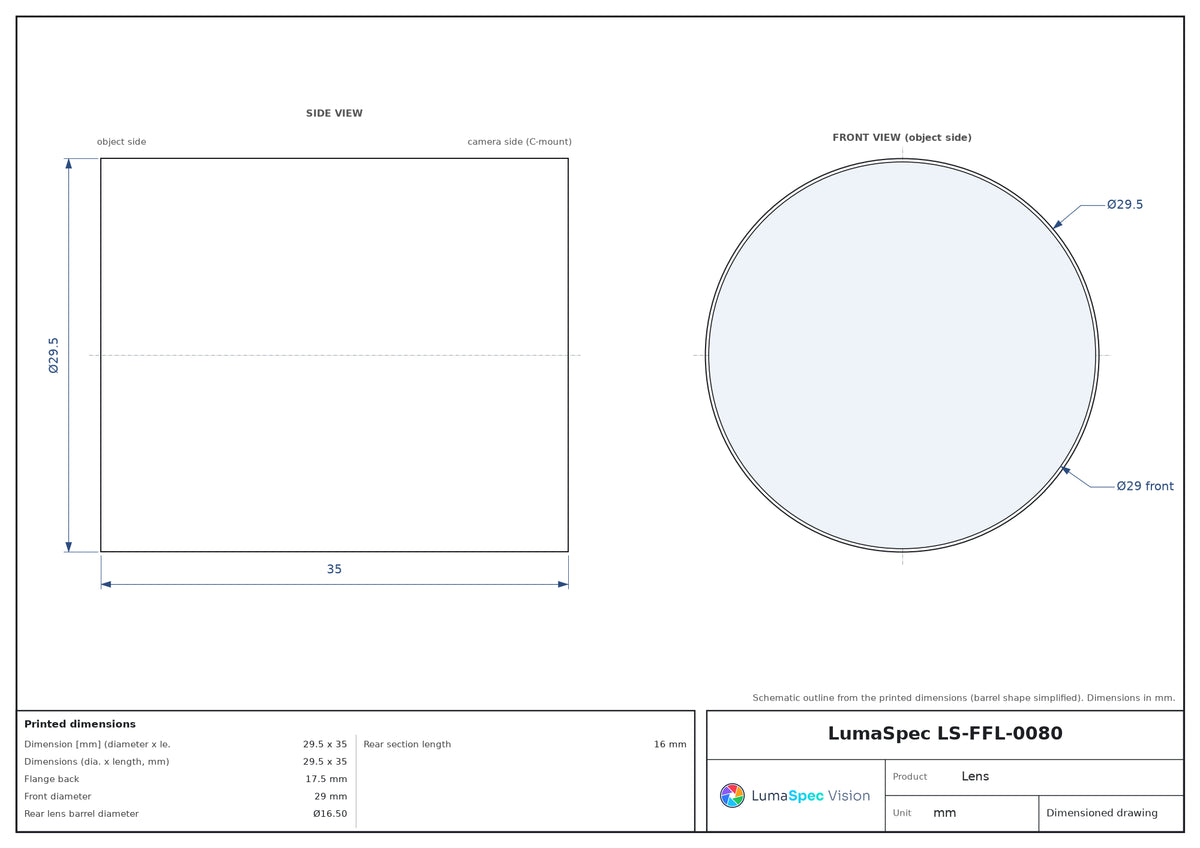

Mechanical
| Mount | C-mount |
|---|---|
| Dimension [mm] (diameter x length) | 29.5 x 35 |
| Dimensions (dia. x length, mm) | 29.5 x 35 |
| Front diameter | 29 mm |
| Front principle point (from mount) | -12.91 |
| Mount protrusion | 4 mm |
| Mount thread | 1-32UNF |
| Rear lens barrel diameter | Ø16.50 |
| Rear principle point (from mount) | 8.30 |
| Rear section length | 16 mm |
| Weight [g] | 55 |
