Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount, front diameter 29 mm (LS-FFL-0077)
Model LS-FFL-0077
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.6
- Resolution1.5
$139.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 250 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0077 |
|---|---|
| Minimum object distance | 250 mm |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (max) | f/1.6 |
| Filter thread | M25.5-0.5 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Mechanical
| Mount | C-mount |
|---|---|
| Front diameter | 29 mm |
| Weight | 40 Grams |

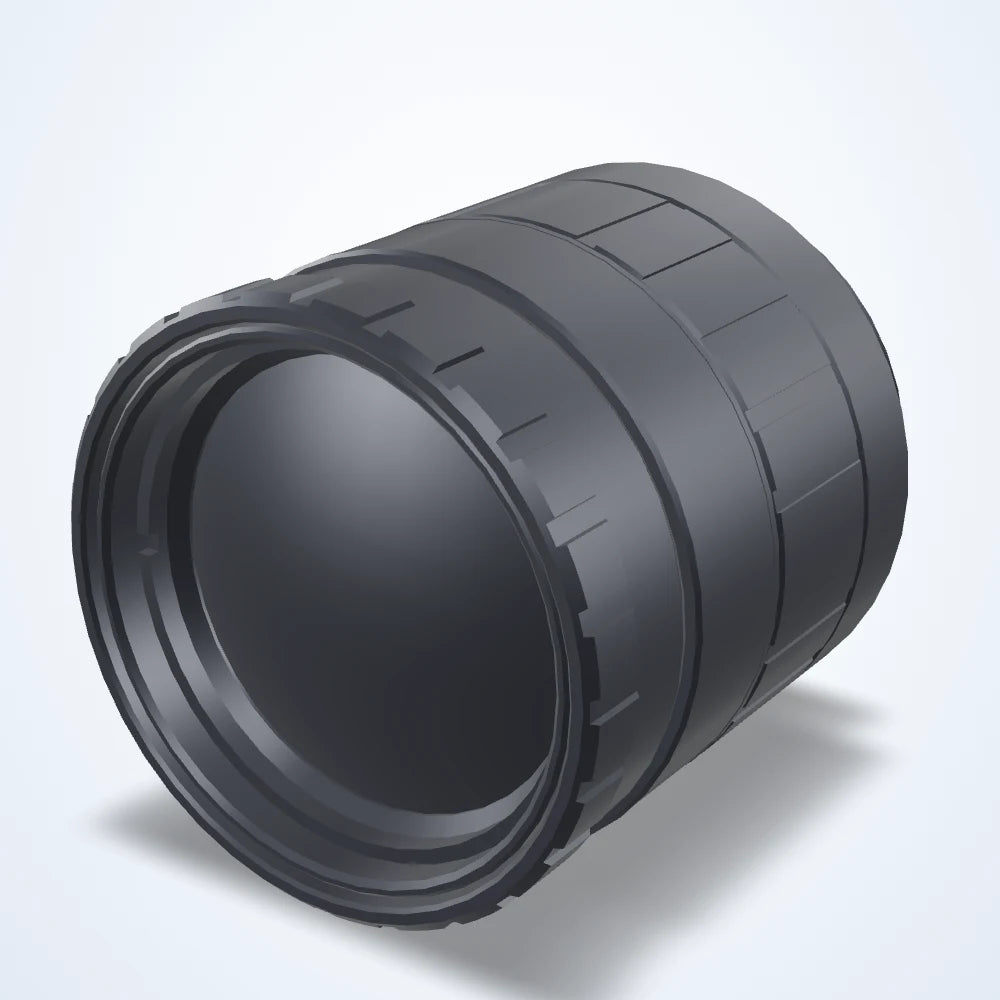

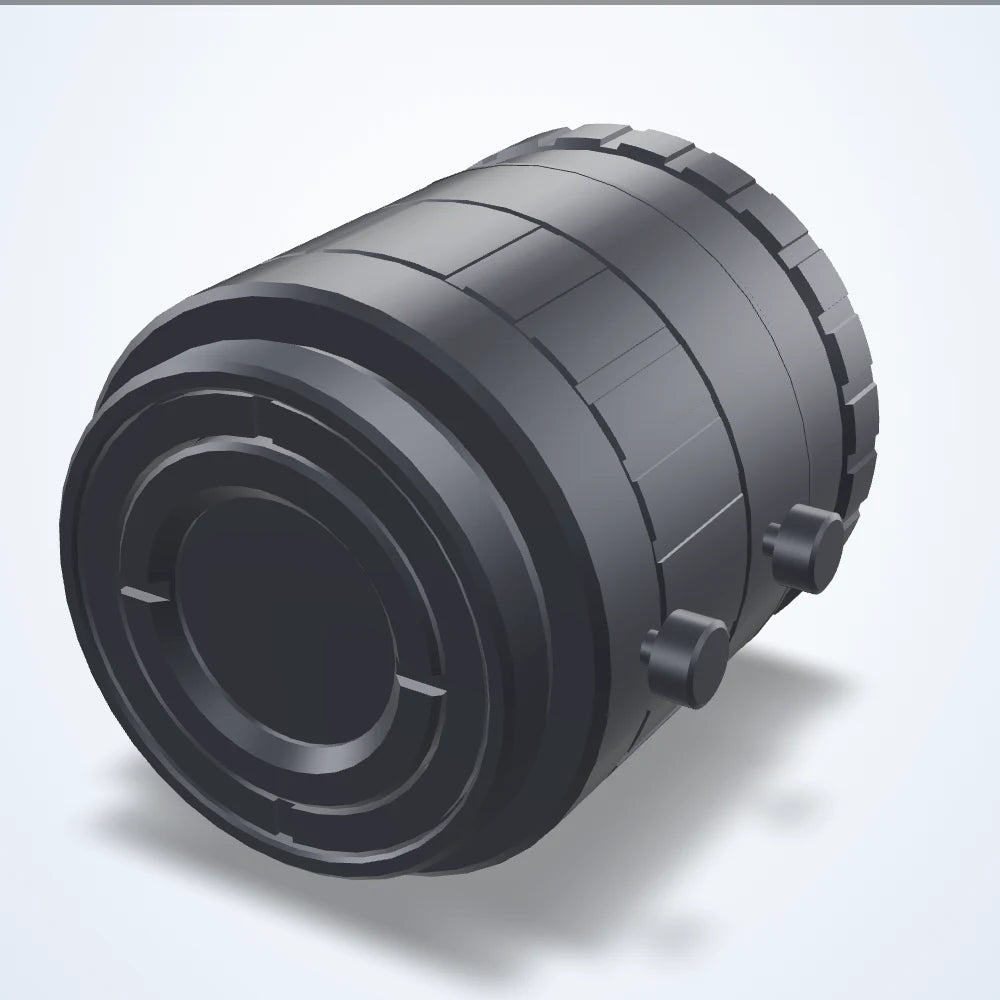

LS-FFL-0077
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 35 mm
- Sensor format
- 2/3"
- Mount
- C-mount

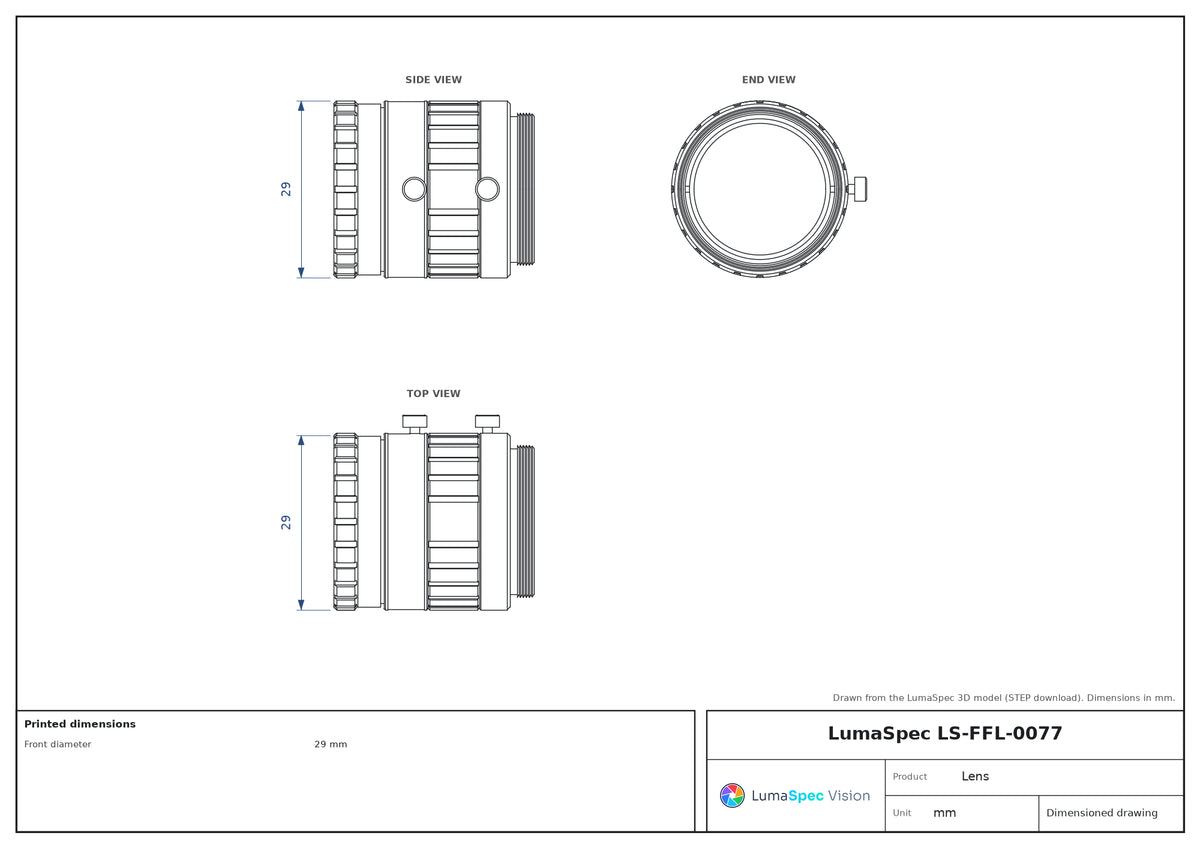

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
