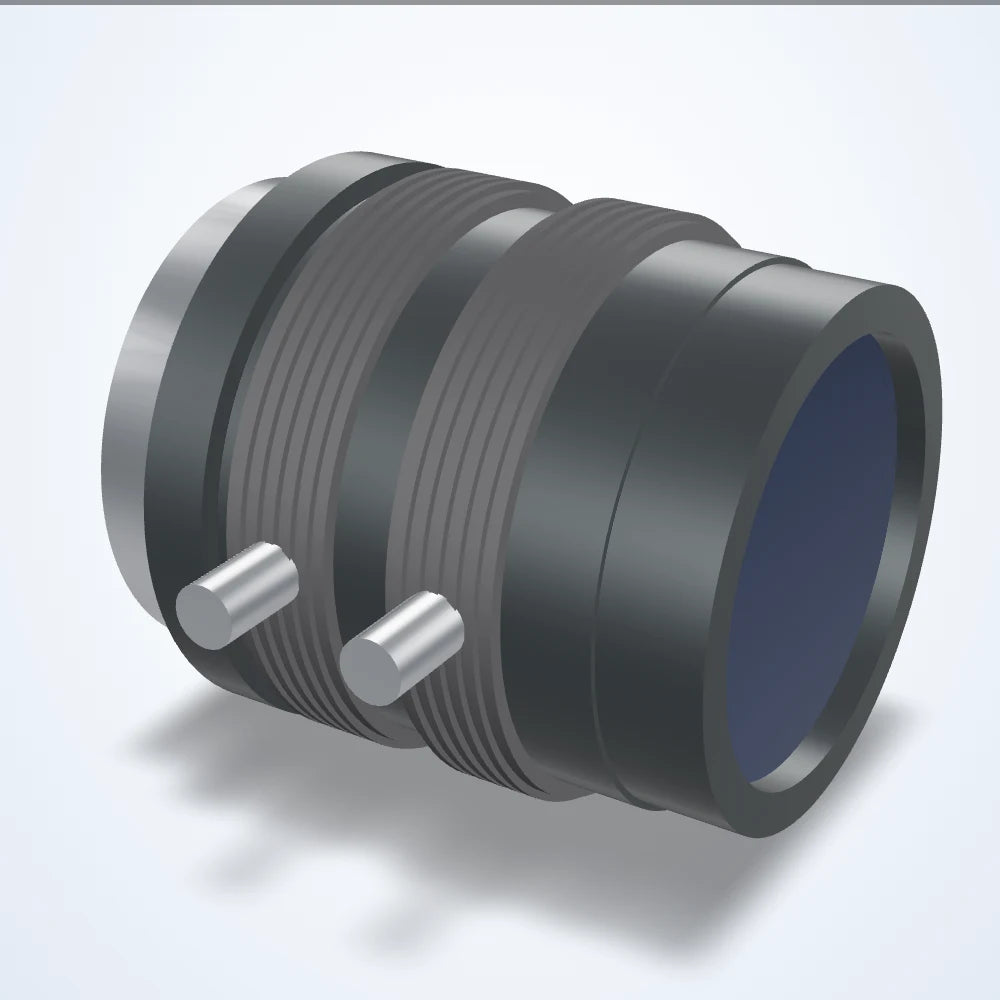

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-mount, f/1.4, 29 mm dia., dimensions 29.5 x 29.2 (LS-FFL-0075)
Model LS-FFL-0075
- MountC-mount
- Sensor2/3"
- Aperturef/1.4
- Resolution1.5
$139.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0075 |
|---|---|
| Flange to thumb screw | 3.80 mm |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Thumb screw reach from axis | 17.80 mm each side |
Optics
| Aperture (max) | f/1.4 |
|---|---|
| Back focal distance | 15.15 mm (in air) |
| Filter thread | M25.5x0.5 |
| Flange focal distance | 17.526 mm (in air) |
Sensor and imaging
| Resolution (MP) | 1.5 |
|---|---|
| Sensor format (derived) | 2/3", as named in the product title |
Mechanical
| Mount | C-mount |
|---|---|

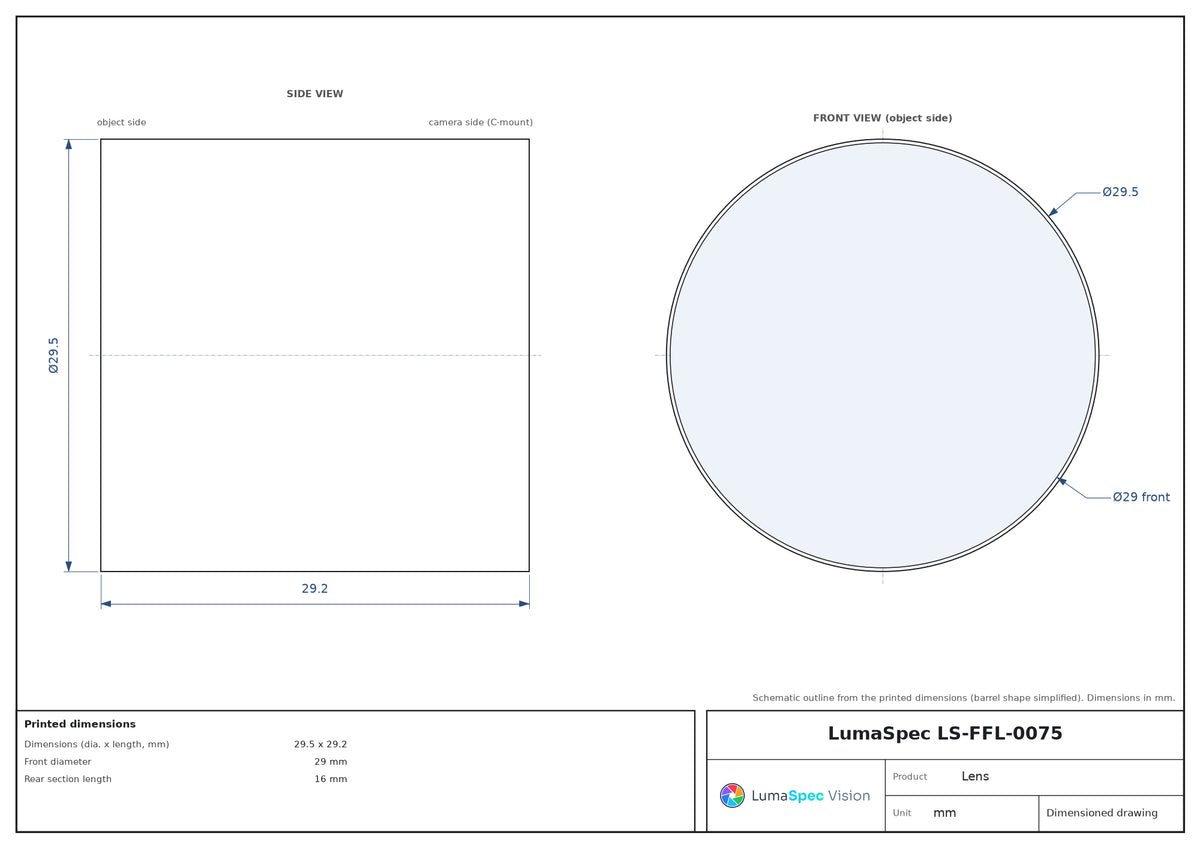

| Dimensions (dia. x length, mm) | 29.5 x 29.2 |
| Front diameter | 29 mm |
| Mount protrusion | 4 mm |
| Mount thread | 1-32UNF |
| Rear section length | 16 mm |

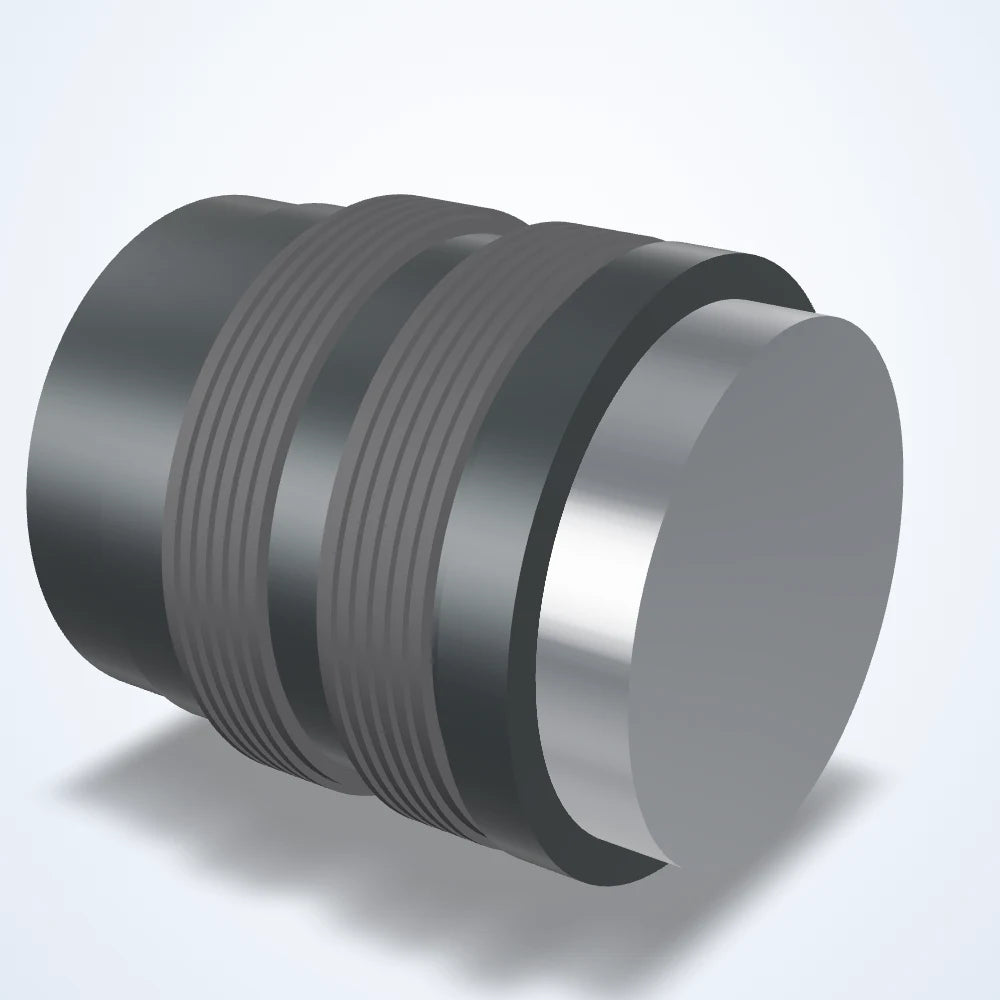

LS-FFL-0075
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Mount
- C-mount
- Aperture (max)
- f/1.4
- Back focal distance
- 15.15 mm (in air)
- Dimensions (dia. x length, mm)
- 29.5 x 29.2
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
