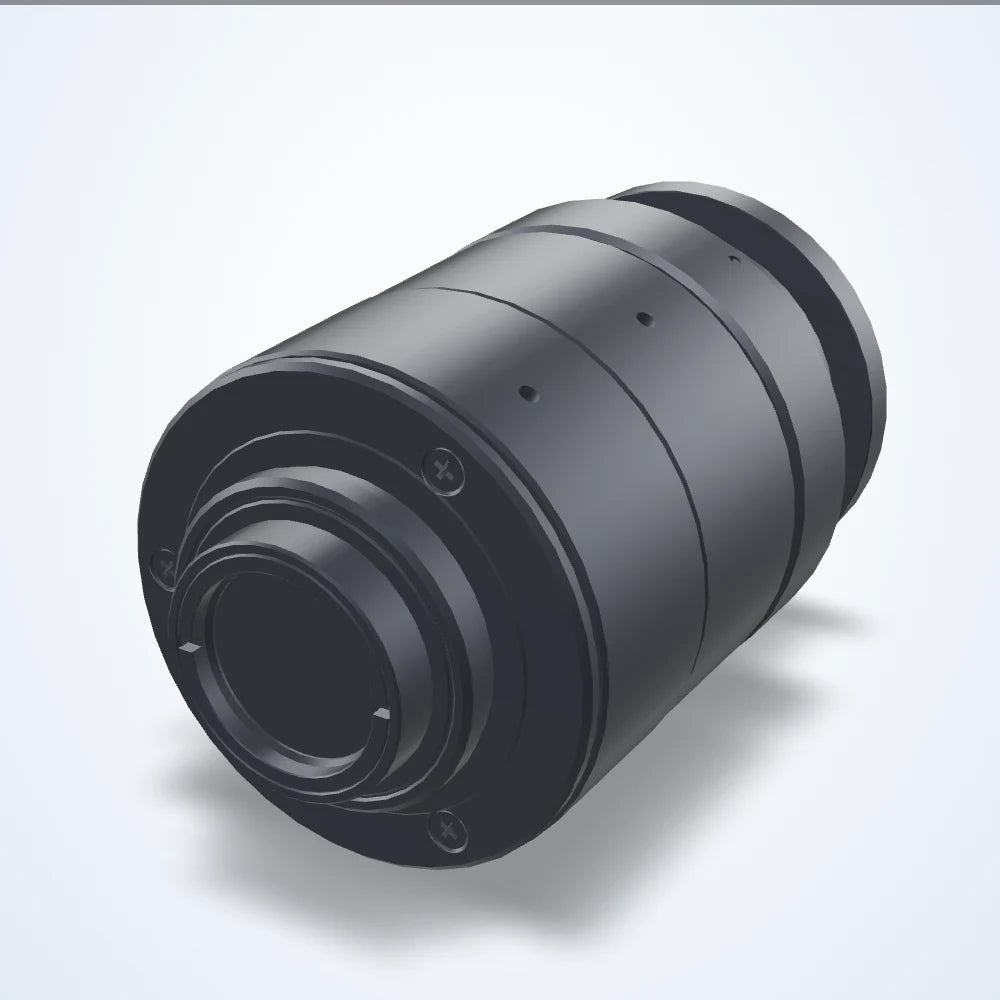

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1.1", C-mount, focus range 0.3 m - ∞ (LS-FFL-0057)
Model LS-FFL-0057
- Focal length35 mm
- MountC-mount
- Sensor1.1"
- Aperturef/2.8
- Resolution12
$629.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 300 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0057 |
|---|---|
| Minimum object distance | 300 mm |
| Aov @ 1.1″ h°×v°×d° | 22.9 × 16.9 × 28.2° |
| Aov @ 1″ h°×v°×d° | 20.7 × 15.6 × 25.8° |
| Aov @ 2/3″ h°×v°×d° | 14.3 × 10.8 × 17.9° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (max) | f/2.8 |
| Back focal length | 11.7 mm |
| Filter thread | M34.0-0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 17.6 mm |
| Image size dimensions | 14.2 mm x 10.4 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (MP) | 12 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

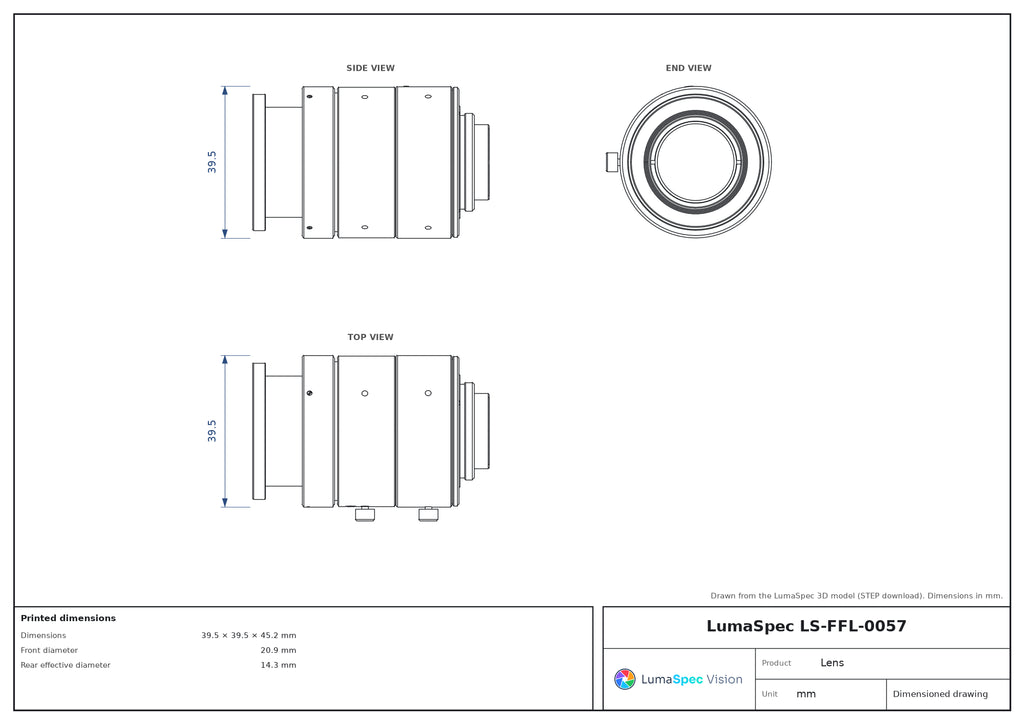

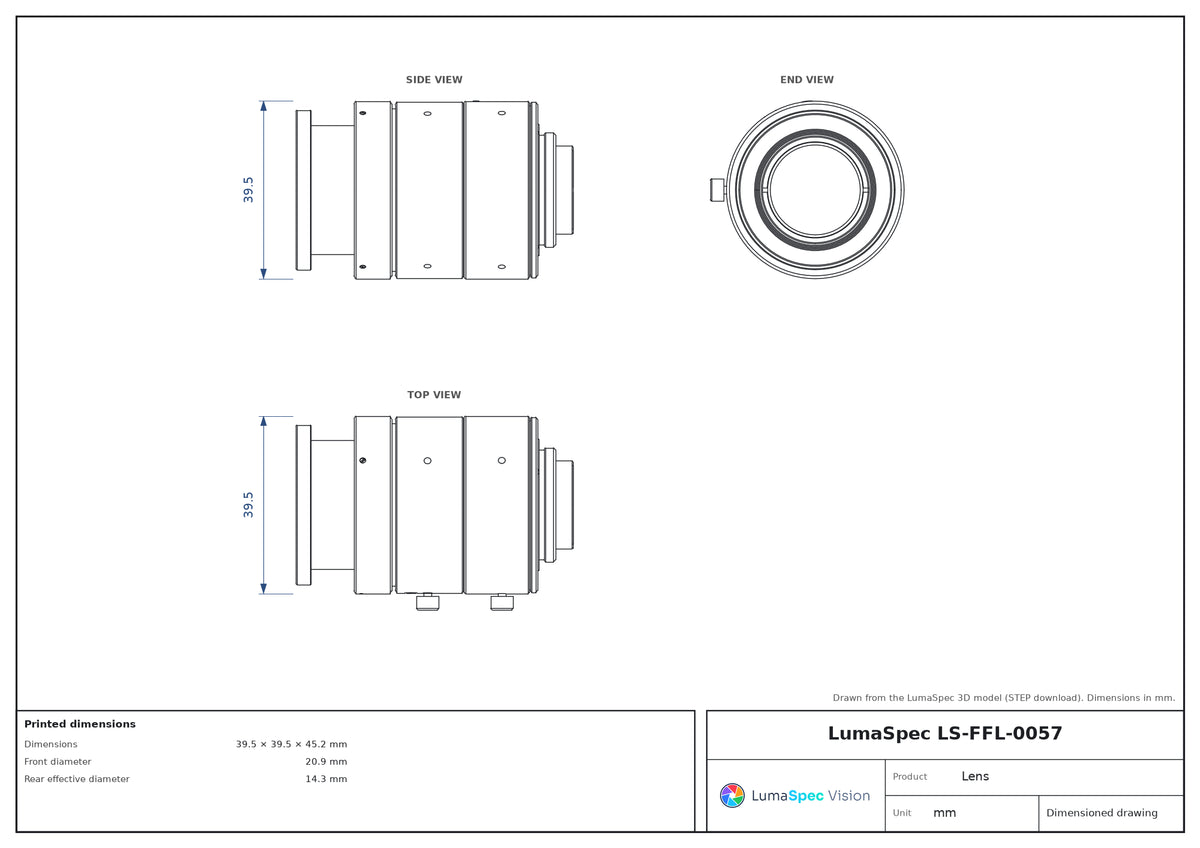

| Dimensions | 39.5 × 39.5 × 45.2 mm |
| Front diameter | 20.9 mm |
| Rear effective diameter | 14.3 mm |
| Weight | 103 |

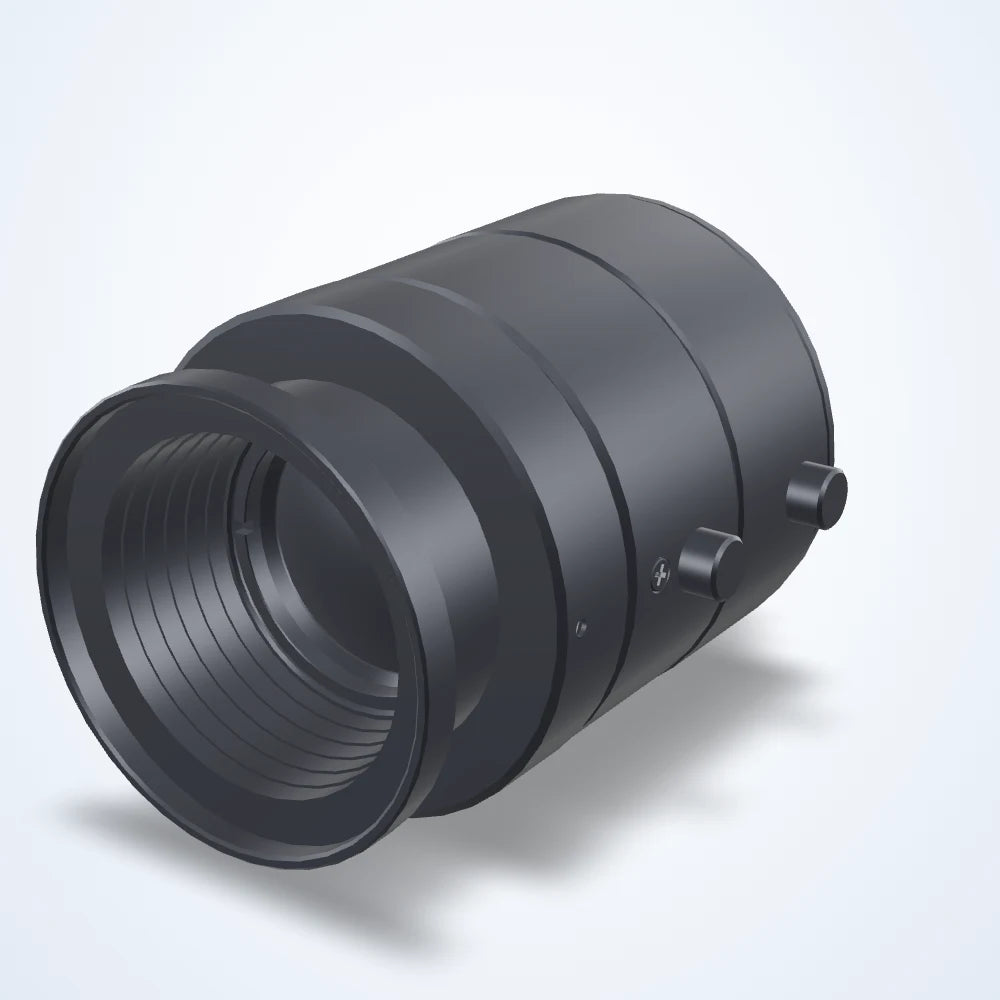

LS-FFL-0057
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 35 mm
- Sensor format
- 1.1"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
