Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 1.1", C-mount, back focus 10.6 mm (LS-FFL-0052)
Model LS-FFL-0052
- Focal length25 mm
- MountC-mount
- Sensor1.1"
- Aperturef/1.8
- Resolution12
$1,289.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 1000 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0052 |
|---|---|
| Minimum object distance | 1000 mm |
| Aov @ 1.1″ h°×v°×d° | 31.8 × 23.6 × 38.8° |
| Aov @ 1″ h°×v°×d° | 28.8 × 21.8 × 35.6° |
| Aov @ 2/3″ h°×v°×d° | 20.0 × 15.1 × 24.9° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (max) | f/1.8 |
| Back focal length | 10.6 mm |
| Filter thread | M40.5-0.5 |
| Focus control | Manual |
| Focus range | 1 m - ∞ |
| Image circle | 17.6 mm |
| Image size dimensions | 14.2 mm x 10.4 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (MP) | 12 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 46 × 46 × 50.8 mm |
| Front diameter | 23.6 mm |
| Rear effective diameter | 16.6 mm |
| Weight | 158.9 |

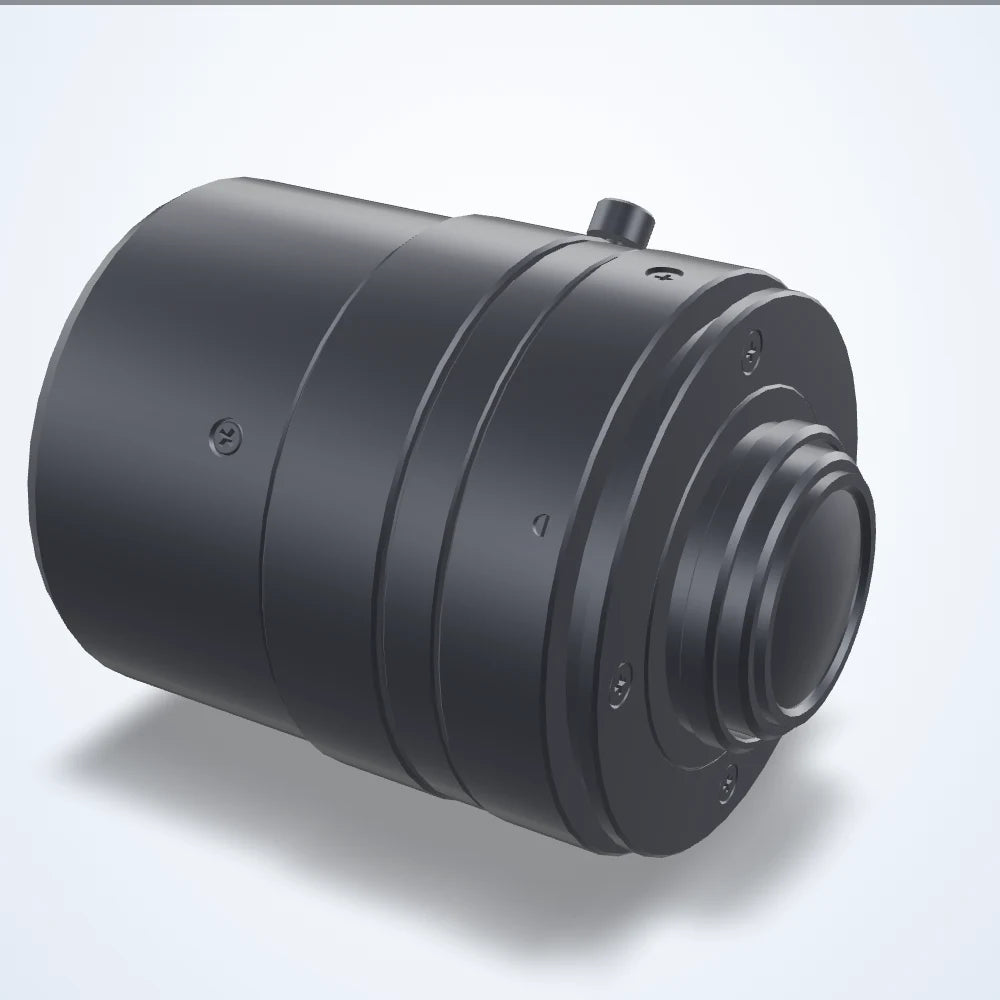

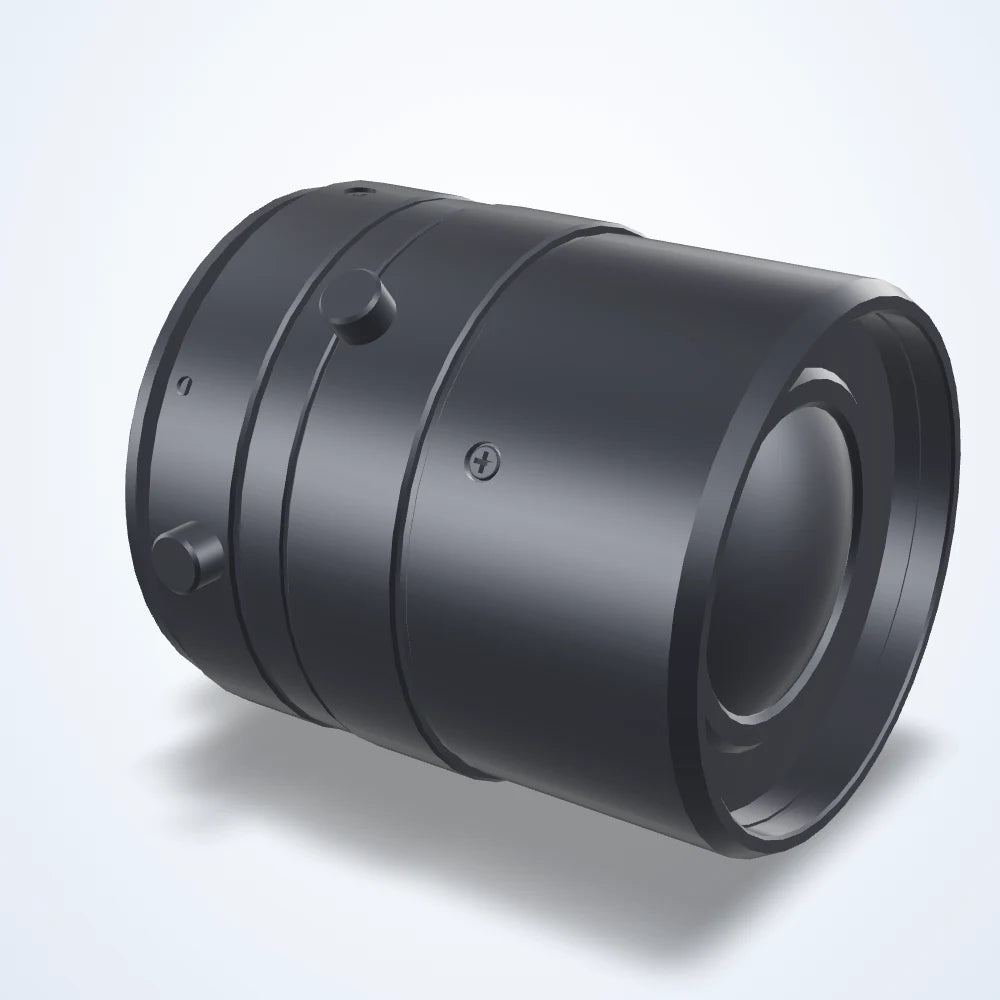

LS-FFL-0052
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 25 mm
- Sensor format
- 1.1"
- Mount
- C-mount

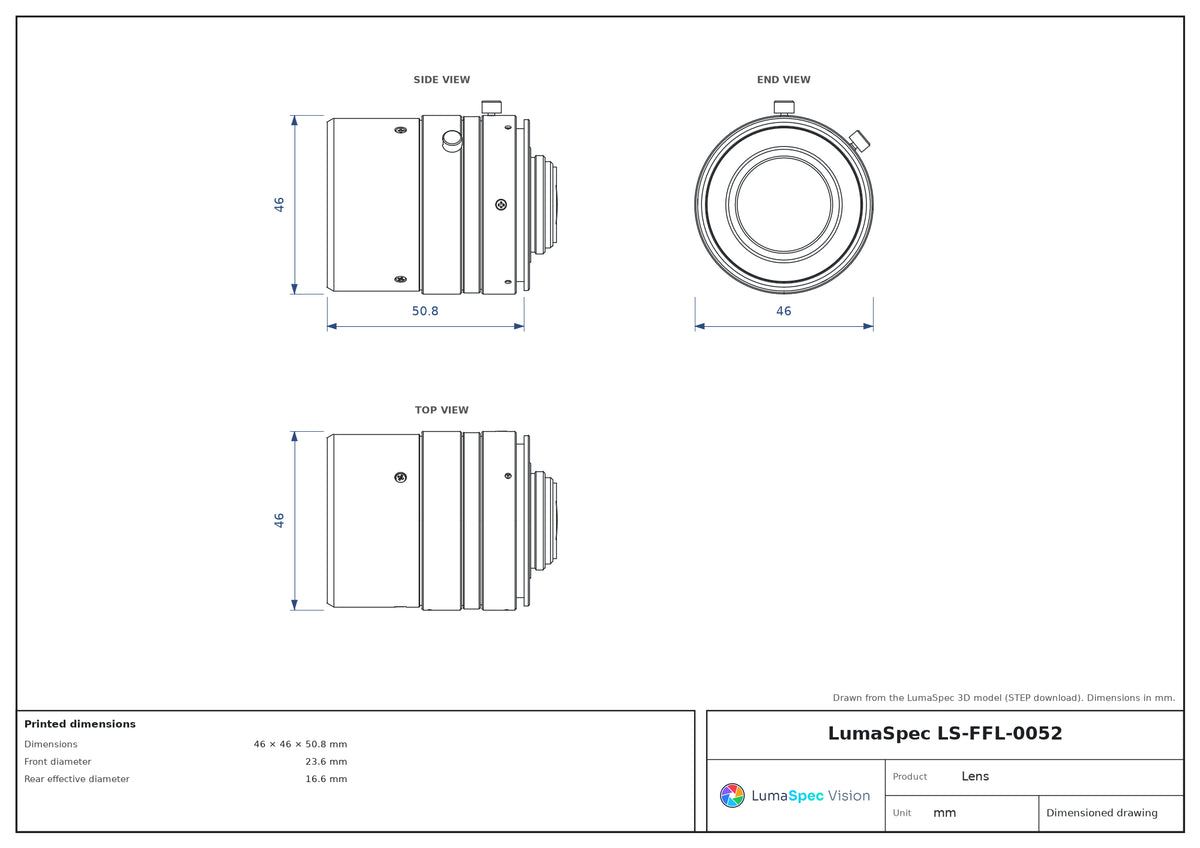

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
