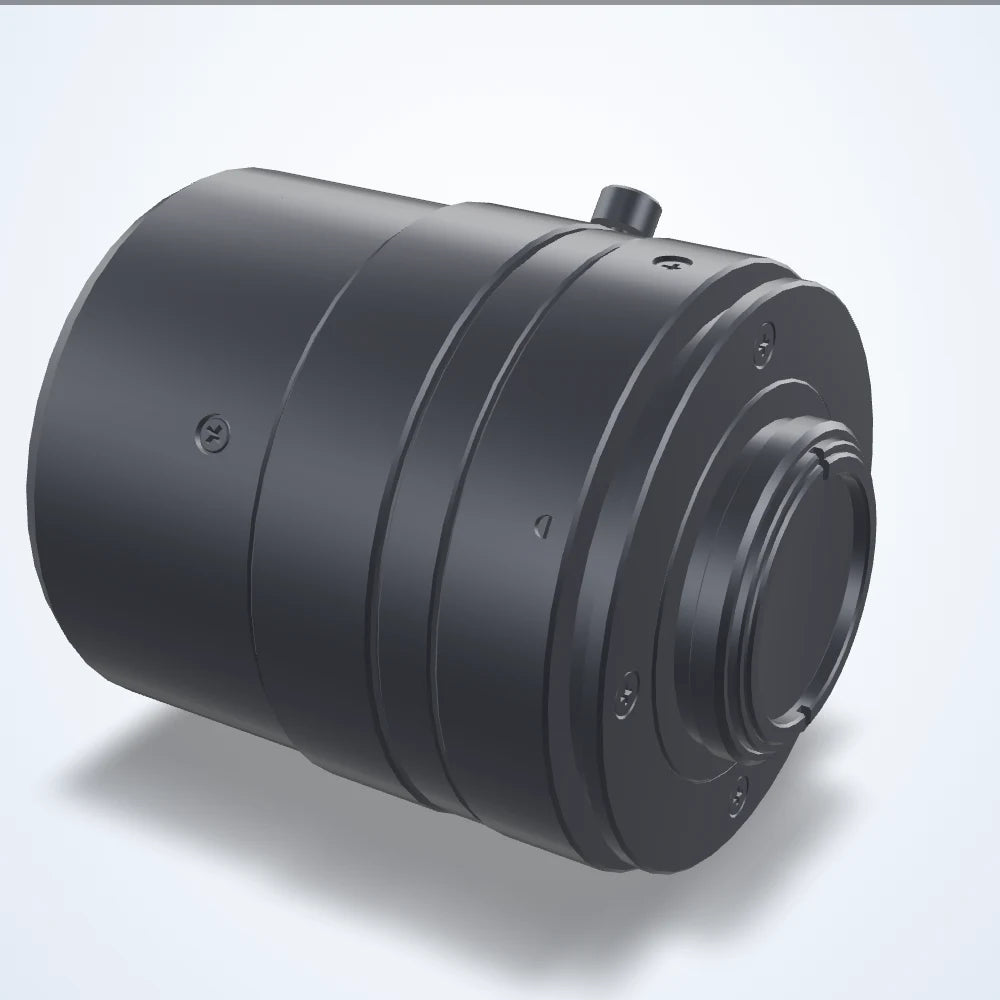

  • 35 mm lens, 1.1", C-mount, focus range 2 m - ∞ (LS-FFL-0055)

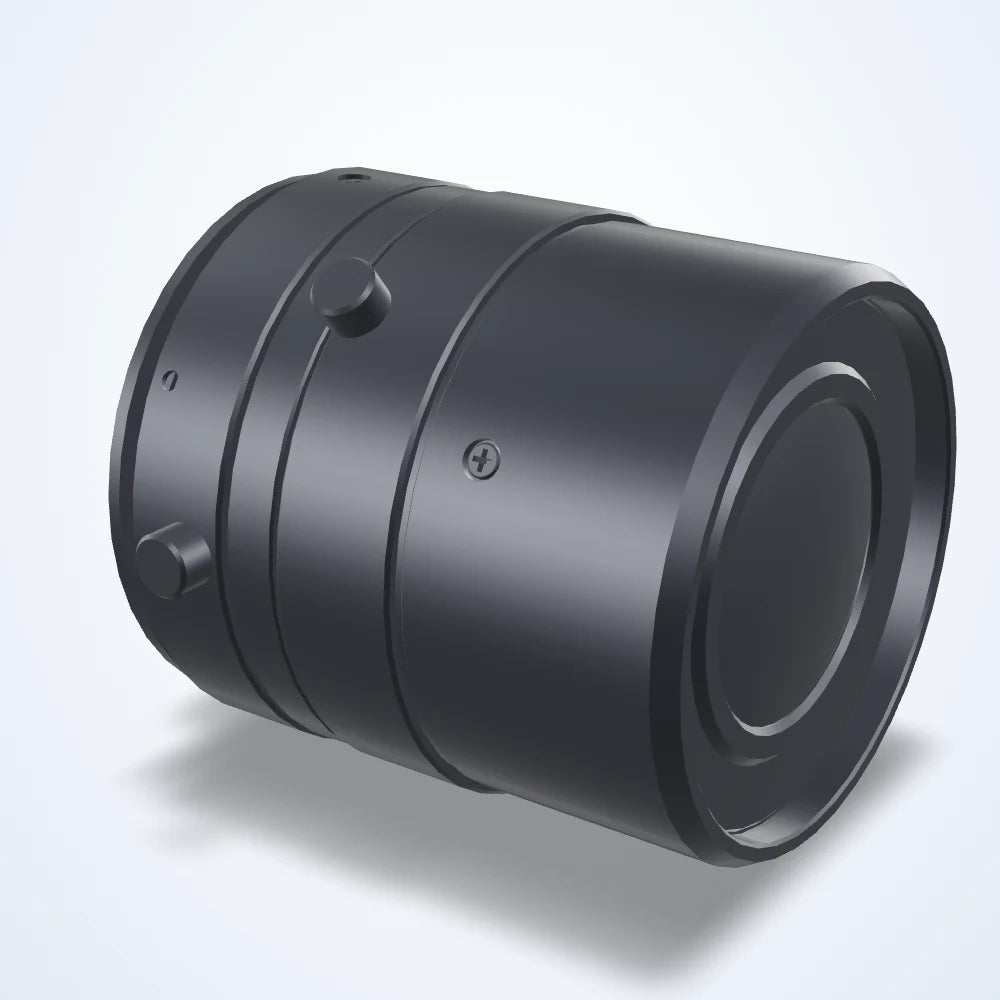

  • 35 mm lens, 1.1", C-mount, focus range 2 m - ∞ (LS-FFL-0055) - view 2

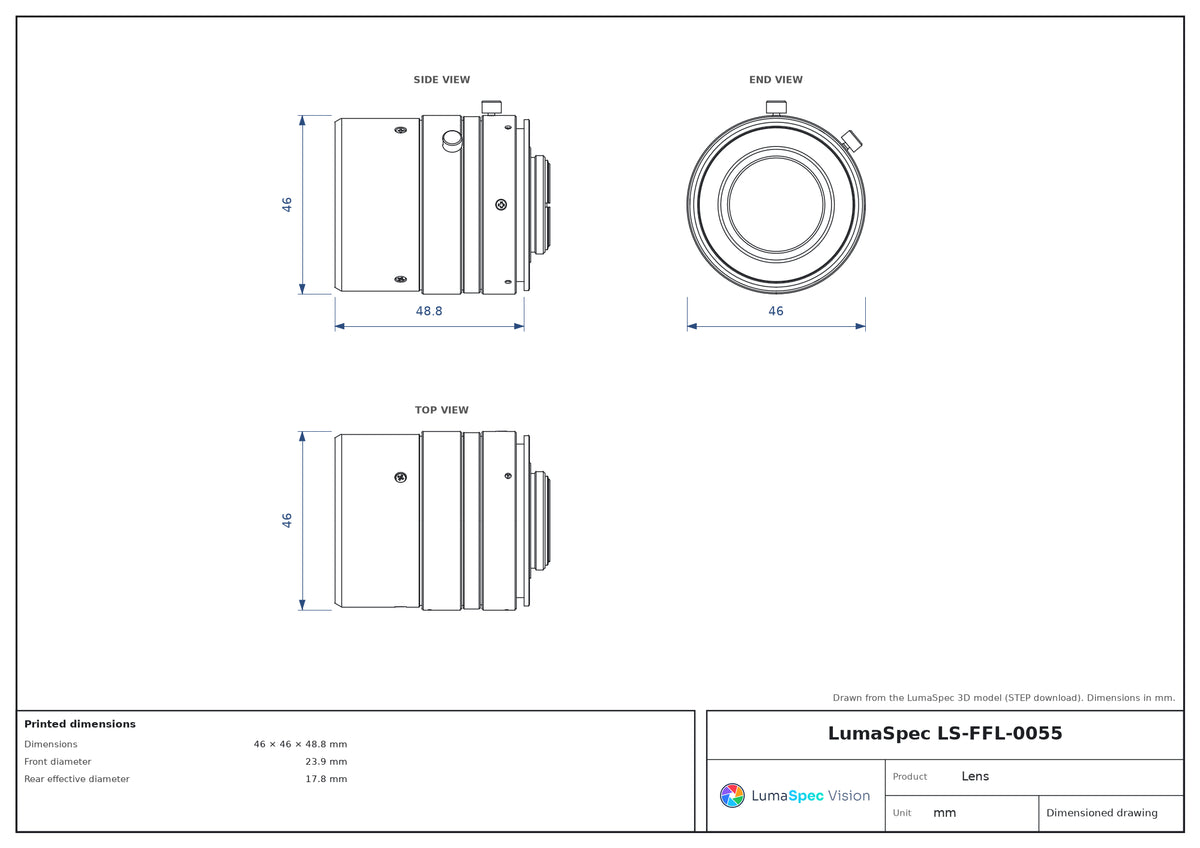

  • LS-FFL-0055 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm lens, 1.1", C-mount, focus range 2 m - ∞ (LS-FFL-0055)

Model LS-FFL-0055

  • Focal length35 mm
  • MountC-mount
  • Sensor1.1"
  • Aperturef/1.8
  • Resolution12
$1,289.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

35 mm lens, 1.1", C-mount, focus range 2 m - ∞ (LS-FFL-0055)LS-FFL-0055

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 2000 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0055
Minimum object distance2000 mm
Aov @ 1.1″ h°×v°×d°20.2 × 16.5 × 27.4°
Aov @ 1″ h°×v°×d°25.1 × 15.2 × 25.1°
Aov @ 2/3″ h°×v°×d°14.0 × 10.5 × 17.4°
Lens typeFixed Focal Length
SpectrumVisible + NIR
Zoom rangeFixed

Optics

Focal length35 mm
Aperture (max)f/1.8
Back focal length14.2 mm
Filter threadM40.5-0.5
Focus controlManual
Focus range2 m - ∞
Image circle17.6 mm
Image size dimensions14.2 mm x 10.4 mm
Iris controlManual

Sensor and imaging

Sensor format1.1"
Resolution (MP)12

Environment and compliance

Operating temperature range-10 to +50 °C

Mechanical

MountC-mount
Dimensions46 × 46 × 48.8 mm
Front diameter23.9 mm
Rear effective diameter17.8 mm
Weight153

LS-FFL-0055

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-FFL-0055 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Focal length
35 mm
Sensor format
1.1"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
