Fixed lens for FA, 1.1" 20MP, 16 mm, C-Mount (LS-FA1616A)

Model LS-FA1616A

Focal length16 mm
MountC-mount
Sensor1.1"
ApertureF2.8-22
Resolution20MP
Field of view46.3° x 36°

$459.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Ultra-high imaging quality 1.1" FA lenses supporting 20MP area scan cameras, with high relative illumination, big aperture, distortion <0.1%, focus from 0.1 m to infinity; compatible with 1" and 2/3" sensors.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FA1616A
F/NO	2.8-22
EFL	16mm
MOD	0.1m

Optics

Distortion	<0.1%
Image size	1.1"
Image size (dia.)	1.1"
Field of view angle 1.1"	46.3° x 36°
Field of view angle 1"	43.6° x 33.4°
Field of view angle 2/3"	30.8° x 23.3°
Distortion (TV) 1.1"	<0.5%
Focal length (mm)	16
Aperture	F2.8-22

Sensor and imaging

Resolution	20MP
Sensor format	1.1"

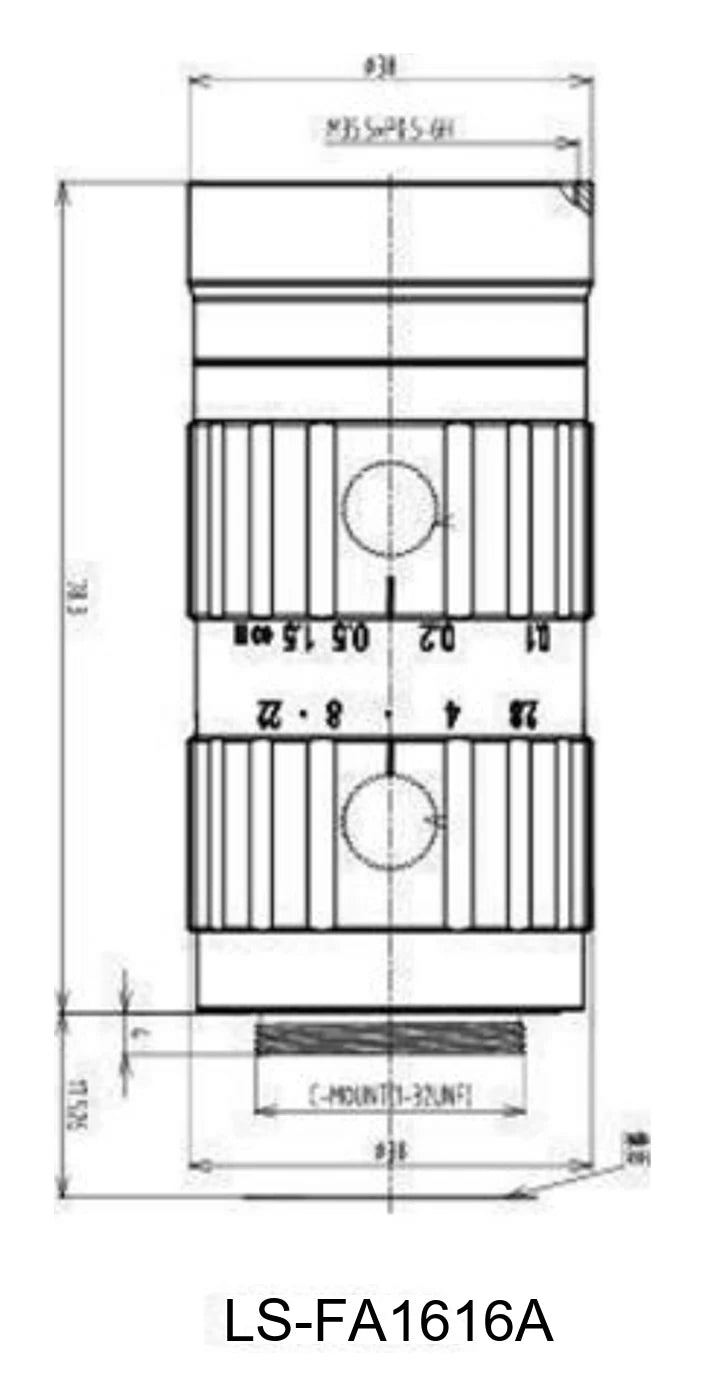

Mechanical

Mount	C-Mount
Filter size	M35.5×P0.5
Shipping weight	0.38 kg

Downloads

Datasheet (PDF)LS-FA1616A · 1.2 MB

Features

Ultra-high imaging quality
Support 20MP area scan cameras
High relative illumination, with big aperture
Distortion <0.1%
Focus range from 0.1 m to infinity
Compatible with 1" and 2/3" sensor

Applications

Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
Electronic component: blemish / stain - detecting camera defects
Liquid crystal, semiconductor: geometrical measurement - detect IC wire bending
Electronic component: connector - connector pin flatness detection
