Representative photo of this series
Dome lights
31 mm Dome light source (LS-DS50)
Model LS-DS50
- ColourRed, Green, Blue, White
- Voltage24 V
- Wavelength red620-630 nm
- Wavelength green520-530 nm
$109.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Diffuse light comes from a dome-shaped reflector, giving diffuse-reflection shadowless lighting suitable for undulating surfaces and reflective objects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DS50 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |

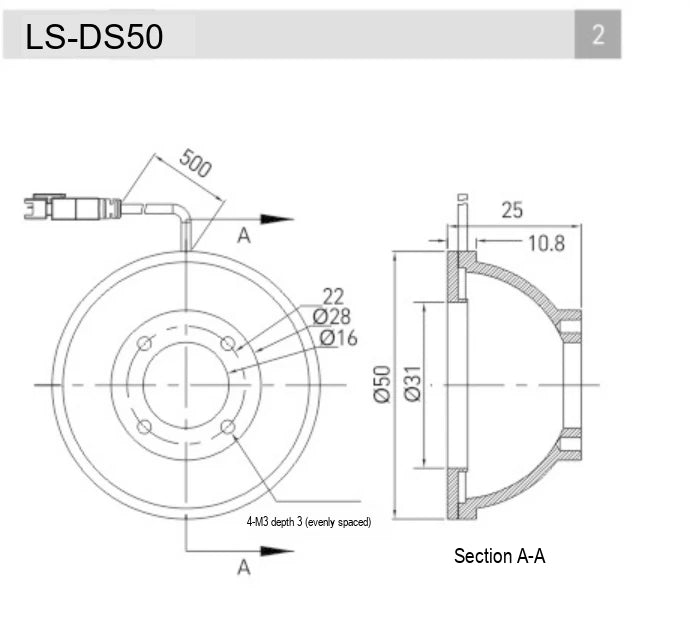

| Overall OD (mm) | 50 |
| Camera hole ID (mm) | 16 |
| Overall H (mm) | 25 |
Interfaces and I/O
| Cable | 500 mm |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Illuminance chart reference | LS-DS116-W; uniformity LS-DS175-W, FOV 80 x 80 mm at LWD 20/40/60 mm |
| Luminous size (mm) | 31 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-DPS series, LS-APS series, LS-SPS series, LS-HAPS series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 2.3 |
| Power G/B/W (W) | 5.6 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-DPS, LS-APS |
Mechanical
| Mounting | 4-M3 depth 3 (evenly spaced) |
|---|---|
| Shipping weight | 0.20 kg |
