66 mm Dome light source (LS-DOM-0092)
  • 66 mm Dome light source (LS-DOM-0092)
  • LS-DOM-0092 dimensions (mm)

Representative photo of this series

Dome lights

66 mm Dome light source (LS-DOM-0092)

Model LS-DOM-0092-R

  • ColourRed, Green, Blue, White
  • Wavelength red620-630 nm
  • Wavelength green520-530 nm
  • Wavelength blue465-475 nm
$439.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

66 mm Dome light source (LS-DOM-0092)LS-DOM-0092-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-DOM-0092: overall OD 116 mm, camera hole ID 25 mm, luminous size 66 mm, overall H 59.4 mm.

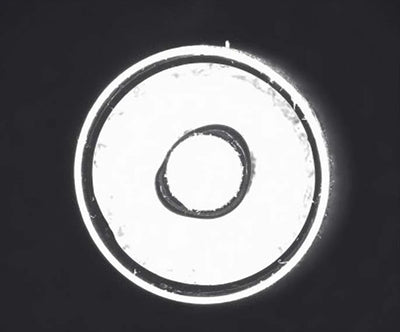

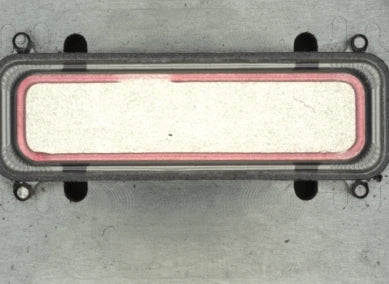

Diffuse light comes from a dome-shaped reflector, giving diffuse-reflection shadowless lighting suitable for undulating surfaces and reflective objects.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0092
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall OD (mm)116
Camera hole ID (mm)25
Overall H (mm)59.4

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Luminous size (mm)66

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)12
Power G/B/W (W)17
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Shipping weight0.50 kg

Engineering data

Drive and fit the LS-DOM-0092

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 VRed: 500 mAGreen / Blue / White: 708 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 17 W
Operating temperature0 to 40 °C

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

20 W per channel at 24 V for this 17 W light

24 W per channel at 24 V for this 17 W light

30 W per channel at 24 V for this 17 W light

24 W per channel at 24 V for this 17 W light

24 W per channel at 24 V for this 17 W light

21.9 W per channel at 24 V for this 17 W light

Other models in the Dome light source (LS-DOM-S15) series

See all 8 models
ModelSizePriceAvailabilityLink
LS-DOM-0092This model66 mm$439.00 Ships in 2-3 weeks
LS-DOM-008926 mm$169.00 Ships in 2-3 weeks View
LS-DOM-009031 mm$179.00 Ships in 2-3 weeks View
LS-DOM-009148 mm$279.00 Ships in 2-3 weeks View
LS-DOM-0093116 mm$709.00 Ships in 2-3 weeks View
LS-DOM-0094138 mm$839.00 Ships in 2-3 weeks View
LS-DOM-0095193 mm$1,239.00 Ships in 2-3 weeks View
LS-DOM-0096500 mm$6,449.00 Ships in 2-3 weeks View
