Dome lights

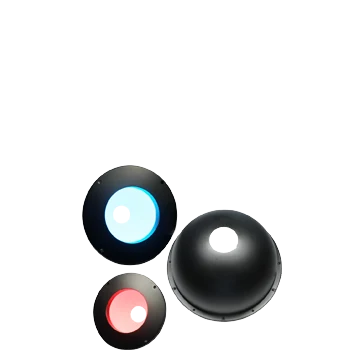

Dome Light, 260 mm dia., White (LS-DOM-0112)

Model LS-DOM-0112

ColourWhite
Emitting areaΦ193 mm
Power41 W
Voltage24 V

$1,299.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Dome Light, 260 mm dia., White. Specially processed hemispherical diffuse wall for uniform diffuse lighting High-power SMD LEDs for high brightness

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-DOM-0112

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	White
Color temperature	6000~7000K
Emitting area dimension	Φ193 mm
Diffuse plate included	Included

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Electrical

Power	41 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

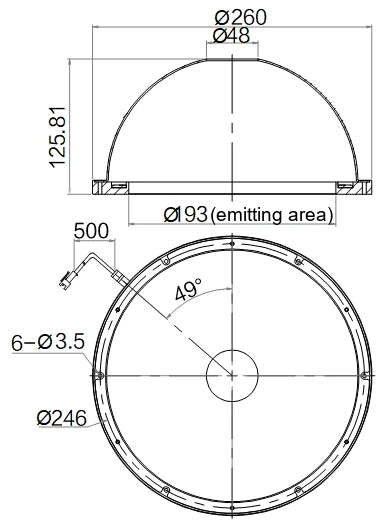

Mechanical

Outer dimension	Φ260 mm
Bore dimension	Φ48 mm
Shipping weight (estimated)	0.66 kg
