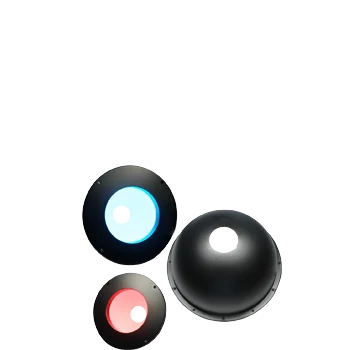

Dome Light, 116 mm dia., Red (LS-LGSS-116-R)
  • Dome Light, 116 mm dia., Red (LS-LGSS-116-R)
  • LS-LGSS-116-R dimensions (mm)

Dome lights

Dome Light, 116 mm dia., Red (LS-DOM-0107)

Model LS-DOM-0107

  • ColourRed
  • Emitting areaΦ66 mm
  • Power11 W
  • Wavelength625 nm
$439.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Dome Light, 116 mm dia., Red (LS-DOM-0107)LS-DOM-0107

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Dome Light, 116 mm dia., Red. Specially processed hemispherical diffuse wall for uniform diffuse lighting High-power SMD LEDs for high brightness

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0107

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorRed
Wavelength625 nm
Emitting area dimensionΦ66 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power11 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Outer dimensionΦ116 mm
Bore dimensionΦ25 mm
Shipping weight (estimated)0.66 kg

Other models in the Dome lights (LS-DOM-S18) series

See all 6 models
ModelSize / key dataPriceAvailabilityLink
LS-DOM-0108 116 mm dia., White $439.00 3 in stock View
LS-DOM-0110 175 mm dia., White $729.00 4 in stock View
LS-DOM-0109 175 mm dia., Red $729.00 5 in stock View
LS-DOM-0111 198 mm dia., White $859.00 4 in stock View
LS-DOM-0112 260 mm dia., White $1,299.00 4 in stock View
