Dome lights

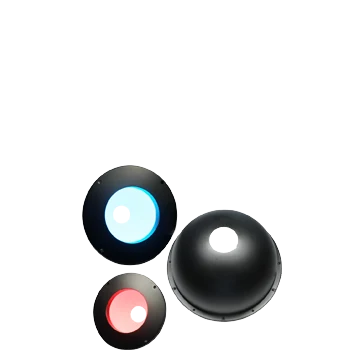

Dome Light, 175 mm dia., Red (LS-DOM-0109)

Name: Dome Light, 175 mm dia., Red (LS-DOM-0109)
Brand: LumaSpec Vision
SKU: LS-DOM-0109
Price: 729.0 USD
Availability: InStock

Model LS-DOM-0109

$729.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Dome Light, 175 mm dia., Red. Specially processed hemispherical diffuse wall for uniform diffuse lighting High-power SMD LEDs for high brightness

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

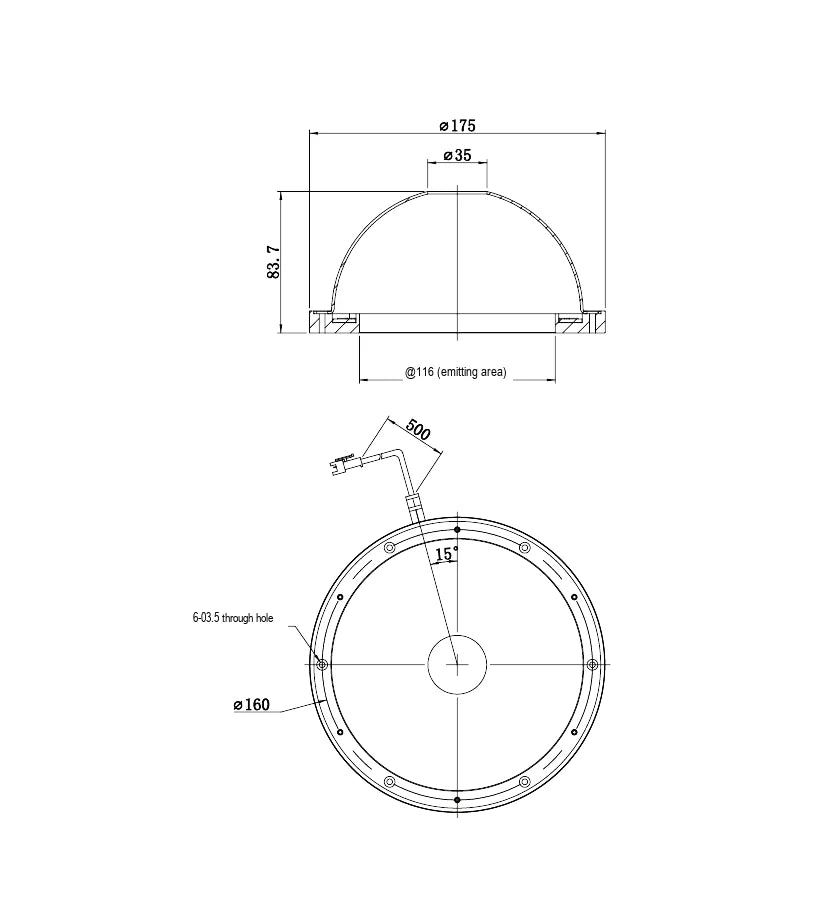

Specifications

Model	LS-DOM-0109

Connector type	SMR-03V-B
Cable length	500 mm

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Power	16 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Model	Size / key data	Price	Availability	Link
LS-DOM-0108	116 mm dia., White	$439.00	3 in stock	View
LS-DOM-0107	116 mm dia., Red	$439.00 Quote	Ships in 2-3 weeks	View
LS-DOM-0110	175 mm dia., White	$729.00	4 in stock	View
LS-DOM-0111	198 mm dia., White	$859.00	4 in stock	View
LS-DOM-0112	260 mm dia., White	$1,299.00	4 in stock	View
