LS-CXL-0214 is a coaxial light with a 55 x 40 mm emitting area, in the middle of the 5 emitting-area sizes in its series.
Corner coaxial light in which the prism and the light source are combined into one; small and space-saving, with good uniformity and high brightness, plus a specially coated beam splitter that reduces light loss.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CXL-0214-R |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 55 x 40 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, LS-CTL-0141, LS-CTL-0142 |
|---|---|
| Power, green / blue / white (W) | 6 |
| Power, red (W) | 5 |
| Supply voltage | 24 V DC (inferred) |
Mechanical
| Mounting | M3/M4 threads (from the drawing) |
|---|---|
| Shipping weight | 0.35 kg |
Size

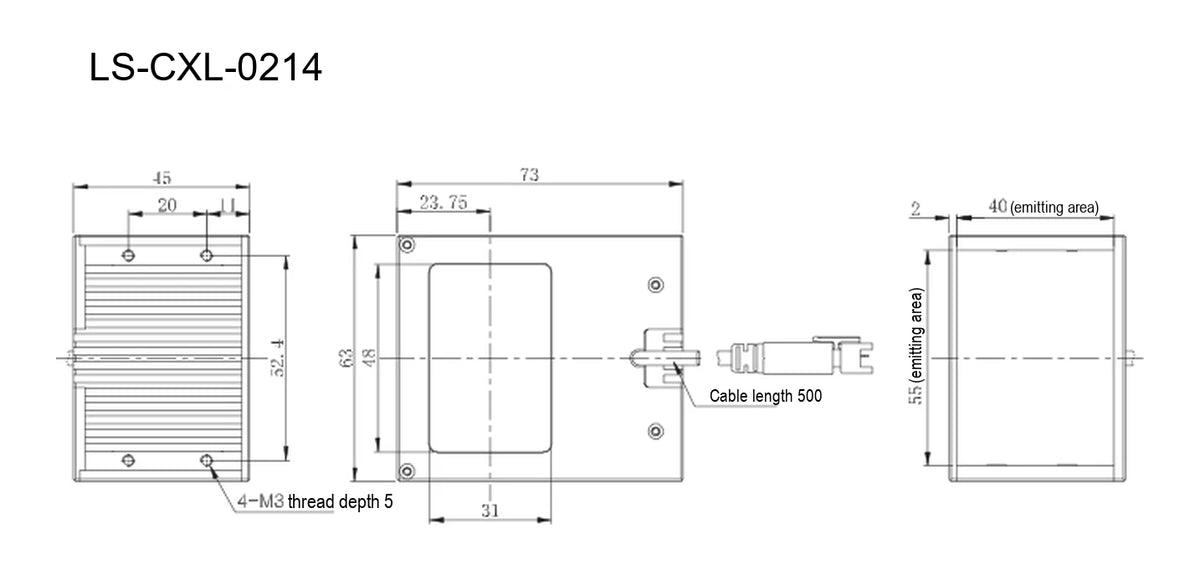

To scale, from the printed dimensionsFeatures of the LS-CXL-0214
- The 67 x 67 mm version is one step up in this series
- Needs a controller channel or supply of 6 W or more
Shared by the whole Corner coaxial light (LS-CXL-S32) series3 points
- On-axis light over a field: flat shiny surfaces look bright, scratches and marks dark
- Small size, saves space
- Light at 90 degrees to the CCD camera; compact structure
Applications
- Flat, shiny parts in a field up to about 55 x 40 mm (its 55 x 40 mm emitting area)
- Steel sheet contour positioning
- 2D code reading
- Metal surface defect inspection
- Camera module appearance inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Build a system with this partConfigure a systemAsk an engineer
Engineering data
Drive and fit the LS-CXL-0214
Current at 24 V250 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 6 W
Emitting area55 × 40 mmKeep the camera's field of view inside it for an even background.
Mounting and installation
| Mounting | See the dimension drawing |
|---|---|
| Cable | 0.5 m |
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part55 x 40 mm Corner coaxial light (LS-CXL-0214)LS-CXL-0214-R · Red
$239.00
-
Controllers for this light
Analog power supply controller, 1 ch, 1 A per channel (LS-CTL-0140)
$139.00
Set total $378.00
Added to your quote list.
Controllers for this light
Recommended
This 6 W light uses 25 % of one channel (about 24 W, from the rated output)
Recommended
Analog power supply controller, 2 ch, 1 A per channel
LS-CTL-0141
- Channels 2
- Output 0-24 V
$169.00
Ships in 2-3 weeks
This 6 W light uses 50 % of one channel (about 12 W, from the rated output)
Recommended
Analog power supply controller, 4 ch, 2 A per channel
LS-CTL-0142
- Channels 4
- Output 0-24 V
$229.00
Ships in 2-3 weeks
This 6 W light uses 40 % of one channel (about 15 W, from the rated output)
6-Channel Digital LED light controller, 16-24V, 2.5 A total output
LS-CTL-0315
- Output 16~24 V
- Input 100-240 V AC 50/60 Hz
$549.00
Ships in 2-3 weeks
This 6 W light uses 60 % of one channel (about 10 W, from the rated output)
This 6 W light uses 60 % of one channel (about 10 W, from the rated output)
Digital power supply controller, 8 ch, 2.7 A total output
LS-CTL-0336
- Channels 8
- Output 16~24 V
$609.00
Ships in 2-3 weeks
This 6 W light uses 74 % of one channel (about 8.1 W, from the rated output)
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0126, the same type of part
Electronics and devices
Watch display module in IR
Use the round outline for position and the flex tail for rotation.Light in sourceLS-CXL-0126 · 940 nmExplore the study
Set up with the LS-CXL-0182, the same type of part
Packaging, labels and print
Colour appearance on a bottle cap
Control the colour recipe before turning a lighter patch into a reject decision.Light in sourceLS-CXL-0182 · whiteExplore the study
Set up with the LS-CXL-0025, the same type of part
Glass, displays and optics
Mobile cover-glass contour under coaxial light
Choose the viewing geometry around a clearly defined edge datum.Proposed light housing (spec)74 × 50 × 50 mmExplore the study
Before you buy
Questions about the LS-CXL-0214
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-CXL-0214?
Fit-tested at its highest rated power, 6 W: LS-CTL-0140 (maker-recommended; about 24 W per channel, about 75 % headroom), LS-CTL-0141 (maker-recommended; about 12 W per channel, about 50 % headroom) and LS-CTL-0142 (maker-recommended; about 15 W per channel, about 60 % headroom).
What supply voltage and power does the LS-CXL-0214 need?
It runs on 24 V DC (inferred) and draws 6 W (green, blue, white), 5 W (red).
What area does the LS-CXL-0214 light?
The emitting area is 55 x 40 mm.
Learn
Guides for this part
Engineering guides picked for the LS-CXL-0214: how to choose it, set it up and get a better image.
Connector pin lighting for bright, recessed contactsConnector pin lighting usually starts with near-axis coaxial illumination when contacts sit deep inside narrow holes.
Which LED colour gives the best contrast in machine visionPick the light colour that makes the feature and its background reflect differently.
White LED color temperature: specify repeatable inspectionWhite LED color temperature describes the apparent warmth of illumination, not its complete spectrum or its effect on a camera.
Other models in the Corner coaxial light (LS-CXL-S32) series
See all 5 models in the seriesHow this model compares
- Emitting area 55 x 40 mm; next smaller area 40 x 40 mm (LS-CXL-0211), larger 67 x 67 mm (LS-CXL-0212); 5 different sizes in the series.
- Up to 6 W over a 55 x 40 mm emitting area works out to about 27 W per 100 cm²: only 2 of the 5 coaxial lights in the series are higher.
- Compared with LS-CXL-0210: emitting area 55 x 40 mm here, 26 x 26 mm there; power (green, blue, white) 6 W here, 3 W there.
Swipe to see all columns
| Model | Emitting area | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0210 | 26 x 26 mm | $139.00 | Ships in 2-3 weeks | View |
| LS-CXL-0211 | 40 x 40 mm | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0214This model | 55 x 40 mm | $239.00 | Ships in 2-3 weeks | |
| LS-CXL-0212 | 67 x 67 mm | $299.00 | Ships in 2-3 weeks | View |
| LS-CXL-0213 | 80 x 80 mm | $369.00 | Ships in 2-3 weeks | View |
