APC analog power supply controller, 2 ch (LS-CTL-0141)

Model LS-CTL-0141

Channels2
Output0-24 V
InputAC100-240V 50/60Hz
Total output1A
ControlStepless knob

$169.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-CTL-S25 series analog controllers provide brightness-control power for 24 V LED lights. Brightness is set precisely with stepless knobs on the front panel; the units have four light outputs, can stay lit for long periods and have a built-in external trigger for easy on/off switching.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0141
Control	Stepless knob

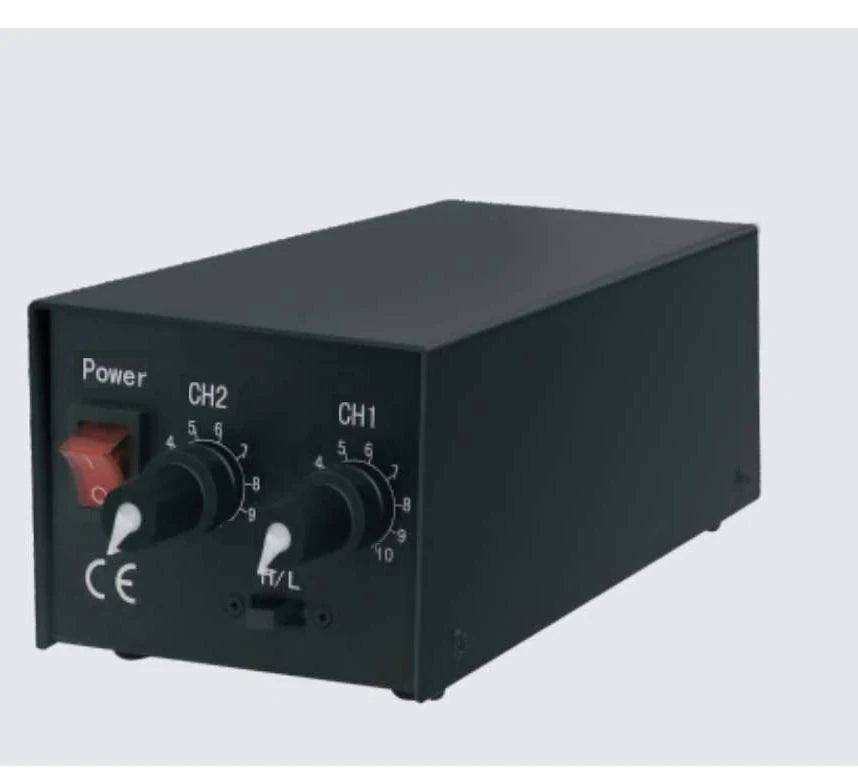

Front panel	Power switch, brightness knob(s), constant-on / constant-off switch
Rear panel	External trigger port, AC socket, FG terminal, light output ports
Panel note	Front panels for different channel counts differ only in the output channels and trigger port; outer dimensions are identical. One channel drives one light output.
Control (perform)	Knob

Electrical

Input voltage	AC100-240V 50/60Hz
Output voltage	0-24 V
Channel / output	C2 O2 (2 channels, 2 outputs)
Single channel current	1A
Total output current	1A
Trigger input	Yes
Channels	2

Mechanical

Shipping weight	0.50 kg

Other models in the APC analog power supply controller (LS-CTL-S25) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0140	1 ch	$139.00	Ships in 2-3 weeks	View
LS-CTL-0142	4 ch	$229.00	Ships in 2-3 weeks	View
LS-CTL-0143	4 ch	$229.00	Ships in 2-3 weeks	View
