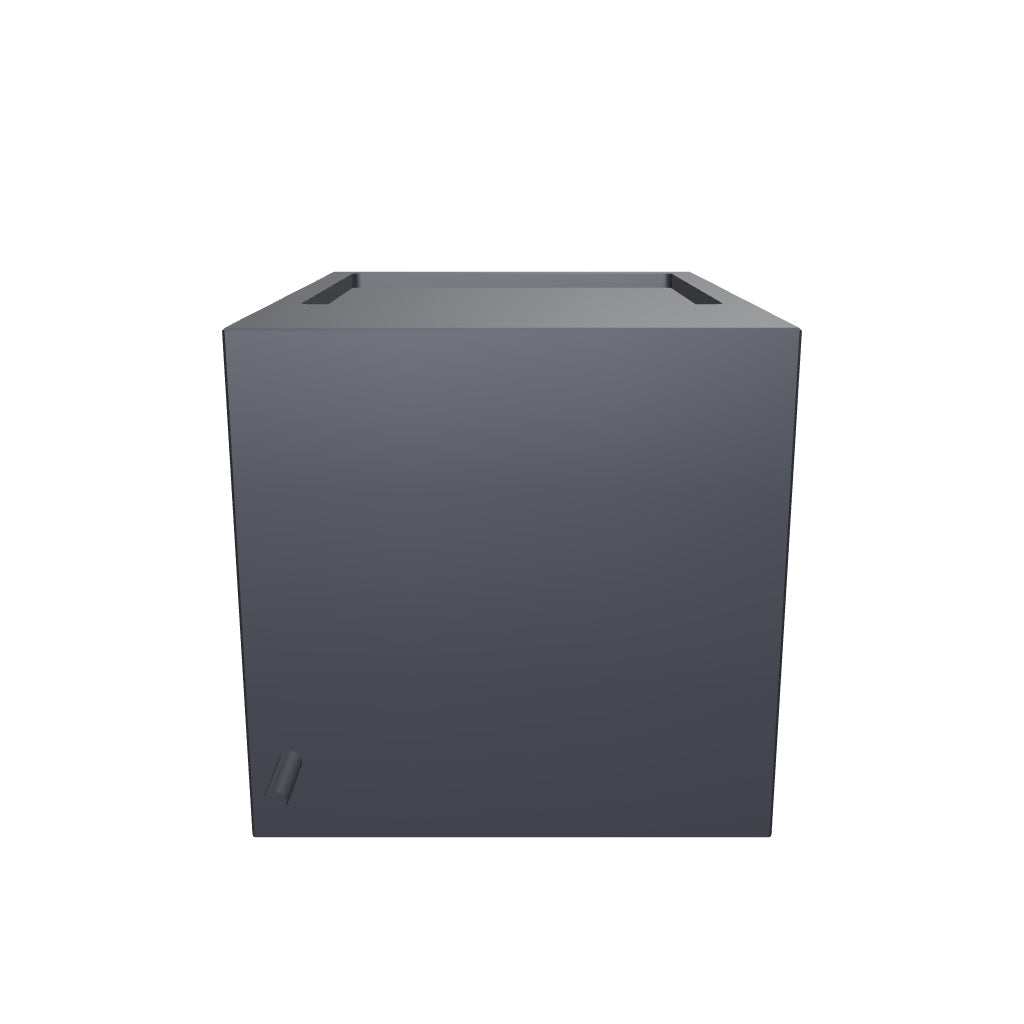

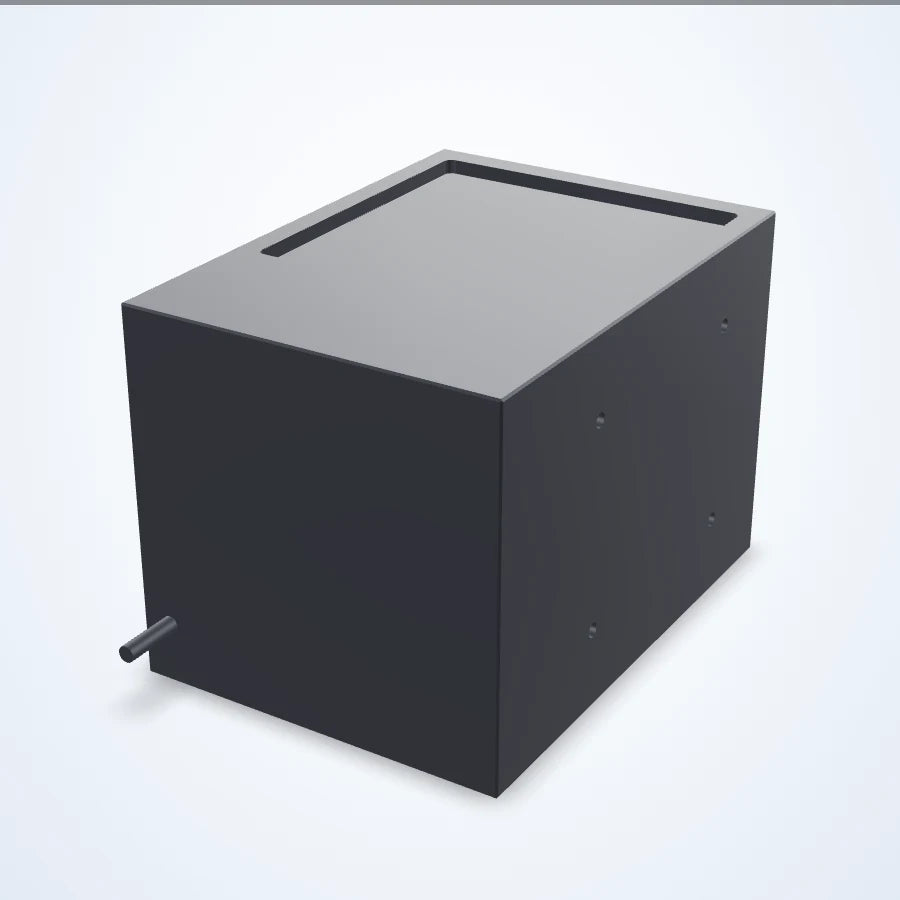

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Coaxial lights

80 x 80 mm Coaxial Light (LS-CXL-0084)

Model LS-CXL-0084-R

ColourRed, Green, Blue, White
Emitting area80x80 mm
Size126x92x90 mm
Voltage24 V
Power17.3 W

$369.00

Ships in 2-3 weeks

0.8 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

80 x 80 mm Coaxial Light. Coaxial light with a special optical beam splitter that gives shadow-free illumination along the camera axis. Higher-brightness versions are available for the same size, with high uniformity and a compact design for flexible installation.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CXL-0084

Light

Emitting area (mm)	80x80
Colours	Red, Green, Blue, White
Illuminance (LS-CXL-0090, read from curve)	approx. 60,000 lx at 5 mm falling to approx. 20,000 lx at 20 mm working distance

Electrical

Voltage (V)	24
Power R (W)	13
Power W/B/G (W)	17.3

Mechanical

Outer size L x W x H (mm)	126x92x90
Shipping weight (estimated)	0.80 kg

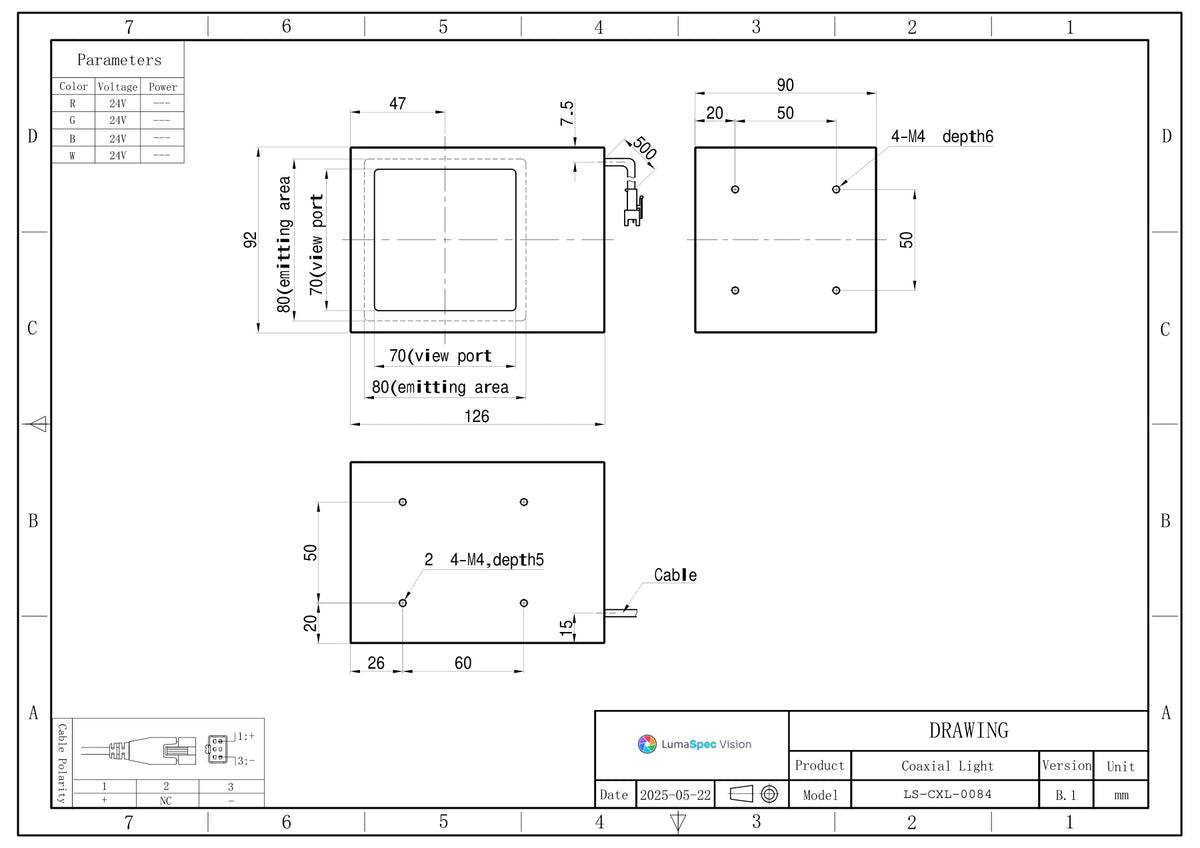

Mounting and drawing data

Listed in the LS-CXL-S13 series table under its own 2CON prefix; the does not explain how 2CON differs from CON. Dimension drawing on page 4.

Downloads

Features

Special optical beam splitter without shadow
Higher brightness solutions available for the same size
High uniformity
Compact design with flexible installation

Applications

Scratch detection on metal/glass
QR code inspection
Silkscreen alignment
MARK location
Chip damage
Bearing/bottle engraving check
Circuit board chip inspection
Surface defect detection of phone camera lenses
Dirt and character inspection of metal
Characters inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

LS-CXL-0084

See this component from every angle.

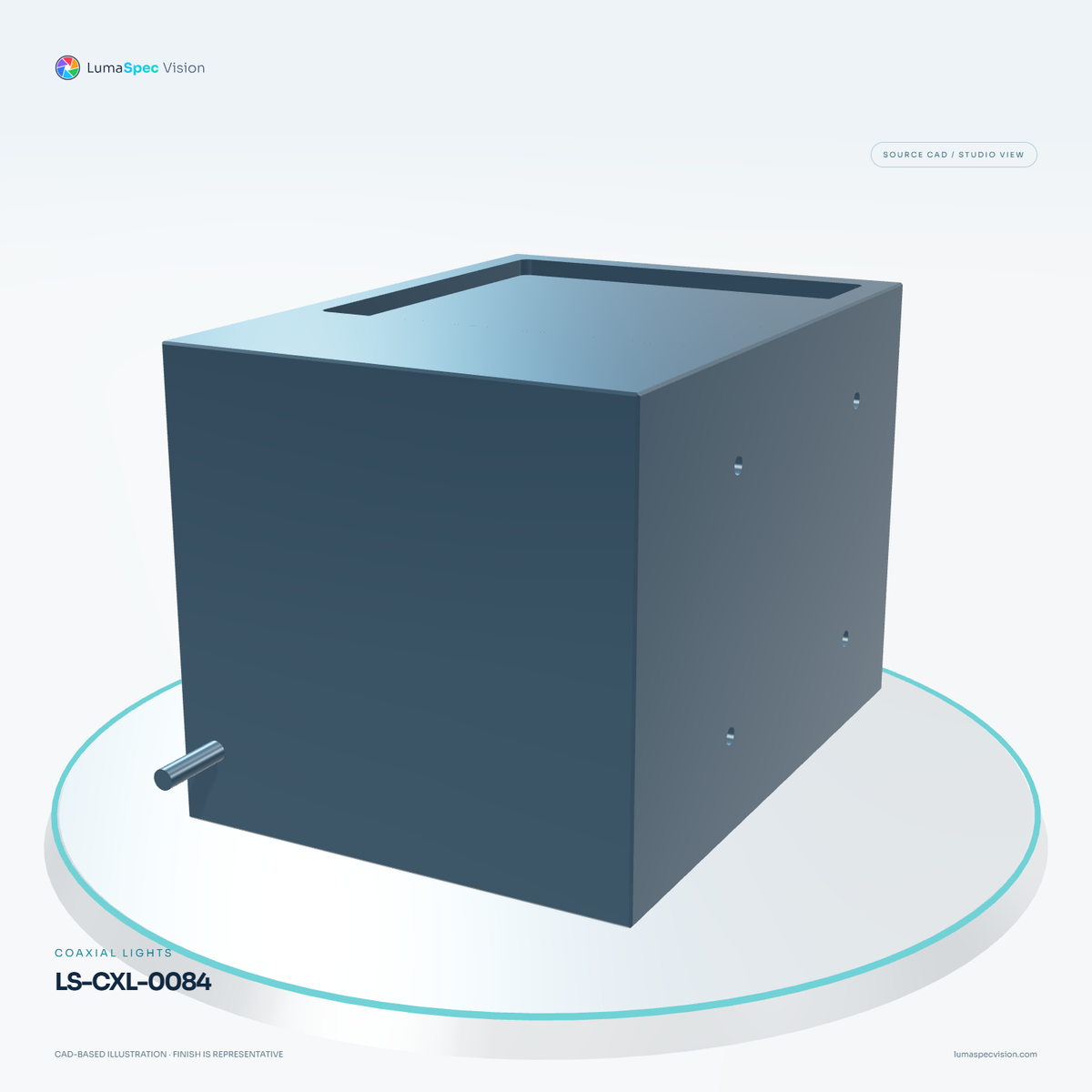

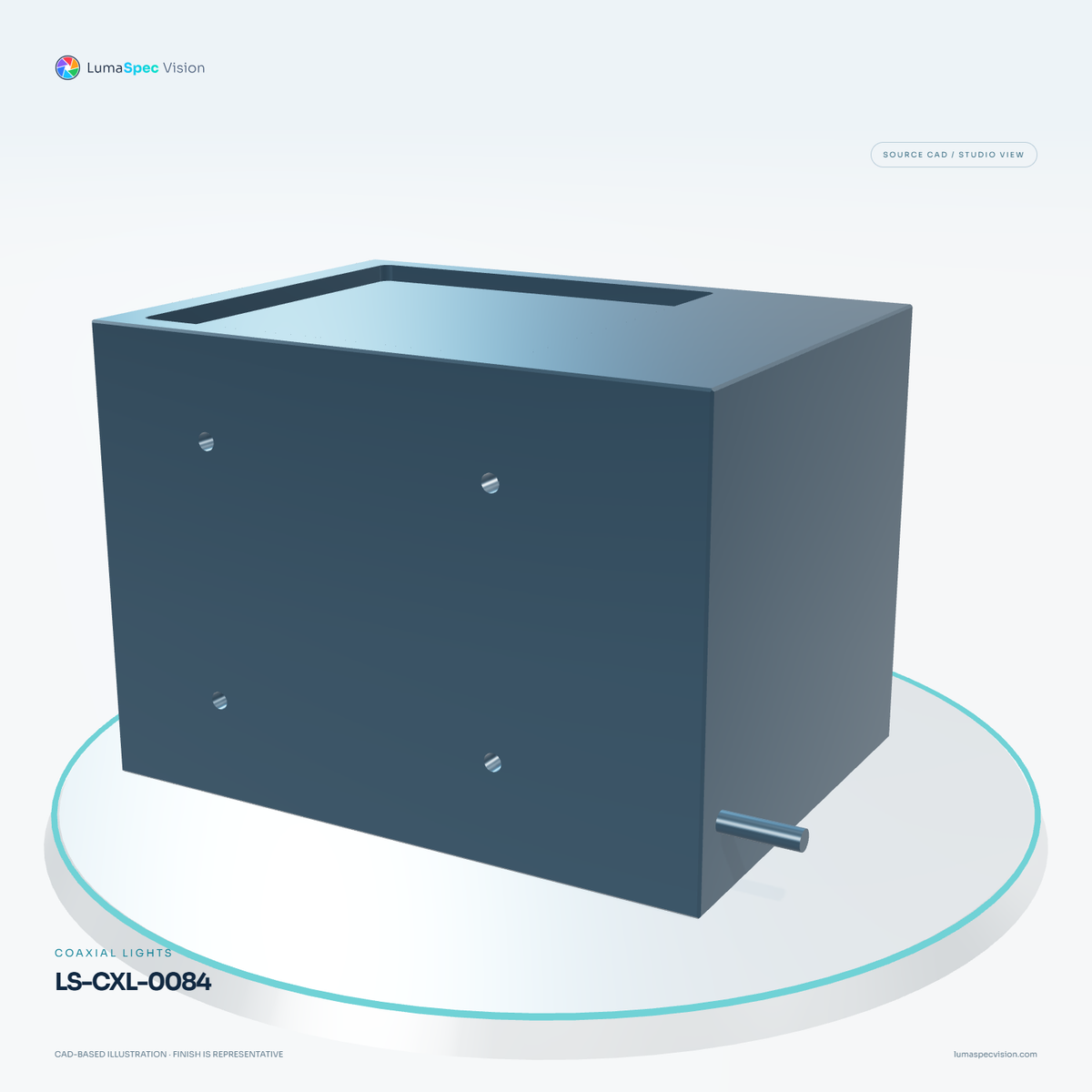

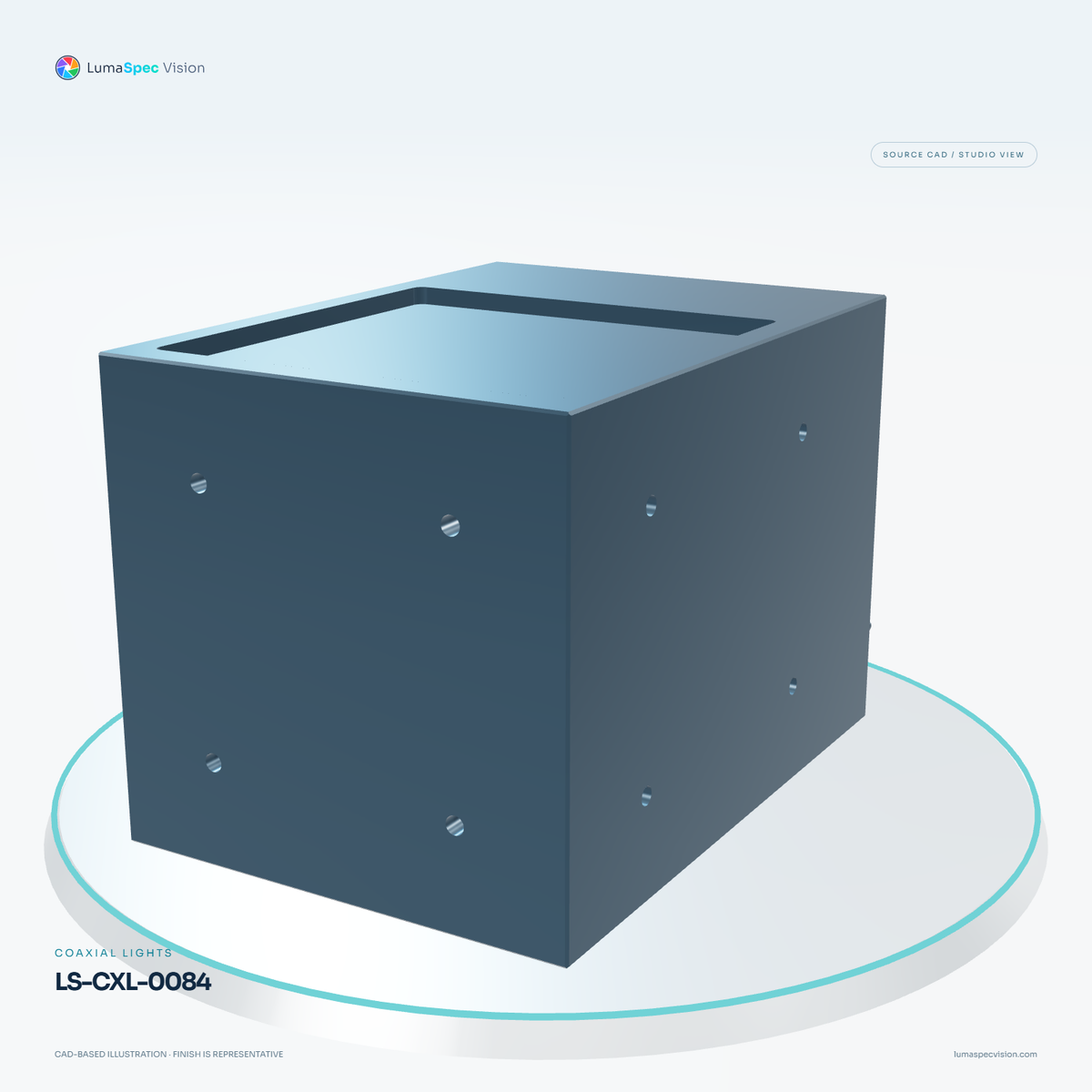

CAD-based illustration; finish is representative.

Explore the visual library

Source CAD

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm): 80x80
Voltage (V): 24
Outer size L x W x H (mm): 126x92x90

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Coaxial light (LS-CXL-S13) series

See all 17 models

Model	Size / key data	Price	Availability	Link
LS-CXL-0086	20 x 20 mm	$119.00	Ships in 2-3 weeks	View
LS-CXL-0087	30 x 30 mm	$149.00	Ships in 2-3 weeks	View
LS-CXL-0088	35 x 35 mm	$159.00	Ships in 2-3 weeks	View
LS-CXL-0089	40 x 40 mm	$179.00	Ships in 2-3 weeks	View
LS-CXL-0090	50 x 50 mm	$219.00	Ships in 2-3 weeks	View
LS-CXL-0082	50 x 50 mm	$219.00	Ships in 2-3 weeks	View
LS-CXL-0091	60 x 60 mm	$269.00	Ships in 2-3 weeks	View
LS-CXL-0083	60 x 60 mm	$269.00	Ships in 2-3 weeks	View
LS-CXL-0092	70 x 70 mm	$309.00	Ships in 2-3 weeks	View
LS-CXL-0093	80 x 80 mm	$369.00	Ships in 2-3 weeks	View
LS-CXL-0094	100 x 100 mm	$479.00	Ships in 2-3 weeks	View
LS-CXL-0085	100 x 100 mm	$489.00	Ships in 2-3 weeks	View
LS-CXL-0095	126 x 126 mm	$639.00	Ships in 2-3 weeks	View
LS-CXL-0096	150 x 120 mm	$809.00	Ships in 2-3 weeks	View
LS-CXL-0097	200 x 180 mm	$1,239.00	Ships in 2-3 weeks	View
LS-CXL-0098	240 x 180 mm	$1,639.00	Ships in 2-3 weeks	View
