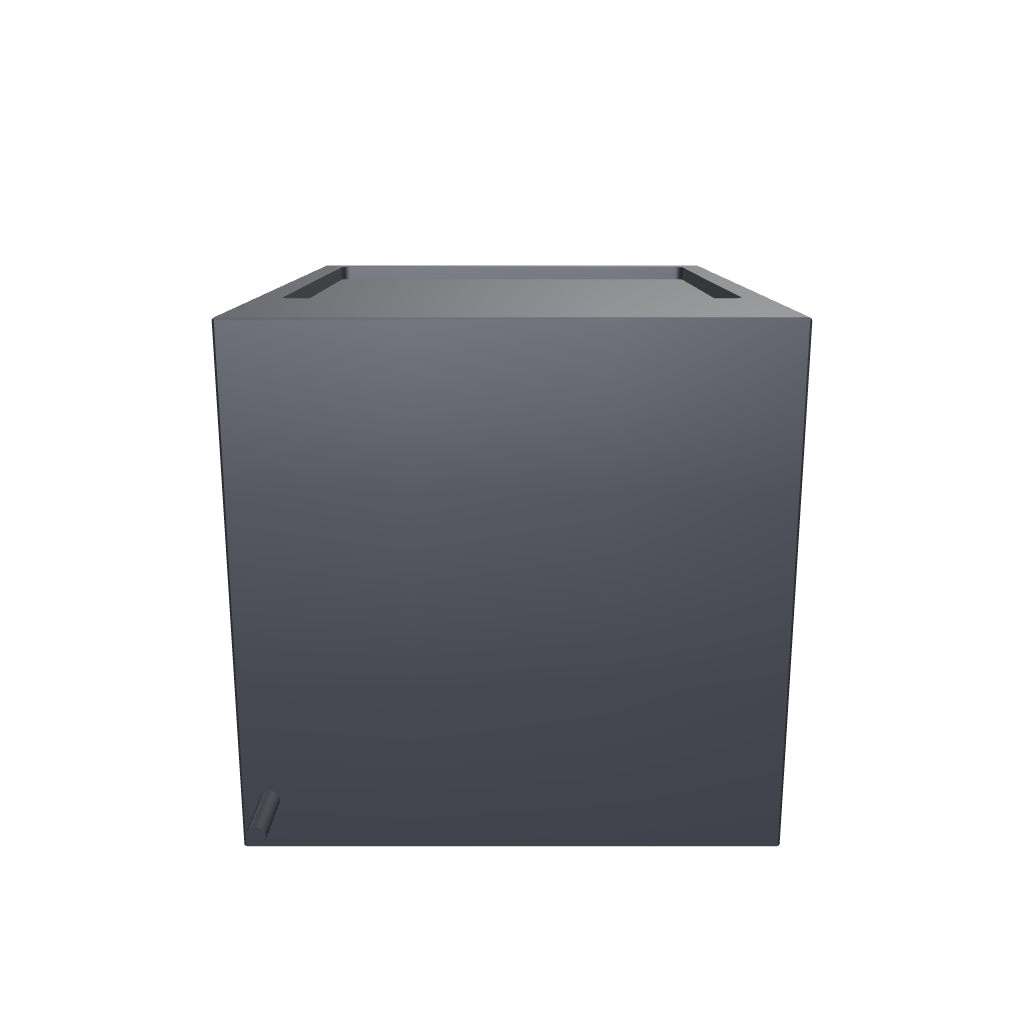

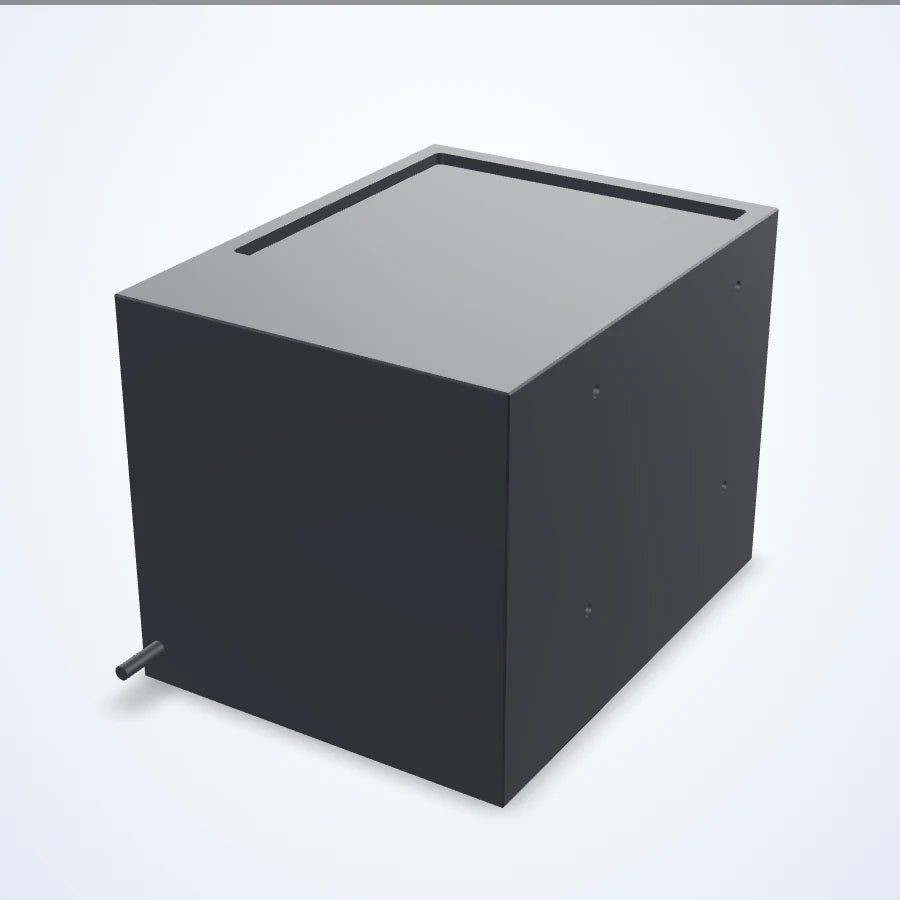

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Coaxial lights

100 x 100 mm Coaxial Light (LS-CXL-0085)

Model LS-CXL-0085

ColourRed, Green, Blue, White
Emitting area100x100 mm
Size146x112x110 mm
Voltage24 V
Power21.6 W

$489.00

Ships in 2-3 weeks

1.1 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

100 x 100 mm Coaxial Light. Coaxial light with a special optical beam splitter that gives shadow-free illumination along the camera axis. Higher-brightness versions are available for the same size, with high uniformity and a compact design for flexible installation.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CXL-0085

Light

Emitting area (mm)	100x100
Colours	Red, Green, Blue, White
Illuminance (LS-CXL-0090, read from curve)	approx. 60,000 lx at 5 mm falling to approx. 20,000 lx at 20 mm working distance

Electrical

Voltage (V)	24
Power R (W)	15.1
Power W/B/G (W)	21.6

Mechanical

Outer size L x W x H (mm)	146x112x110
Shipping weight (estimated)	1.10 kg

Mounting and drawing data

Listed in the LS-CXL-S13 series table under its own 2CON prefix; the does not explain how 2CON differs from CON. Dimension drawing on page 4.

Downloads

Features

Special optical beam splitter without shadow
Higher brightness solutions available for the same size
High uniformity
Compact design with flexible installation

Applications

Scratch detection on metal/glass
QR code inspection
Silkscreen alignment
MARK location
Chip damage
Bearing/bottle engraving check
Circuit board chip inspection
Surface defect detection of phone camera lenses
Dirt and character inspection of metal
Characters inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

LS-CXL-0085

See this component from every angle.

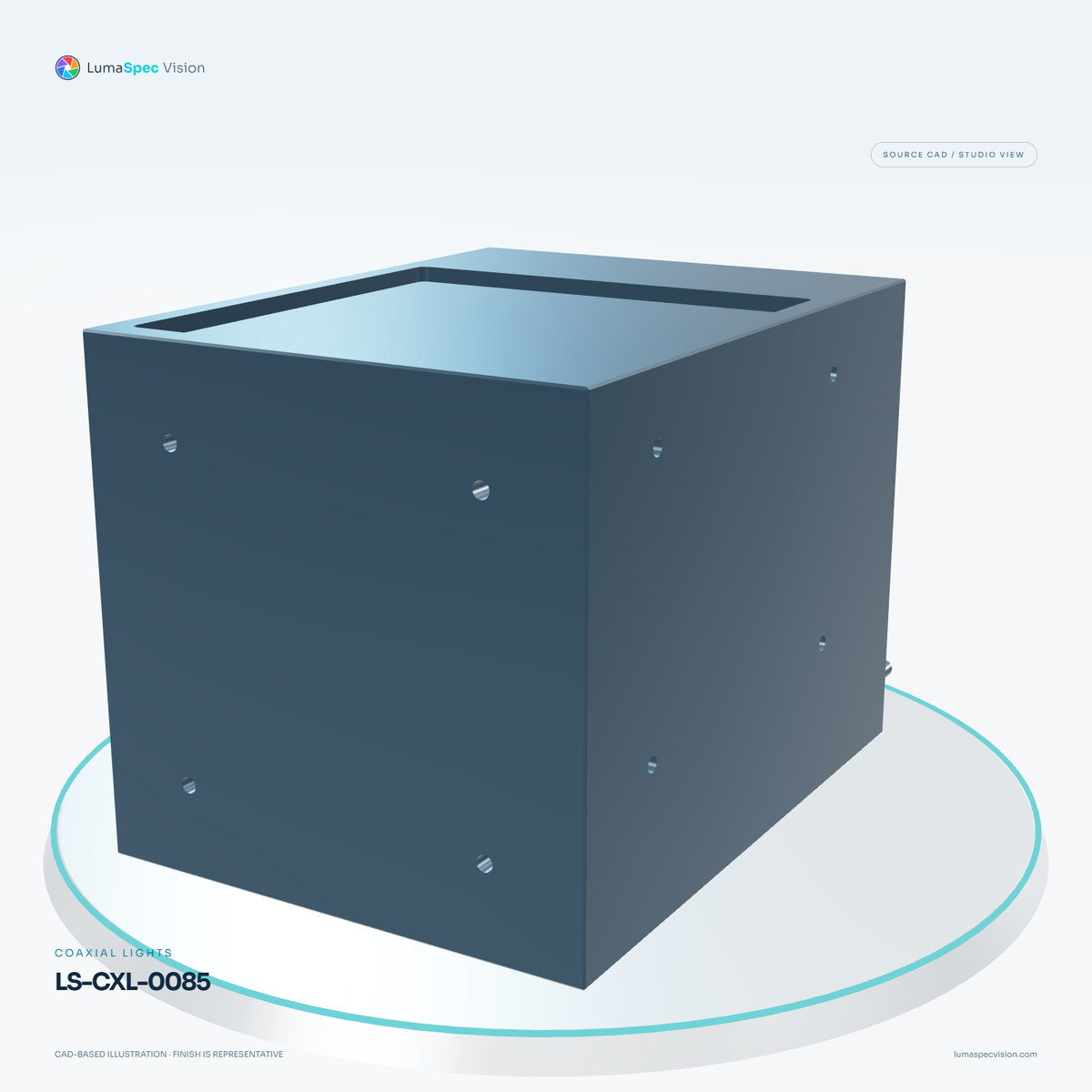

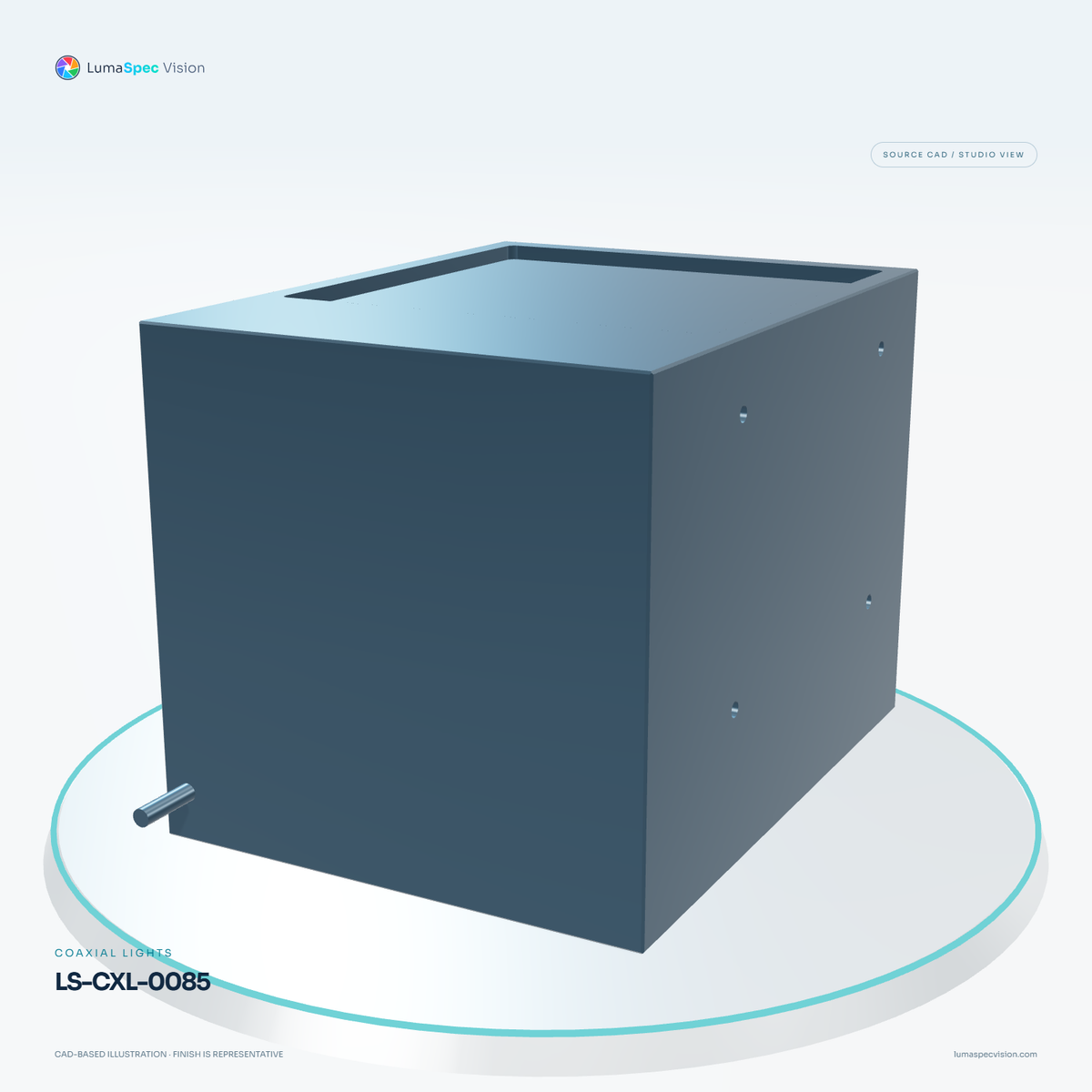

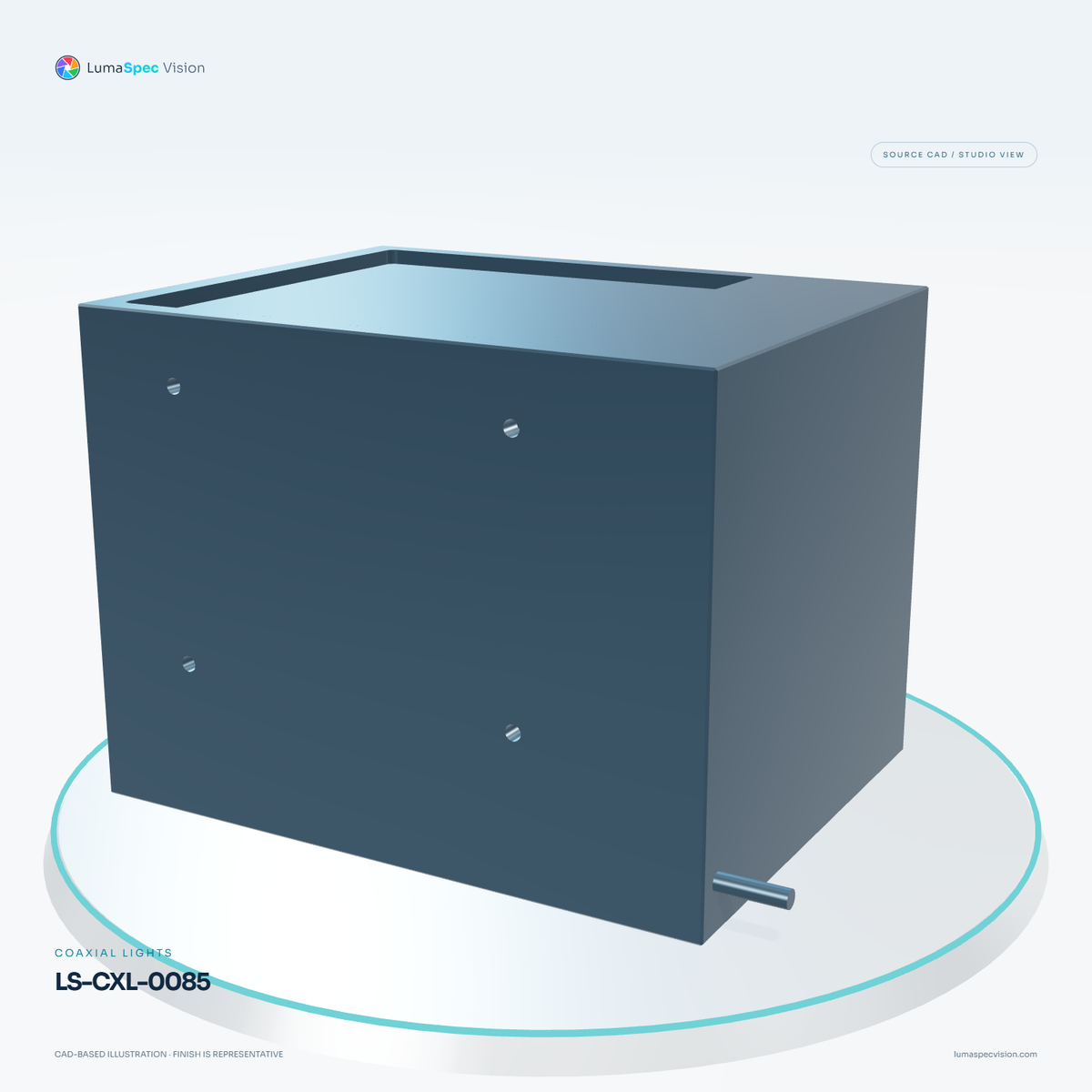

CAD-based illustration; finish is representative.
