CCTV lenses
25 mm, 1.1", 12 MP, C-mount ITS Traffic Lens (LS-CTV-0053)
Model LS-CTV-0053
- Focal length25 mm
- MountC-mount
- Sensor1.1"
- ApertureF1.0 Manual iris (P- iris optional)
- Resolution12 Megapixel
$169.00
Ships in 2-3 weeks
0.46 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, 1.1", 12 MP, C-mount ITS Traffic Lens. High resolution: 12-16 megapixel cover all 4K & 1080P. Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Big aperture: F1.0 super big aperture for night. At a glance: focal length 25 mm; format 1.1"; resolution 12 Megapixel; aperture F1.0 Manual iris (P- iris optional); mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0053 |
|---|---|
| Format | 1.1" |
| IR correction | IR |
| Angle of view (1.1", DxHxV) | 42 x 33 x 24 deg |
| Angle of view (1/2.5", DxHxV) | 112 x 100 x 80 deg |
| Notes | Can be used for 16MP camera; Element 13G |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1.0 Manual iris (P- iris optional) |
| M.O.D. | 0.5 m |
| Distortion | -7.3% |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

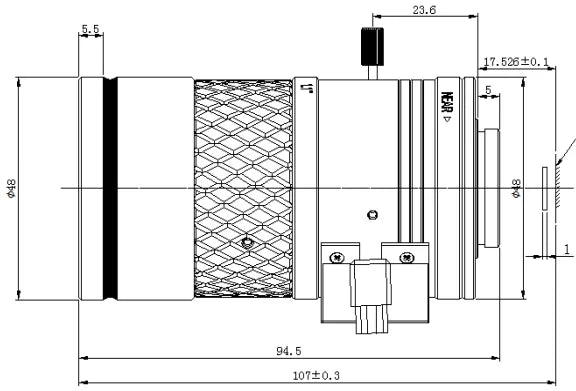

Mechanical
| Size | dia. 48 x 89.5 |
|---|---|
| Optical total length | 107 mm |
| Mount | C |
| Weight | 260 g |
| Shipping weight (estimated) | 0.46 kg |
Photo shows a representative model of this series; see the specifications for this model.
Other models in the ITS Traffic lenses (LS-CTV-S03) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTV-0050 | 25 mm, 1", 8 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-CTV-0051 | 20 mm, 1", 8 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-CTV-0052 | 12 mm, 1", 12 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-CTV-0055 | 12 mm, 2/3", 8 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-CTV-0054 | 85 mm, 4/3", 10 MP, C-mount | $179.00 | Ships in 2-3 weeks | View |
