12 mm, 1", 12 MP, C-mount ITS Traffic Lens (LS-CTV-0052)
Model LS-CTV-0052
- Focal length12mm
- MountC-mount
- Sensor1"
- ApertureF1.4 Manual Iris
- Resolution12 Megapixel
$169.00
Ships in 2-3 weeks
0.39 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm, 1", 12 MP, C-mount ITS Traffic Lens. A 12 mm F1.4 manual-iris C-mount ITS lens for 1" 12-megapixel cameras with motorized focus for remote focus adjustment, for traffic and vibration-prone sites. At a glance: focal length 12mm; format 1"; resolution 12 Megapixel; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0052 |
|---|---|
| IR corrected | IR |
| Format | 1" |
| Angle of view (1", DxHxV) | 68.2 x 61.7 x 34.4 deg |
| CRA | <16° |
| Notes | Motorized focus / -30°~+70° |
| IR correction | IR |
Optics
| Focal length | 12mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.5m |
| Back focal length | 14.9mm |
| Distortion | Max -3.65% |
| Back focal length (optical) | 14.9mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

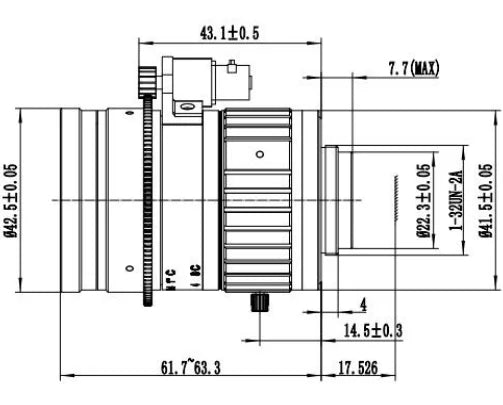

Mechanical
| Size | dia. 42.5 x 61.7 |
|---|---|
| Mount | C |
| Weight | 205g |
| Shipping weight (estimated) | 0.39 kg |
