CCTV lenses
20 mm, 1", 8 MP, C-mount ITS Traffic Lens (LS-CTV-0051)
Model LS-CTV-0051
- Focal length20mm
- MountC-mount
- Sensor1"
- ApertureF1.4 Auto Iris
- Resolution8 Megapixel
$169.00
Ships in 2-3 weeks
0.42 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
20 mm, 1", 8 MP, C-mount ITS Traffic Lens. 20 mm 1" 8.0 megapixel DC-iris low-distortion ITS lens for intelligent transportation, toll gates and entrances, also for machine vision. At a glance: focal length 20mm; format 1"; resolution 8 Megapixel; aperture F1.4 Auto Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0051 |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 44.3 x 35.3 x 22.8 deg |
| Angle of view (2/3", DxHxV) | 30.4 x 24.8 x 18.7 deg |
| Angle of view (1/2", DxHxV) | 22.6 x 18.2 x 13.7 deg |
| CRA | <19.36° |
Optics
| Focal length | 20mm |
|---|---|
| Aperture | F1.4 Auto Iris |
| M.O.D. | 0.5m |
| Distortion | -2.4% |
| Back focal length (optical) | 12.34mm |
| Mechanical back focal length | 11.7~13.5mm |
| Filter thread (from drawing) | M39 x 0.5 |
| Total track length (TTL) | 75.5mm |
Sensor and imaging
| Resolution | 8 Megapixel |
|---|

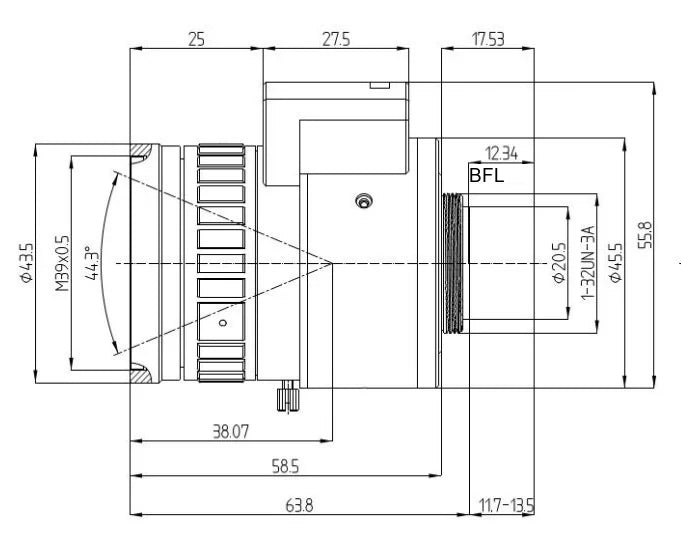

Mechanical
| Optical total length | 75.5mm |
|---|---|
| Size | dia. 43.5 x 63.8 |
| Mount | C |
| Weight | 230g |
| Shipping weight (estimated) | 0.42 kg |
