20 x 20 mm Coaxial Light (LS-CON-20)
  • 20 x 20 mm Coaxial Light (LS-CON-20)

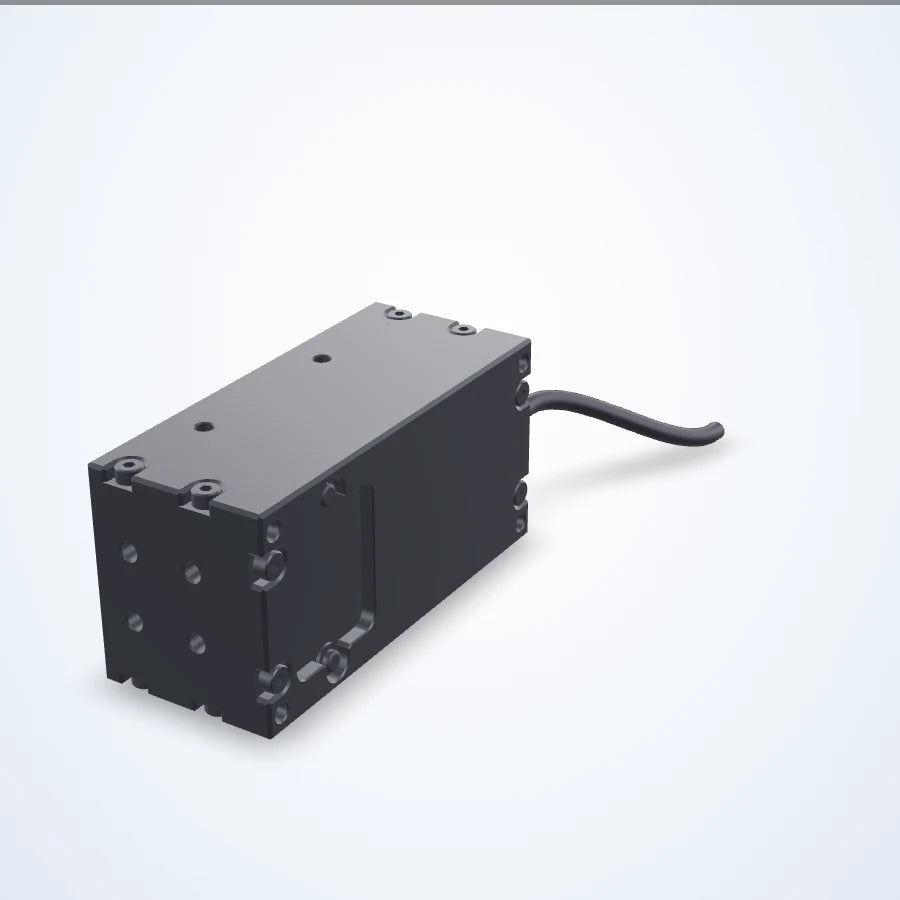

  • LS-CON-20 3D render
  • LS-CON-20 dimensions (mm)
  • LS-CON-20 3D model

Coaxial lights

20 x 20 mm Coaxial Light (LS-CON-20)

Model LS-CON-20

  • ColourRed, Green, Blue, White
  • Emitting area20x20 mm
  • Size64x31x27 mm
  • Voltage24 V
  • Power3 W
$69.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.2 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

20 x 20 mm Coaxial Light. Coaxial light with a special optical beam splitter that gives shadow-free illumination along the camera axis. Higher-brightness versions are available for the same size, with high uniformity and a compact design for flexible installation. Coding: LS-CON-<emitting area>-<colour>, e.g. LS-CON-50-R.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CON-20

Light

Emitting area (mm)20x20
ColoursRed, Green, Blue, White
Illuminance (LS-CON-50, read from curve)approx. 60,000 lx at 5 mm falling to approx. 20,000 lx at 20 mm working distance

Electrical

Voltage (V)24
Power R (W)2
Power W/B/G (W)3

Mechanical

Outer size L x W x H (mm)64x31x27
Shipping weight (estimated)0.20 kg

Photo shows a representative model of this series; see the specifications for this model.
