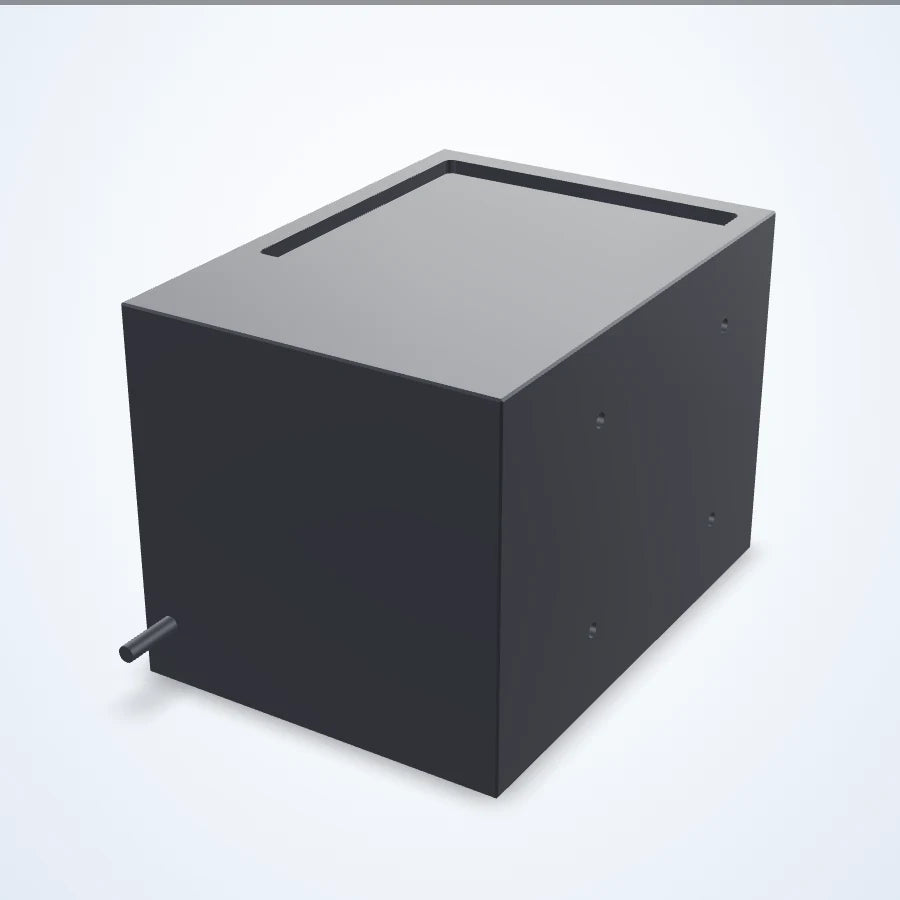

  • LS-2CON-80 3D render
  • LS-2CON-80 dimensions (mm)
  • LS-2CON-80 3D model

Coaxial lights

80 x 80 mm Coaxial Light (LS-2CON-80)

Model LS-2CON-80

  • ColourRed, Green, Blue, White
  • Emitting area80x80 mm
  • Size126x92x90 mm
  • Voltage24 V
  • Power17.3 W
$219.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.8 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

80 x 80 mm Coaxial Light. Coaxial light with a special optical beam splitter that gives shadow-free illumination along the camera axis. Higher-brightness versions are available for the same size, with high uniformity and a compact design for flexible installation. Coding: LS-CON-<emitting area>-<colour>, e.g. LS-CON-50-R.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-2CON-80

Light

Emitting area (mm)80x80
ColoursRed, Green, Blue, White
Illuminance (LS-CON-50, read from curve)approx. 60,000 lx at 5 mm falling to approx. 20,000 lx at 20 mm working distance

Electrical

Voltage (V)24
Power R (W)13
Power W/B/G (W)17.3

Mechanical

Outer size L x W x H (mm)126x92x90
Shipping weight (estimated)0.80 kg

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

Listed in the CON series table under its own 2CON prefix; the does not explain how 2CON differs from CON. Dimension drawing on page 4.

Other models in the Coaxial light (CON series) series

See all 17 models
ModelSize / key dataPriceAvailabilityLink
LS-CON-20 20 x 20 mm $69.00 12 in stock View
LS-CON-30 30 x 30 mm $89.00 14 in stock View
LS-CON-35 35 x 35 mm $99.00 17 in stock View
LS-CON-40 40 x 40 mm $109.00 15 in stock View
LS-CON-50 50 x 50 mm $129.00 15 in stock View
LS-2CON-50 50 x 50 mm $129.00 11 in stock View
LS-CON-60 60 x 60 mm $159.00 11 in stock View
LS-2CON-60 60 x 60 mm $159.00 11 in stock View
LS-CON-70 70 x 70 mm $189.00 15 in stock View
LS-CON-80 80 x 80 mm $219.00 13 in stock View
LS-CON-100 100 x 100 mm $289.00 15 in stock View
LS-2CON-100 100 x 100 mm $289.00 14 in stock View
LS-CON-120 126 x 126 mm $399.00 15 in stock View
LS-CON-150X120 150 x 120 mm $509.00 13 in stock View
LS-CON-200X180 200 x 180 mm $789.00 14 in stock View
LS-CON-240X180 240 x 180 mm $1,059.00 19 in stock View
