375 x 40 mm Waterproof bar light (LS-BR37540)

Representative photo of this series

Bar lights

375 x 40 mm Waterproof bar light (LS-BR37540)

Model LS-BR37540

ColourRed, Green, Blue, White
Emitting area375 x 40 mm
SizeL385.5xW50.5xH28(mm)
Voltage24 V
Power7.4W/11.8W

$229.00

In stock - ships the same business day (2 available, order by 2 PM ET)

1.3 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

Light for humid, dusty or harsh environments with a special leakproof structure and heat-dissipating material; passed 12 h dust-box and 12 h sprinkler tests and holds IP54 certification from SGS.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BR37540
Dustproof test	12 h in a professional dust box with continuous dust drift
Waterproof test	12 h spray by professional sprinkler at 800 mm
Customizable	shape, colour and colour temperature, cable length, installation method, multi-area control
Note	UV & IR light can be customized as required.

Interfaces and I/O

Extension cable options	PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)
Cable polarity	1: +, 2: NC, 3: -

Light

Custom wavelengths	UV & IR light can be customized as required
Emitting surface (mm)	375 x 40
LED colour	R(red)/W(white)

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory-default luminance)

Electrical

Voltage	24 V
Adapted controller	Analog controller, digital controller
Protection	IP54 (SGS certified) / IP67 level
Power, R (W)	7.4
Power, G/B/W (W)	11.8
Power	7.4W/11.8W
Input voltage	DC 24V (max)

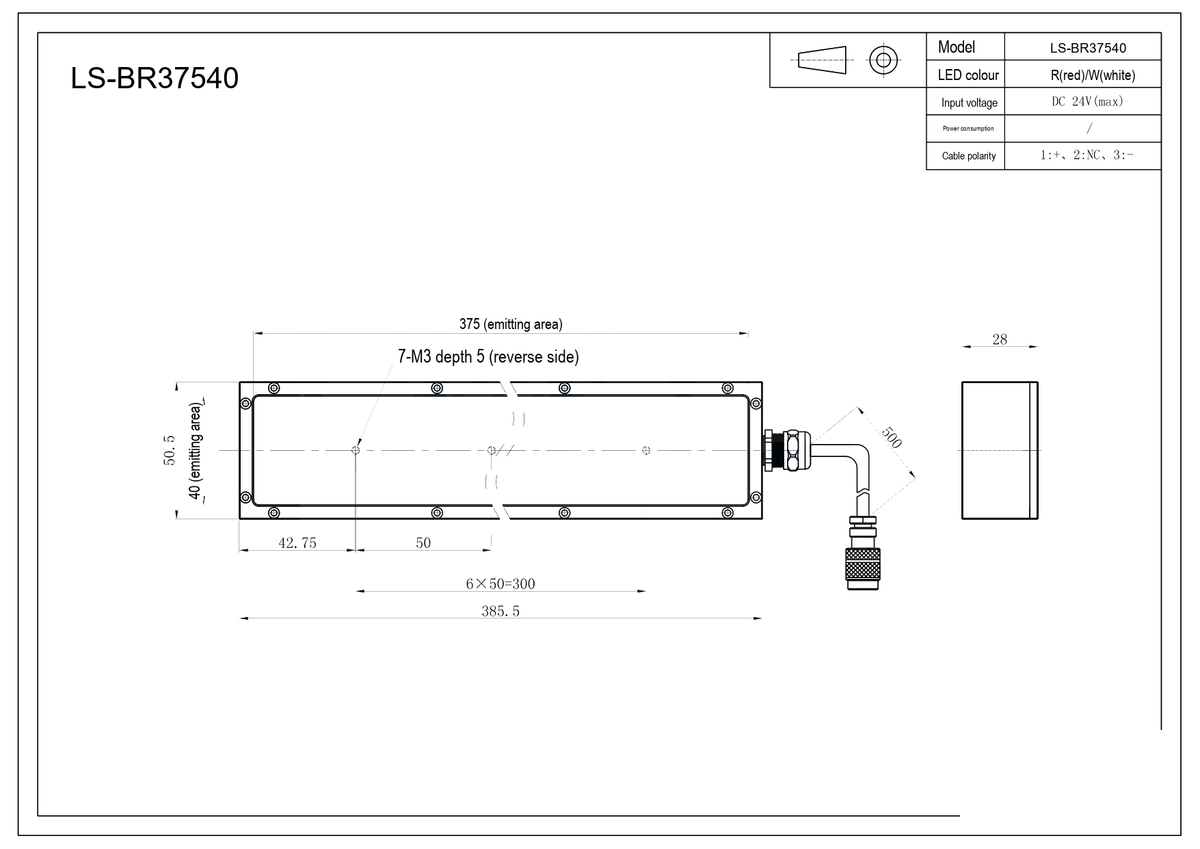

Mechanical

Weight (g)	960
Mounting	7-M3 depth 5 (reverse)
Dimension	L385.5xW50.5xH28(mm)
Mounting holes	7-M3 depth 5 (reverse side)

Downloads

Datasheet (PDF)LS-BR37540 · 1.7 MB

Features

For humid, dusty or relatively harsh environments
Special structure design with high leakproofness
Special heat dissipating material
Variety of outlines, can be customized
IP54 waterproof certification from SGS
Used at humid, dusty or some relatively harsh environment
Adopted special structure design with high leakproofness
Adopted special heat dissipating material with good heat dissipating
Variety outline, can be customized

Applications

Humid, dusty or relatively harsh environments
