Representative photo of this series
Bar lights
254 x 25 mm Waterproof bar light (LS-BR25425)
Model LS-BR25425
- ColourRed, Green, Blue, White
- Emitting area254 x 25 mm
- SizeL264.5xW35.5xH28(mm)
- Voltage24 V
- Power5.3W/9.6W
$169.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Light for humid, dusty or harsh environments with a special leakproof structure and heat-dissipating material; passed 12 h dust-box and 12 h sprinkler tests and holds IP54 certification from SGS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BR25425 |
|---|---|
| Dustproof test | 12 h in a professional dust box with continuous dust drift |
| Waterproof test | 12 h spray by professional sprinkler at 800 mm |
| Customizable | shape, colour and colour temperature, cable length, installation method, multi-area control |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
|---|---|
| Cable polarity | 1: +, 2: - |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting surface (mm) | 254 x 25 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Analog controller, digital controller |
| Protection | IP54 (SGS certified) / IP67 level |
| Power, R (W) | 5.3 |
| Power, G/B/W (W) | 9.6 |
| Power | 5.3W/9.6W |
| Input voltage | DC 24V (max) |

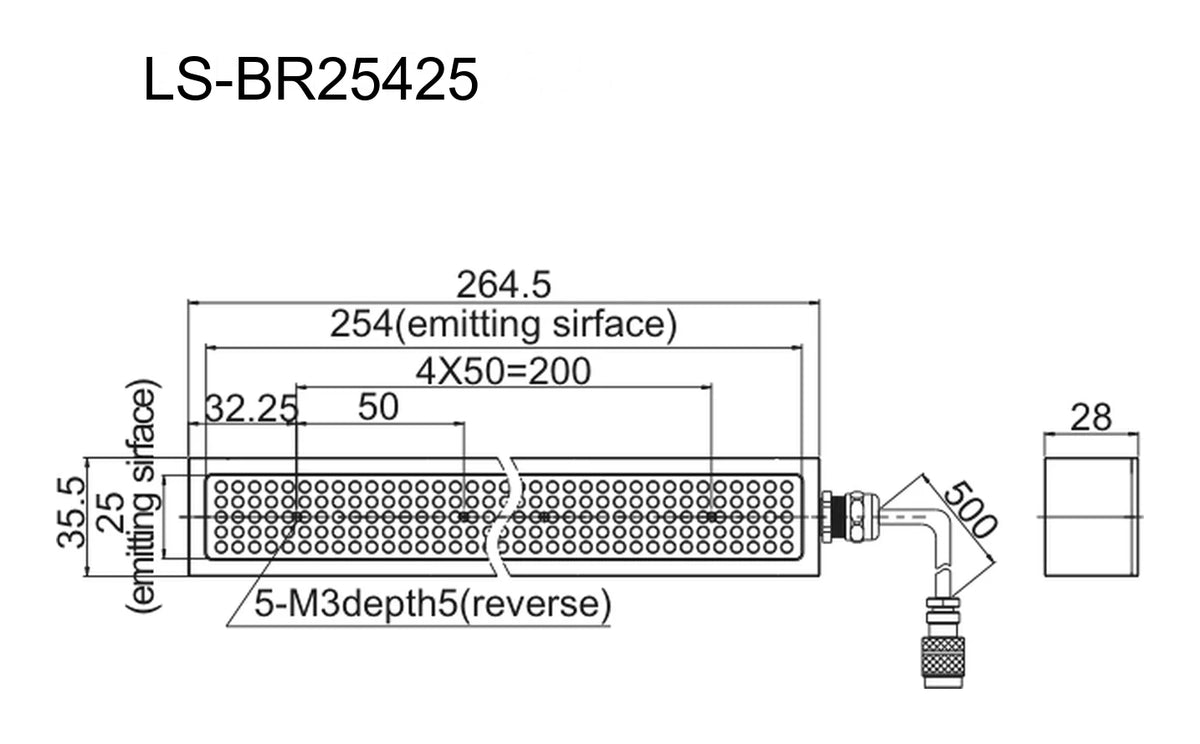

Mechanical
| Weight (g) | 445 |
|---|---|
| Mounting | 5-M3 depth 5 (reverse) |
| Dimension | L264.5xW35.5xH28(mm) |
| Mounting holes | 5-M3 depth 5 (reverse side) |
