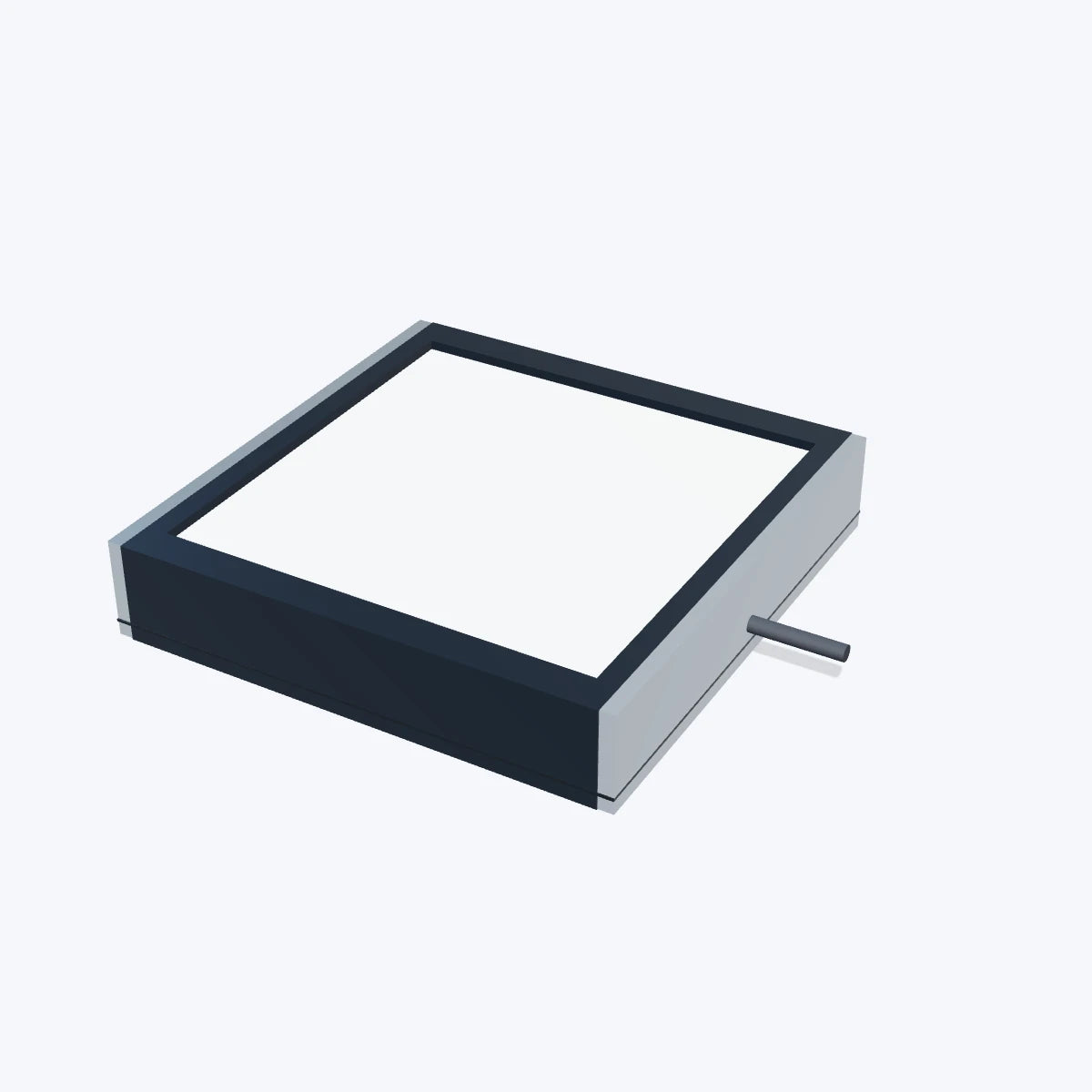

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.
Backlights
Short wavelength infrared light, 117 x 117 x 23 mm (LS-BKL-1563)
Model LS-BKL-1563
- Emitting area100 x 100 mm
- SizeL117xW117xH23(mm)
- Voltage24V
- Power6.5W
$199.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Shortwave infrared, which is more penetrating, seven wavelengths available. 1050nm/ 1200nm/1300nm/1450nm/1550nm/1600nm/1650nm. Matched with SWIR camera.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1563 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Light
| Color | SWIR |
|---|---|
| LED colour | SWIR |
| Emitting surface (mm) | 100 x 100 |
Electrical
| Voltage/current | 24V |
|---|---|
| Power | 6.5W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L117xW117xH23(mm) |
|---|---|
| Mounting holes | 4-M3 depth 4 (reverse side) |
| Shipping weight | 0.50 kg |
