Backlights

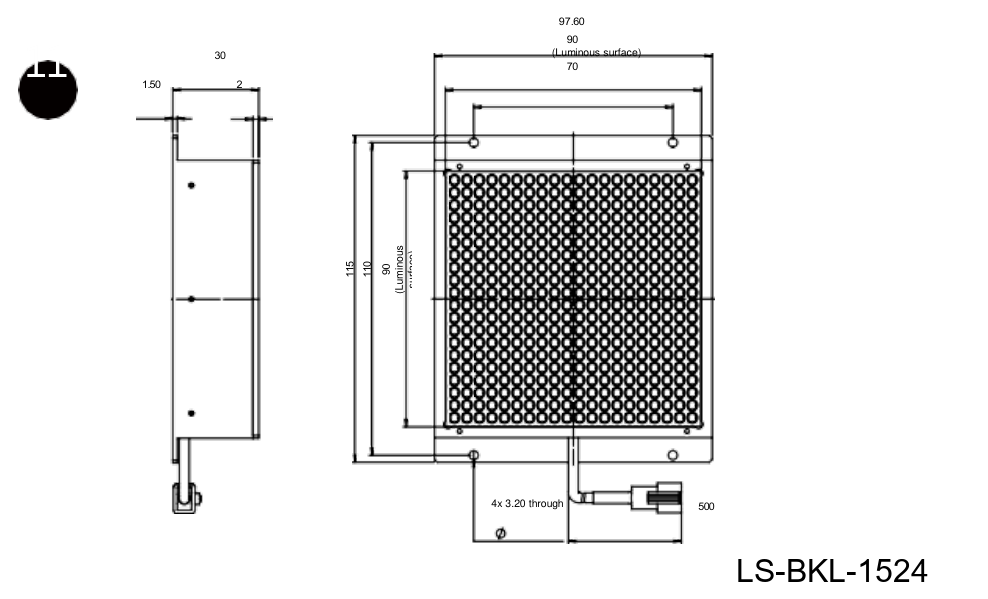

115 x 98 mm non-standard surface lights (LS-BKL-1524)
Model LS-BKL-1524
- Emitting area90 x 90 mm
- Voltage24 V DC (12 V on request)
- TypeStandard
- Length115 mm
$179.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Non-standard (tailor-made) lights listed in the catalog's non-standard series table.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1524 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting surface (mm) | 90 x 90 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 14 |
| Power white/blue/green (W) | 15 |
Mechanical
| Length (mm) | 115 |
|---|---|
| Width (mm) | 98 |
| Height (mm) | 30 |
| Mounting | 4 x dia. 3.2 through holes |
| Shipping weight | 0.55 kg |
Other models in the Non-standard surface lights (LS-BKL-S135) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1521 | 12 x 9 mm · 24 V DC (12 V on request) | $139.00 | Ships in 2-3 weeks | View |
| LS-BKL-1522 | 12 x 11 mm · 24 V DC (12 V on request) | $139.00 | Ships in 2-3 weeks | View |
| LS-BKL-1525 | 290 x 18 mm · 24 V DC (12 V on request) | $139.00 | Ships in 2-3 weeks | View |
| LS-BKL-1523 | U-shape: arms 22 and 17 wide, 63 high · 24 V DC (12 V on request) | $159.00 | Ships in 2-3 weeks | View |
| LS-BKL-1526 | 24 V DC (12 V on request) · Standard | $439.00 | Ships in 2-3 weeks | View |
| LS-BKL-1527 | 24 V DC (12 V on request) · Standard | $599.00 | Ships in 2-3 weeks | View |
