Backlights

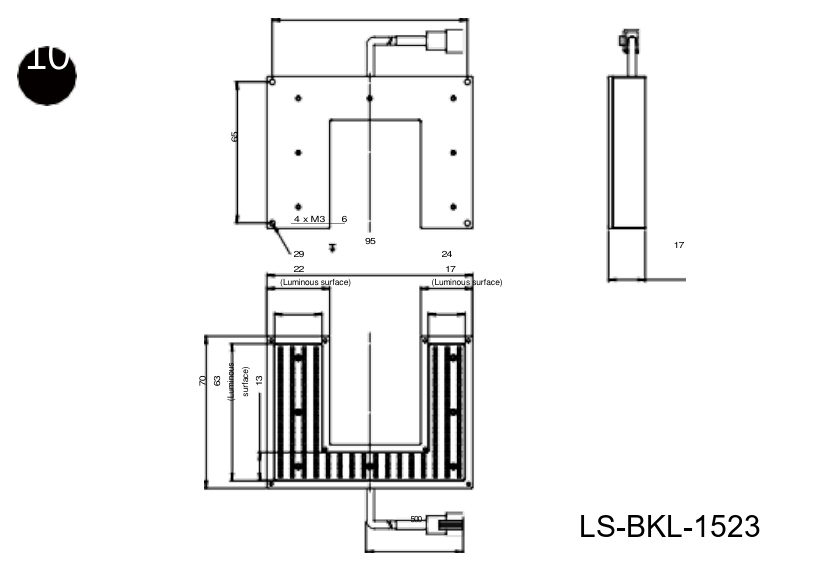

95 x 70 mm non-standard surface lights (LS-BKL-1523)
Model LS-BKL-1523
- Emitting areaU-shape: arms 22 and 17 wide, 63 high
- Voltage24 V DC (12 V on request)
- TypeStandard
- Length95 mm
$159.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Non-standard (tailor-made) lights listed in the catalog's non-standard series table.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1523 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting surface (mm) | U-shape: arms 22 and 17 wide, 63 high |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 2.8 |
| Power white/blue/green (W) | 3.5 |
Mechanical
| Length (mm) | 95 |
|---|---|
| Width (mm) | 70 |
| Height (mm) | 17 |
| Mounting | 4 x M3 threaded, depth 6 |
| Shipping weight | 0.30 kg |
Other models in the Non-standard surface lights series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1521 | 12 x 9 mm · 24 V DC (12 V on request) | $139.00 | 4 in stock | View |
| LS-BKL-1522 | 12 x 11 mm · 24 V DC (12 V on request) | $139.00 | 3 in stock | View |
| LS-BKL-1525 | 290 x 18 mm · 24 V DC (12 V on request) | $139.00 | 3 in stock | View |
| LS-BKL-1524 | 90 x 90 mm · 24 V DC (12 V on request) | $179.00 | 4 in stock | View |
| LS-BKL-1526 | 24 V DC (12 V on request) · Standard | $439.00 | 2 in stock | View |
| LS-BKL-1527 | 24 V DC (12 V on request) · Standard | $599.00 | 3 in stock | View |
